Siglent F504FS 9 GHz N-Female type VNA calibration kit
€1,269.00
Siglent F504FS N-Female economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

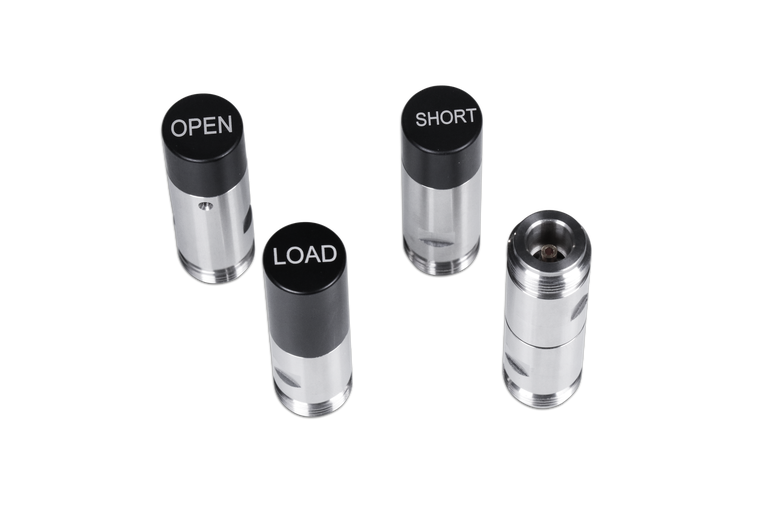

Siglent's F504FS is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 Ω termination, an open load, a short load, and a through adaptor. The F504FS performance specifications are very similar to the Keysight 85032F mechanical calibration kit and it can be used as an approximate replacement of 85032F, or use the STD of 85032F in network analyzers.
| Type | Connector | Specification |
|---|---|---|
| Open | N-Female | DC – 9 GHz, Phase Deviation ≤ ± 0.8° |
| Short | N-Female | DC – 9 GHz, Phase Deviation ≤ ± 0.8° |
| Load | N-Female | DC – 9 GHz, SWR ≤ 1.032 (Return Loss ≥ -36 dB |
| Through | N-Female to N-Female | DC – 9 GHz, SWR ≤ 1.06 (Return Loss ≥ -31 dB), 9 – 18 GHz, SWR ≤ 1.1 (Return Loss ≥ -26 dB), Insert Loss ≤ 0.15 dB, Delay= 136.2 ps |
Specifications :
| Impendence | 50 Ω |
| Power | 1 W |
| Interfaces Standard | IEC 60169-16 |
| Durability | > 2000 |
| Torque | 1.35 Nm |
| Spanner | 19 mm |
| Temperature | -15 ℃ ~ + 35 ℃ |
