Siglent F504MS 9 GHz N-Male type VNA calibration kit
€1,269.00
FREE shipping

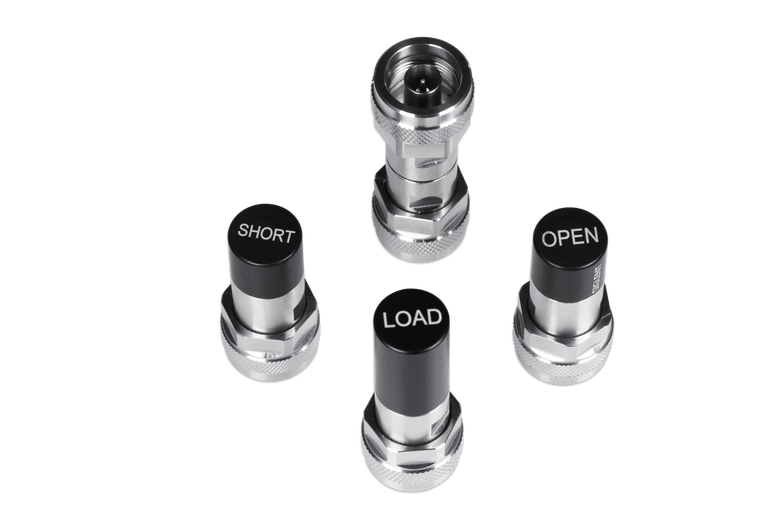

Siglent F504MS N-Male economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.
Siglent's F504MS is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 Ω termination, an open load, a short load, and a through adaptor. The F504MS performance specifications are very similar to the Keysight 85032B mechanical calibration kit and it can be used as a replacement of 85032B.
| Type | Connector | Specification |
|---|---|---|
| Open | N(Male) | DC – 9 GHz, Phase Deviation* ≤ ± 0.8° |
| Short | N(Male) | DC – 9 GHz, Phase Deviation* ≤ ± 0.8° |
| Load | N(Male) | DC – 9 GHz, SWR ≤ 1.032 (Return Loss ≥ -36 dB) |
| Through | N-Male to N-Male | DC – 9 GHz, SWR ≤ 1.06 (Return Loss ≥ -31 dB), 9 – 18 GHz, SWR ≤ 1.1 (Return Loss ≥ -26 dB), Insert Loss ≤ 0.2 dB, Delay= 197.1 ps |
Specifications :
| Impendence | 50 Ω |
| Power | 1 W |
| Interfaces Standard | IEC 60169-16 |
| Durability | > 2000 |
| Torque | 1.35 Nm |
| Spanner | 19 mm |
| Temperature | -15 ℃ ~ + 35 ℃ |
