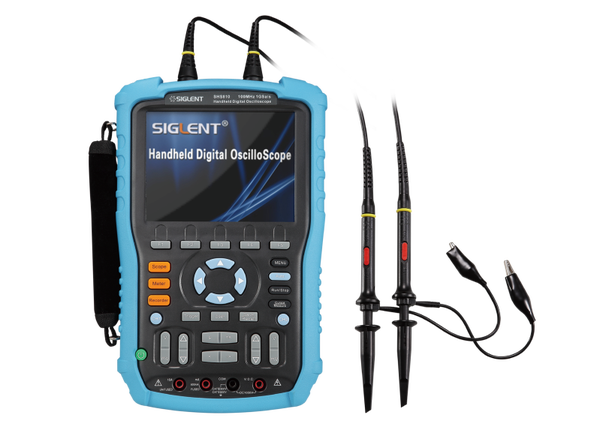

Siglent SHS806 60MHz Handheld Digital Oscilloscope

€399.00
Siglent SHS806 60MHz Handheld Digital Oscilloscope

Siglent SHS806 60MHz Handheld Digital Oscilloscope

€399.00

The Siglent SHS806 Dual Channel 60Mhz handheld oscilloscope provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions all in one package.

High performance oscilloscope

Channel math functions include add, subtract, multiply, divide, FFT.
Digital filter functions: LP, HP, BP, BR

Comparison of edge adjusting range under 1KHz pulse signal

EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

Key Features:

  • High precision multimeter

    • 6000 count display
    • Accurate measurement of DCV, ACV, DCI, ACI
    • Accurate measurement of Resistance, Diode, Capacitance, Continuity

    Trend plot

    • 32 measurement trend plot analyzer
    • Scope: 800 k points capacity, more than 24 hours recording time
    • Meter: 1.2 M points capacity 9320 hours recording time at 0.05 Sa/s

Digital multimeter

3 1/2 digit display.

  1. Measures DCV, ACD, DCI, ACI, Resistance, Diode Test, Capacitance, Continuity

Accessoires Included:

1 x Siglent SHS806 Handheld Oscilloscope

2 x 60 MHz Oscilloscope probes
1 x Multimeter probes set
1 x Power adapter / charger
1 x USB Cable
1 x Quick Start Guide

Models: SHS806 SHS810 SHS820
Bandwidth 60MHz 100MHz 200MHz
Rise Time ≤5.8ns ≤3.5ns ≤1.7ns
Input Impedance 1MΩ±2%, 18pf±3pf Input Impedance Input Impedance
Real Time Sampling Rate Single Channel: 1GSa/s, Real Time Sampling Rate Real Time Sampling Rate
Double Channels: 500MSa/s 500MSa/s Double Channels: 500MSa/s Double Channels: 500MSa/s
Equivalent Sampling Rate 50GSa/s Equivalent Sampling Rate Equivalent Sampling Rate
Time Base Range 5 ns/ div – 50s/ div 2.5 ns/ div – 50s/ div 5 ns/ div – 50s/ div
Scan Range 100ms/ div ~ 50s/ div Scan Range Scan Range
Vertical Sensitivity 2mV/div – 100V/div(1-2-5 step) Vertical Sensitivity Vertical Sensitivity
Vertical Resolution 8 bits Vertical Resolution Vertical Resolution
Trigger Types Edge, Pulse, Video, Slope, Alternative Trigger Types Trigger Types
Frequency Counter 6 bits Frequency Counter Frequency Counter
Connection USB Device, USB Host Connection Connection
Math +, -, * , /, FFT Math Math
Oscilloscope Trend Plot 800K points Oscilloscope Trend Plot Oscilloscope Trend Plot
