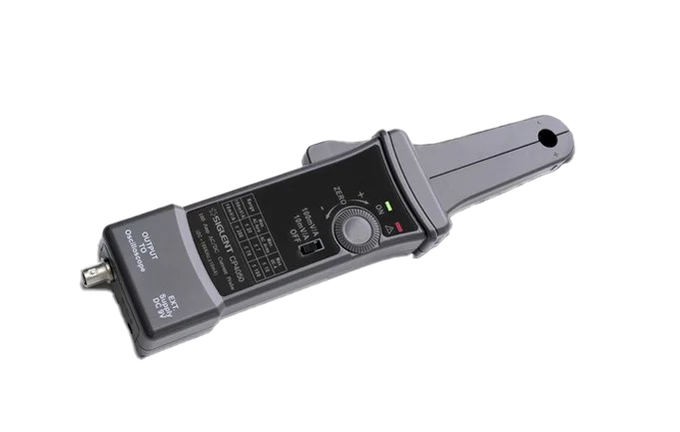

Siglent CP4050 1 MHz 140 Amp Current Probe
The Siglent CP4050 is a high-performance current probe designed for accurate and reliable measurement of AC and DC currents. With a wide bandwidth of up to 1 MHz and a peak current measurement capability of 140 A, this probe is ideal for various industrial and engineering applications. Its precision and versatility make it a valuable tool for professionals in power electronics, motor drives, and circuit design.
140 A AC/DC current probe, DC–1 MHz
The CP4050 is the fast one in the CP4000 family: DC to 1 MHz with a 350 ns rise time, three times the bandwidth of anything else in the range. It also has the most sensitive output of the family at 500 mV/A, resolving from 20 mA, while still carrying 140 A peak.
The output is a voltage on a plain BNC at a stated millivolts per amp, so it works with any oscilloscope of any brand — and with a multimeter through a BNC-to-banana adapter. A slide switch picks the range, a knob nulls the residual magnetism in the core before you measure, and the supplied 9 V adapter powers it. Nothing to configure, nothing proprietary.
What it does well
The things that decide whether a current measurement can be trusted.
True AC and DC
A Hall-effect core reads direct current as well as alternating, so a DC bus, a battery discharge or the standing current in a supply rail shows up as a real level — not a signal an AC-only clamp would miss entirely.
Works with any oscilloscope
Plain BNC output at 500 mV/A or 50 mV/A. Set the channel to match and read amps straight off the screen. No proprietary bus, no scope-brand lock-in.
1 MHz, and 350 ns rise time
Enough to follow switch-node and inductor current in a real switch-mode supply, not just the mains-frequency envelope. This is where a current probe stops being a meter replacement and becomes a design tool.
500 mV/A resolves from 20 mA
Ten times the sensitivity of the CP4070 range. Small ripple and standby currents are real traces, not noise.
Zero before you measure
Clamping around iron leaves a remanent field that offsets every later DC reading. The zero adjustment nulls it in a second — the step that decides whether a DC current measurement can be trusted.
Rated for mains work
300 V CAT III · 600 V CAT II, with jaws that close over conductors up to 10.3 mm.
Key specifications
- DC–1 MHz (−3 dB), rise time 0.35 µs
- 50 Arms continuous · 140 A peak
- Ranges 500 mV/A and 50 mV/A
- Jaws accept conductors up to 10.3 mm
- Powered by the supplied 9 V adapter
- Plain BNC output — any oscilloscope, any brand
- Also reads on a multimeter with a BNC-banana adapter
- 300 V CAT III · 600 V CAT II
Application examples
Switch-mode supply development
Primary switch, inductor and output current with the bandwidth to see the edges that carry the losses.
Power-factor and harmonic work
1 MHz covers the fundamental and a long way into the harmonics that shape a real current waveform.
Ripple and small-signal current
The 500 mV/A range resolves from 20 mA, so output ripple current is measurable rather than inferred.
Inrush with detail
140 A of headroom, and enough speed to show the shape of the first few microseconds rather than an envelope.
Specifications
| Bandwidth | DC–1 MHz (−3 dB) |
|---|---|
| Rise time | 0.35 µs |
| Maximum continuous current | 50 Arms |
| Peak current | 140 A |
| Range switch | 500 mV/A and 50 mV/A |
| DC accuracy | ±3% ±20 mA at 500 mV/A (20 mA–14 A peak) ±4% ±200 mA at 50 mV/A (200 mA–100 A peak) ±15% max at 50 mV/A (100–140 A peak) |
| Power supply | DC 9 V adapter (supplied) |
| Maximum rated voltage to earth | 300 V CAT III · 600 V CAT II |
| Maximum conductor size | 10.3 mm |
| Output | BNC |
| Cable length | 100 cm |
| Weight | 310 g |
Taken from the SIGLENT Probe Data Sheet. Errors and omissions excepted; specifications may change without notice.
In the box
- Current probe
- 9 V DC adapter
- Instruction manual
