Siglent N-SMA-6L N male to SMA male, 6 GHz 0.7m

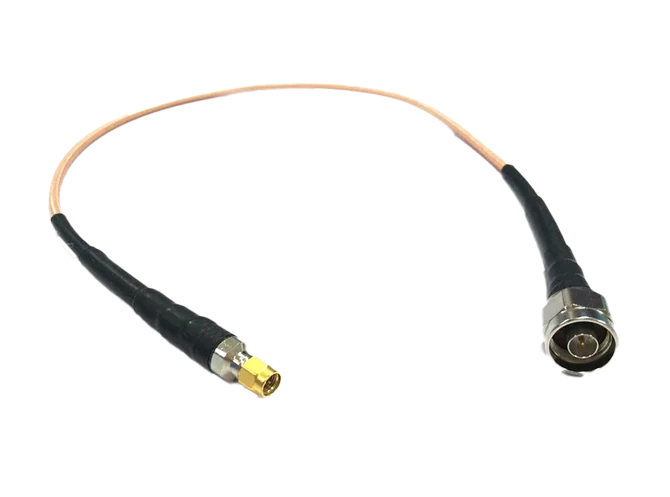

The N-SMA-6L is a 700 mm 50 Ω test lead, N male on the instrument end and SMA male on the device end, specified from DC to 6 GHz.
N male to SMA male, specified to 6 GHz
The N-SMA-6L is a 700 mm 50 Ω test lead, N male on the instrument end and SMA male on the device end, specified from DC to 6 GHz.
This is the most-used shape of RF cable there is: the instrument speaks N, the device speaks SMA. Filters, amplifiers, evaluation boards and antennas overwhelmingly terminate in SMA female, and this cable mates with them directly. Its 6 GHz ceiling covers the SSA3000X and SVA1000X families completely.
At a glance
- Connector 1N male
- Connector 2SMA male
- FrequencyDC – 6 GHz
- Impedance50 Ω
- Length0.7 m
Order code N-SMA-6L · supplied by SIGLENT
What it is for
Connecting a filter or amplifier
Most RF components present an SMA female connector. The SMA male end of this cable mates with them with nothing in between.
Reaching an evaluation board
Development boards almost universally use SMA. This is the cable that gets an analyser onto one.
Half of a two-cable measurement
For a tracking-generator sweep you need two leads. A pair of these covers both paths, with matched loss.
Specifications
| Parameter | Value |
|---|---|
| Connector 1 | N male |
| Connector 2 | SMA male |
| Frequency range | DC – 6 GHz |
| Impedance | 50 Ω |
| Length | 0.7 m |
Siglent publishes connector, bandwidth and length for this part. Detailed figures such as VSWR and insertion loss are not published for it — if your application depends on them, ask us and we will request them from the factory.
Instruments it connects to
The N male end mates with the RF port on these Siglent instruments — each port taken from that instrument’s own datasheet.
- SSA3000X
- SSA3000X Plus
- SSA3000X-R
- SVA1000X
- SSG3000X
- SSG5000X
- SNA5002A / 5012A / 5004A / 5014A
Not sure which port your instrument has? The RF cables and adaptors page carries the full table.
Other cables in the range
Is this the right cable for your setup?
Tell us the instrument and the device you are connecting, and we will confirm the interface and the bandwidth you need before you order. We are the official Siglent distributor for the European Union, and we also build assemblies to length and connector on request.
