Siglent SNA6000-PM Pulse measurement option

€5,735.00

The Siglent SNA6000-PM Pulse measurement license option for the SNA6000A series Vector Network Analyzer.

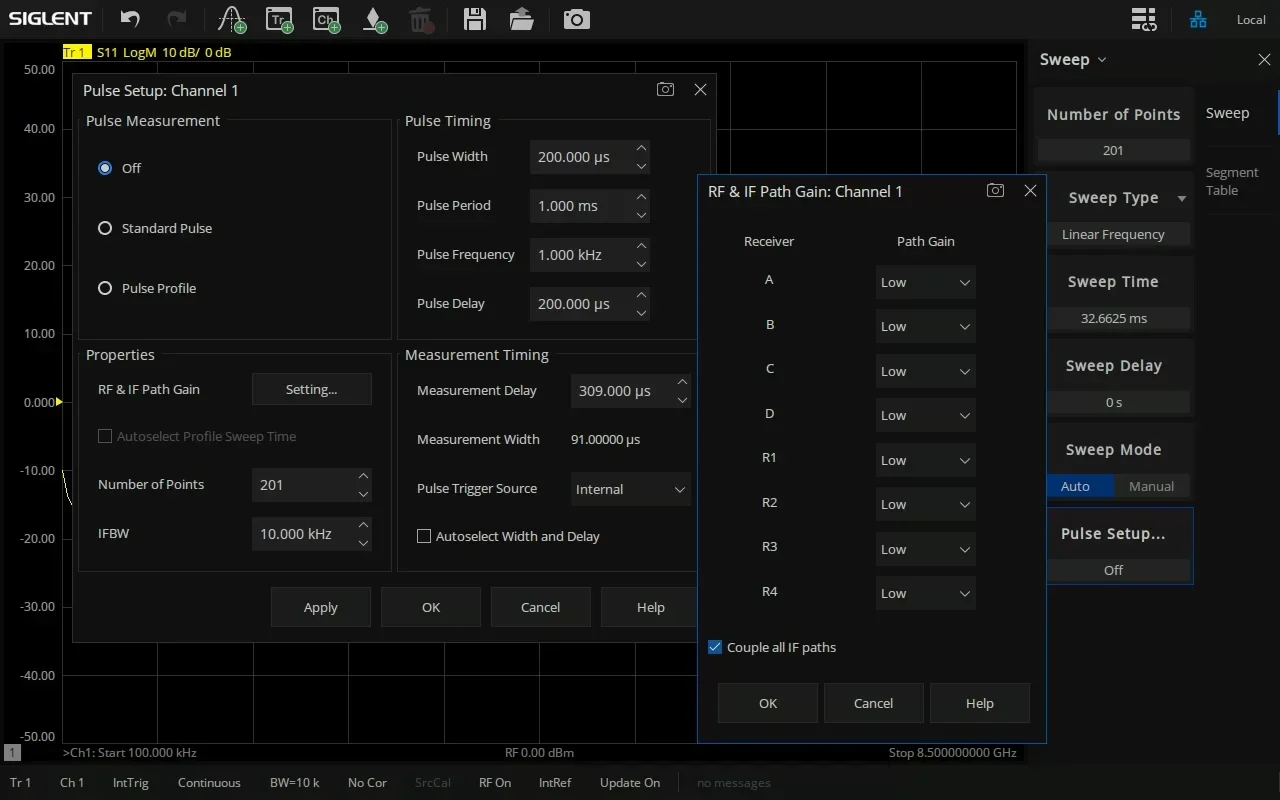

The SNA6000-PM Pulse Measurement option for the SNA6000A series vector network analyzers enables users to perform pulse measurements on devices under test (DUT). This option is specifically designed for evaluating the performance of devices when subjected to pulsed signals. Key features include:

  1. Pulse Timing Control: Provides precise control over pulse timing, including pulse width, period, and delay settings.
  2. Pulse Signal Analysis: Measures key parameters such as rise time, fall time, pulse width, and timing jitter.
  3. Average and IF Bandwidth Settings: Optimizes measurement settings to accurately capture pulsed signals, even those with fast transitions or narrow widths.
  4. RF & IF Path Gain Control: Allows users to adjust gain for the RF and IF paths during pulse measurements.

This option is ideal for testing devices that are designed to operate with pulsed signals, such as radar and communication systems
