SDS6000A-RMK — rack mount kit for the SDS6000A, SNA5000A and SSA5000A
A 19-inch, 7U rack mount kit for one Siglent SDS6000A oscilloscope, SNA5000A vector network analyser or SSA5000A spectrum analyser.

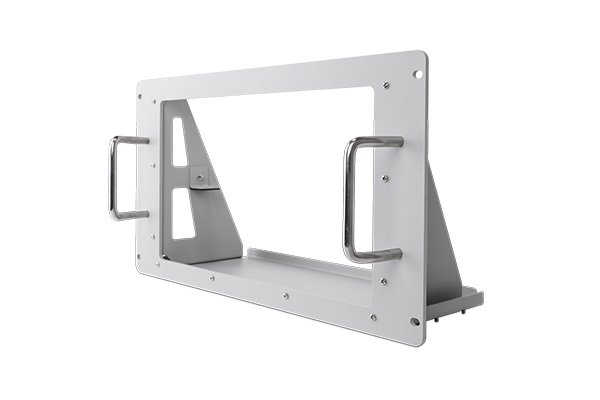

The three instruments share one front format — the SDS6000A is 379 × 288 mm at the front, the SNA5000A 378 × 284 mm — so Siglent names one kit for all of them. The instrument sits in a full-width panel with a handle at each side and a support bracket behind each side, and its touch screen, controls and connectors stay fully usable through the opening.
Plan for 7U (311 mm) of rack space. Siglent’s price list and the SDS6000A data sheet write the code as SDS6000-RMK — it is the same kit.
What it fits
One oscilloscope series and two analyser series, one front format. Each card links to the series so you can check your exact model.
SDS6000A oscilloscopes
SDS6054A · SDS6104A · SDS6204A
The instrument the kit is named after: 500 MHz to 2 GHz, 379 × 288 × 159 mm, 5.5 kg.
SNA5000A vector network analysers
SNA5002A · SNA5004A · SNA5012A · SNA5014A · SNA5022A · SNA5032A
Same front format — 378 × 284 × 126 mm — so Siglent’s price list names the same kit.
SSA5000A spectrum analysers
SSA5083A · SSA5085A
Listed for this kit in Siglent’s price list, together with the SNA5000A.
The SDS7000A is a bigger chassis and takes the SDS7000A-RMK; the SDS5000X takes the 6U SDS5000X-RMK; the SSA3000X family and the SVA1000X take the SSA-RMK. The SDS6000L is a 1U/2U rack instrument on its own and needs no kit. The table further down lists them.
Why rack a bench instrument
The screen where you look
The SDS6000A and the SNA5000A carry large touch screens meant to be read and operated. At 7U in a rack the display sits in front of you instead of on a bench below the rack.
Cables stop moving it
Four probes, an RF test-port cable set or a calibration kit pull a bench instrument around more than people expect. Fixed in the rack, it stays exactly where it was set up.
Part of the test system
In a rack the analyser or oscilloscope sits with the generator, the supply and the device under test, with the cabling dressed once and LAN remote control for the whole set.
Handles and brackets for the lift
The panel carries a handle each side and a bracket behind each side of the panel, so the assembly is lifted into the rails by the frame rather than by the instrument’s bezel.
Specification
| Type | 19-inch rack panel with an opening for one instrument, a handle at each side and a support bracket behind the panel on each side |
| Rack height | 7U (311 mm) — Siglent’s accessory page and price list |
| Instruments per kit | One |
| Fits | SDS6000A oscilloscopes; SNA5000A vector network analysers; SSA5000A spectrum analysers |
| Instrument size | SDS6000A: 379 × 288 × 159 mm, 5.5 kg · SNA5000A: 378 × 284 × 126 mm (data sheets) |
| Front panel | Screen, controls, connectors, USB ports and power switch stay accessible through the opening |
| Product code | SDS6000A-RMK — written SDS6000-RMK in the price list and the SDS6000A data sheet; the same kit |
From Siglent’s accessory page, the 2026 price list and the SDS6000A and SNA5000A data sheets.
Not the right kit? Oscilloscope and analyser rack kits
The kits are split by chassis size, and the names are close. Find your instrument here rather than guessing.
| Kit | Fits | Height | Price |
|---|---|---|---|
| SDS1X-E-RMK | SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD | 4U | €125 |
| SDS2000X-RMK | SDS2000 / SDS2000X / SDS2000X Plus | 6U | €129 |
| SDS2000HD-RMK | SDS1000X HD, SDS2000X HD, SDS3000X HD | 6U | €225 |
| SDS5000X-RMK | SDS5000X | 6U | €309 |
| SDS6000A-RMK this kit | SDS6000A, SNA5000A, SSA5000A | 7U | €329 |
| SDS7000A-RMK | SDS7000A | — | €557 |
| SSA-RMK | SSA3000X, SSA3000X Plus, SSA3000X-R, SVA1000X | 6U | €135 |
Prices ex VAT. Siglent gives no rack height for the SDS7000A-RMK.
Questions about the SDS6000A-RMK
Which instruments does it fit?
Siglent’s accessory page names the SDS6000A oscilloscopes (SDS6054A, SDS6104A, SDS6204A). The EU price list adds the SNA5000A vector network analysers and the SSA5000A spectrum analysers, which share the same front format.
Is SDS6000A-RMK the same as SDS6000-RMK?
Yes. Siglent’s accessory page and our shop write SDS6000A-RMK; the price list and the SDS6000A data sheet write SDS6000-RMK. It is one kit at one price.
How much rack height do I need?
7U, i.e. 311 mm. The SDS6000A is 288 mm high including its feet, so the panel closes the space above and below it.
How many instruments go in one kit?
One. The kit is a full-width 19-inch panel with a single opening.
Does it fit the SDS6000L?
The SDS6000L is a 1U or 2U rack instrument on its own and needs no kit. This kit is for the bench-format SDS6000A.
Can I still use the touch screen and front connectors?
Yes. The instrument’s front sits in the opening of the panel, so the screen, keys and knobs, all inputs or test ports, the USB ports and the power switch remain accessible.
I have a different Siglent instrument. Which kit?
The kits are split by chassis size. The table above lists the oscilloscope and analyser kits; the cases & rack mounts page has a finder for every series.
