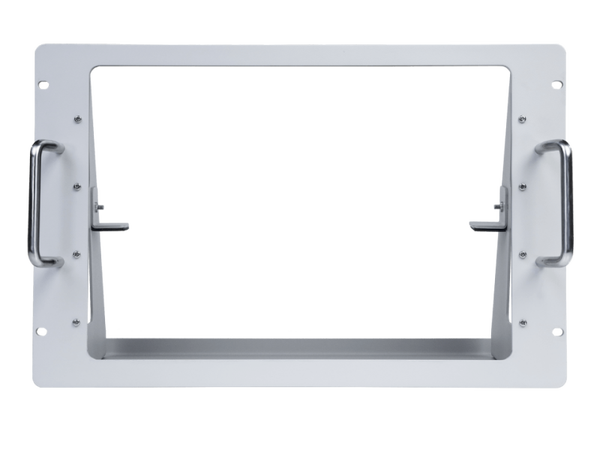

Siglent SDS7000A-RMK 19" rack mount kit for SDS7000A oscilloscopes
19-inch rack mount kit for the Siglent SDS7000A oscilloscopes (SDS7304A to SDS7804AP). One scope per kit, handles, front panel and inputs fully usable.
SDS7000A-RMK — rack mount kit for the SDS7000A oscilloscopes
A 19-inch rack mount kit for one Siglent SDS7000A oscilloscope — the 3 to 8 GHz, 12-bit series, including the SDS7604AP and SDS7804AP.

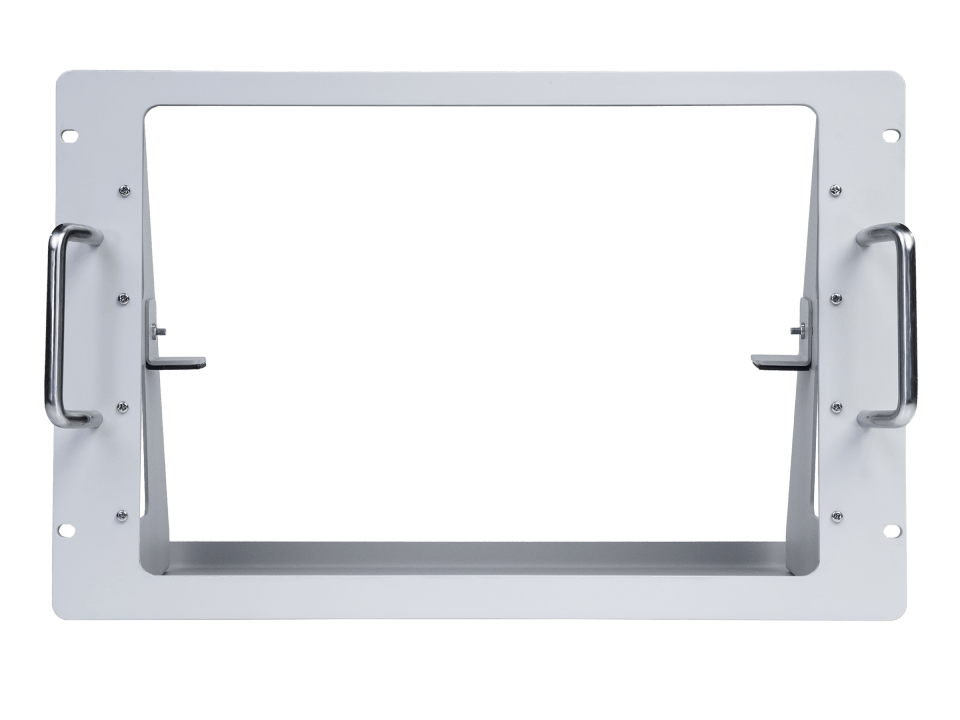

The SDS7000A is 444.5 mm wide, 334 mm high without its feet and 10.6 kg: the largest bench oscilloscope in the Siglent range, and the one most likely to live in a fixed compliance or characterisation setup. In the kit it sits in a full-width panel with a handle at each side and a support bracket inside each side of the opening, and its touch screen, controls and inputs stay fully usable.
Siglent does not publish a U-height for this kit. The oscilloscope alone is taller than 7U (311 mm), so reserve 8U and ask us to confirm before you fix the rack layout.
What it fits
Every SDS7000A model: the data sheet gives one set of dimensions for all six, and lists this kit as their rack mount accessory. Each card links to the series page.
SDS7304A
3 GHz · 12-bit · 20 GSa/s
SDS7404A
4 GHz · 12-bit · 20 GSa/s
SDS7604A
6 GHz · 12-bit · 20 GSa/s
SDS7804A
8 GHz · 12-bit · 20 GSa/s
SDS7604AP
6 GHz · 20 GSa/s on all channels · 1 Gpts/ch
SDS7804AP
8 GHz · 20 GSa/s on all channels · 1 Gpts/ch
The SDS6000A is a smaller chassis and takes the 7U SDS6000A-RMK; the SDS5000X takes the 6U SDS5000X-RMK. The table further down lists every oscilloscope kit — check the series before you order.
Why rack an SDS7000A
10.6 kg stays put
The SDS7000A is the heaviest bench oscilloscope Siglent makes. In the kit it is carried by the panel and the side brackets, and it no longer moves when four probes and a cable dressing pull on it.
The screen at eye level
A large touch screen is meant to be read and touched. In a rack it sits in front of you instead of on a bench below you, which matters over a long compliance or debugging session.
Part of the test system
An 8 GHz scope usually lives in a fixed setup: compliance fixtures, a generator, a supply. In a rack the whole set is cabled once and driven over LAN.
Handles for the lift
The panel carries a handle each side, so the assembly goes into the rails by the frame, not by the oscilloscope’s bezel.
Specification
| Type | 19-inch rack panel with one opening for the oscilloscope, a handle at each side and a support bracket inside each side of the opening |
| Rack height | Not published by Siglent. The oscilloscope is 334 mm high without its feet, which is more than 7U (311 mm): reserve 8U (356 mm) and ask us to confirm before you fix the rack layout |
| Instruments per kit | One |
| Fits | SDS7000A series: SDS7304A, SDS7404A, SDS7604A, SDS7804A, SDS7604AP, SDS7804AP |
| Instrument size | 444.5 × 334 × 176.4 mm without feet (444.5 × 367 × 176.4 mm with feet), 10.6 kg net (data sheet) |
| Front panel | Screen, controls, channel inputs, USB ports and power switch stay accessible through the opening |
From Siglent’s accessory page, the 2026 price list and the SDS7000A data sheet. The 8U figure is our planning advice, not a Siglent specification.
Not the right kit? All oscilloscope rack kits
The kits are split by chassis size, and the names are close. Find your oscilloscope here rather than guessing.
| Kit | Fits | Height | Price |
|---|---|---|---|
| SDS1X-E-RMK | SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD | 4U | €125 |
| SDS2000X-RMK | SDS2000 / SDS2000X / SDS2000X Plus | 6U | €129 |
| SDS2000HD-RMK | SDS1000X HD, SDS2000X HD, SDS3000X HD | 6U | €225 |
| SDS5000X-RMK | SDS5000X | 6U | €309 |
| SDS6000A-RMK | SDS6000A, SNA5000A, SSA5000A | 7U | €329 |
| SDS7000A-RMK this kit | SDS7000A | — | €557 |
Prices ex VAT.
Questions about the SDS7000A-RMK
Which oscilloscopes does it fit?
The SDS7000A series: SDS7304A, SDS7404A, SDS7604A and SDS7804A, and the SDS7604AP and SDS7804AP. Siglent’s data sheet covers all six models and lists the SDS7000A-RMK as their rack mount kit.
How much rack height do I need?
Siglent does not publish a U-height for this kit. The oscilloscope itself is 334 mm high without its feet — more than 7U (311 mm) — so reserve 8U (356 mm) and ask us to confirm before you fix the layout.
How many oscilloscopes go in one kit?
One. The kit is a full-width 19-inch panel with a single opening.
Does it fit the SDS6000A or SDS5000X?
No. Those are smaller chassis and take the SDS6000A-RMK (7U) and the SDS5000X-RMK (6U).
Can I still use the touch screen and front connectors?
Yes. The oscilloscope’s front sits in the opening of the panel, so the screen, knobs and keys, all channel inputs, the USB ports and the power switch remain accessible.
Does the kit come with the rack rails?
Siglent describes it as a rack mount kit — the panel and its fittings. Rails or shelves that carry the weight in your cabinet are cabinet-specific; tell us the cabinet and we will advise.
I have a different Siglent oscilloscope. Which kit?
The kits are split by chassis size. The table above lists every oscilloscope kit; the cases & rack mounts page has a finder for every series.
Tell us the cabinet and we will confirm the height
Send us the oscilloscope model and the rest of the rack. We will confirm the kit, the rack units it needs and quote the complete set.
