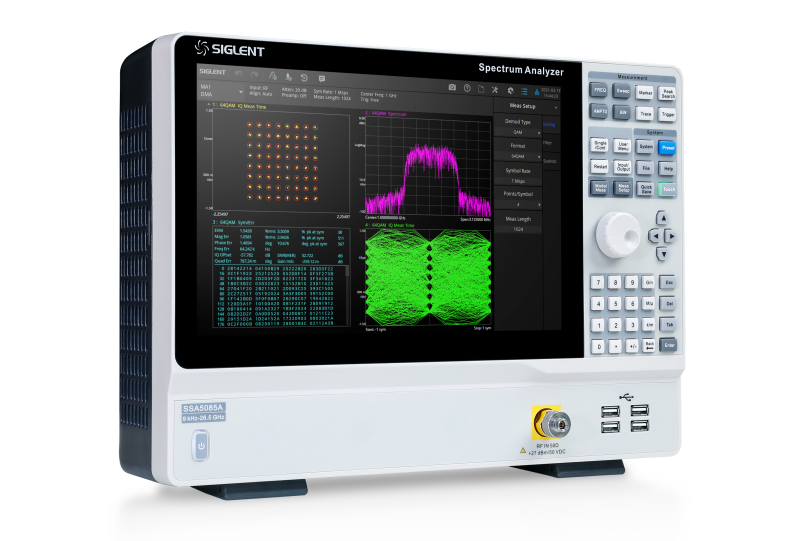

Siglent SSA5083A — 9 kHz to 13.6 GHz microwave spectrum analyzer
The Siglent SSA5083A is a flagship microwave spectrum analyzer covering 9 kHz to 13.6 GHz through a 2.92 mm input. With -105 dBc/Hz phase noise, a -165 dBm/Hz noise floor and a standard 20 dB preamplifier, it resolves close-in signals and weak spurs with ease. A 12.1-inch multi-touch display drives a full measurement platform — with optional real-time, modulation, Bluetooth, noise-figure and phase-noise analysis — and it is field-upgradeable to the full 26.5 GHz.
Product overview
The SSA5083A is Siglent's flagship microwave spectrum analyzer, covering 9 kHz to 13.6 GHz through a 2.92 mm input. With −105 dBc/Hz phase noise, a −165 dBm/Hz displayed average noise level and a standard 20 dB preamplifier, it resolves close-in signals and weak spurs that lesser analyzers miss — the basis for reliable signal-purity and spectral measurement. The SSA5083A is field-upgradeable to the full 26.5 GHz range (F5).
A large 12.1-inch multi-touch display with HDMI output drives a full measurement platform: optional 25/40 MHz real-time analysis, analog & digital modulation, Bluetooth, noise figure, phase noise, EMC and advanced measurements all activate as licences, so the SSA5083A grows with the most demanding RF and microwave work.
Built for the bench and for automation, the SSA5083A offers a +23 dBm maximum input, a −170 dBm reference level, RBW from 1 Hz to 10 MHz and swept or FFT sweep, with LAN, USB and an optional GPIB interface plus a full SCPI command set. An optional high-accuracy OCXO reference and a 7.2 µs 100% probability of intercept in real-time mode round out a genuinely capable microwave analyzer for 5G, radar, satellite, aerospace and advanced R&D.
Key highlights
9 kHz – 13.6 GHz
Microwave coverage from 9 kHz to 13.6 GHz through a 2.92 mm input, with a 20 dB standard preamplifier.
−105 dBc/Hz phase noise
Exceptional signal purity — −105 dBc/Hz at 1 GHz (10 kHz offset) resolves close-in signals and weak spurs.
−165 dBm/Hz DANL
A −165 dBm/Hz displayed average noise level and +11 dBm TOI give a very wide measurement dynamic range.
Real-time up to 40 MHz
Optional 25/40 MHz real-time analysis with 7.2 µs 100% POI — density, spectrogram, 3D and power-versus-time.
12.1" multi-touch + HDMI
A large 12.1-inch 1200×800 capacitive multi-touch display with HDMI output, mouse, keyboard and web control.
The widest measurement suite
Analog & digital modulation, Bluetooth, noise figure, phase noise, EMC and advanced measurements as options.
Core capabilities
Microwave spectrum to 26.5 GHz
Full 9 kHz – 26.5 GHz coverage through a 2.92 mm input with a standard 20 dB preamplifier, +23 dBm max input and −170 dBm reference level — with a field-upgradeable path from 13.6 GHz (F5).
Signal purity & sensitivity
−105 dBc/Hz phase noise at 1 GHz, a −165 dBm/Hz DANL and RBW down to 1 Hz reveal close-in signals and weak spurs that lesser analyzers miss — the basis for reliable spectral measurement.
Real-time analysis
Optional 25 MHz (RTA1) or 40 MHz (B40) real-time bandwidth with a 7.2 µs 100% POI and 60 dB real-time dynamic range captures brief, hopping and overlapping events as density, spectrogram, 3D or PvT.
A full measurement platform
Analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) modulation, Bluetooth LE/BR/EDR, noise figure (with NSD28), phase noise, EMC and advanced measurements — all add as licences.

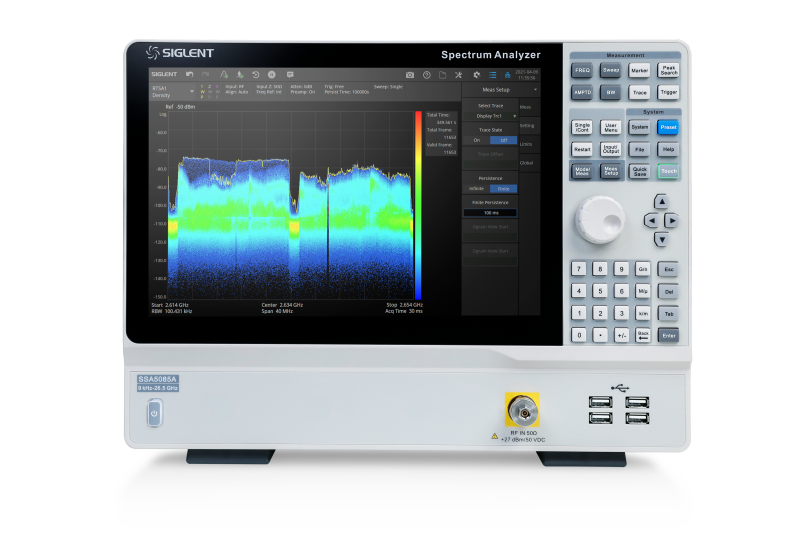

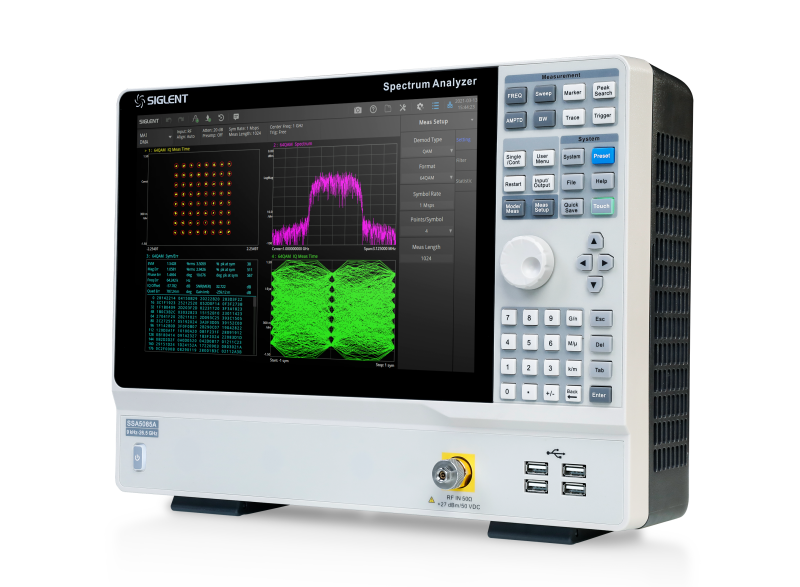

Front & rear panel

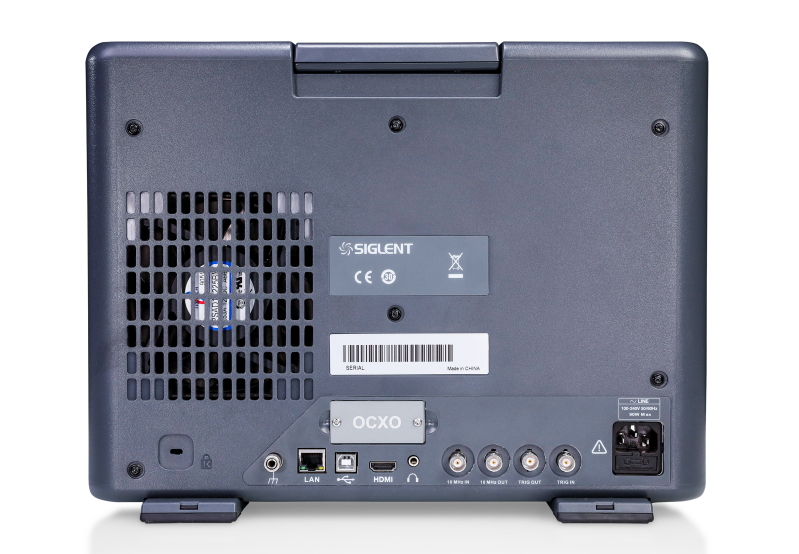

A 2.92 mm RF input, four USB ports and a 12.1-inch multi-touch display up front; clock, trigger, HDMI and control I/O plus an OCXO slot at the rear.
Connectivity
- RF input — 2.92 mm male, 50 Ω (front)
- 4× USB Host (front) — storage, mouse & keyboard
- USB Device (rear, USBTMC) — PC control & SCPI
- LAN — browser remote control & SCPI (VXI-11)
- HDMI video output (rear)
- 10 MHz reference clock in / out (rear)
- Trigger in / out · headphone / audio out
- OCXO slot (10M-OCXO-L option) · universal 100–240 V AC
Where it is used
5G & microwave
Signal, spurious and harmonic measurement up to 26.5 GHz for 5G, radar and microwave development.
Wireless & modulation
Analog, digital and Bluetooth signal analysis with EVM for communications design and validation.
Signal purity / phase noise
Dedicated phase-noise measurement for oscillators, synthesizers and low-jitter clock sources.
Noise figure
Y-factor noise-figure measurement of amplifiers, mixers and converters with the NSD28 and NF option.
EMC & pre-compliance
EMC and advanced-measurement modes for pre-compliance and spectral-emission testing.
R&D & production
A flagship bench analyzer for advanced R&D, aerospace/defense and high-end production test.
In the box
Every SSA5083A ships with a standard 20 dB preamplifier and the accessories below.

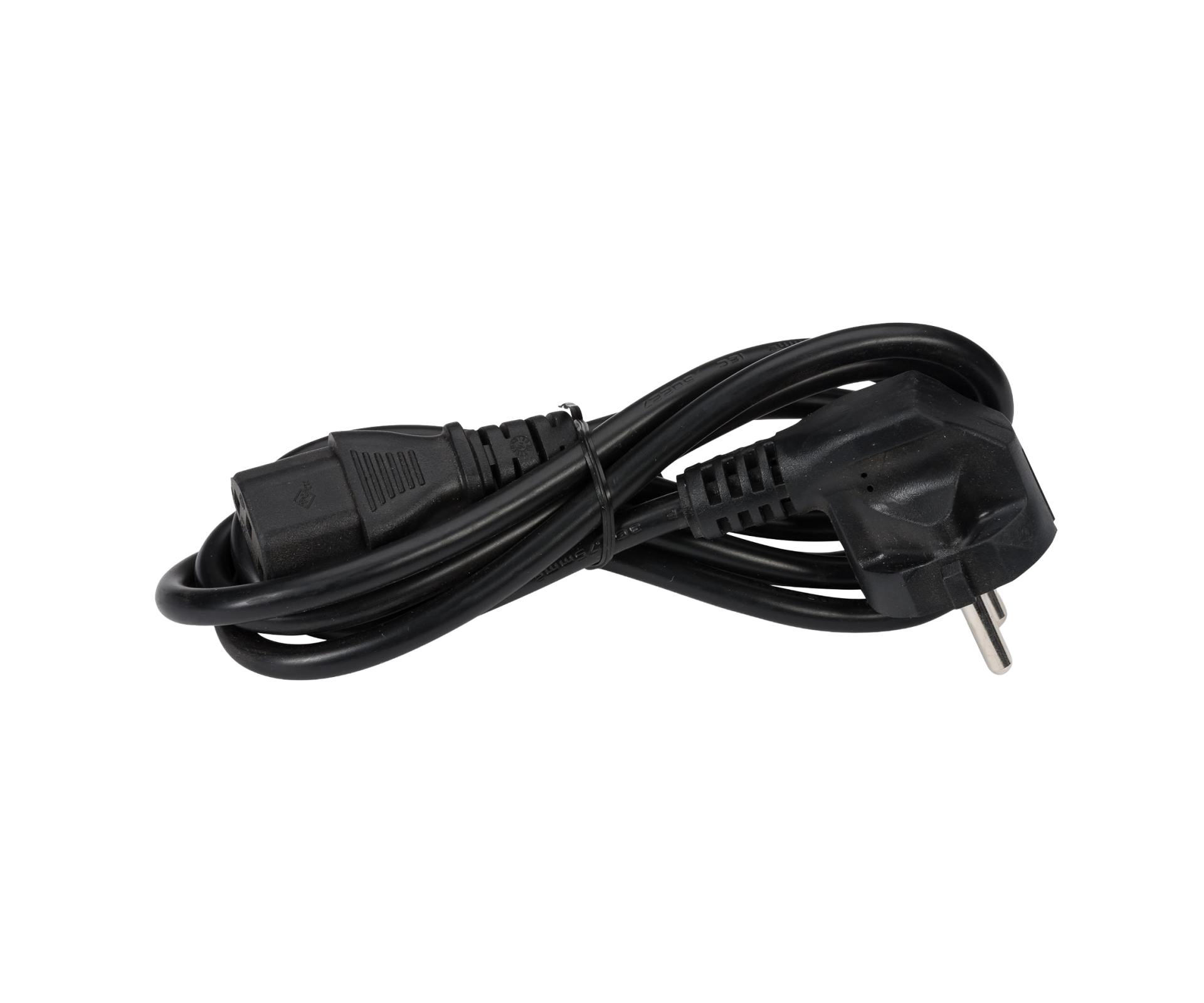

Region-specific mains lead (IEC C13)

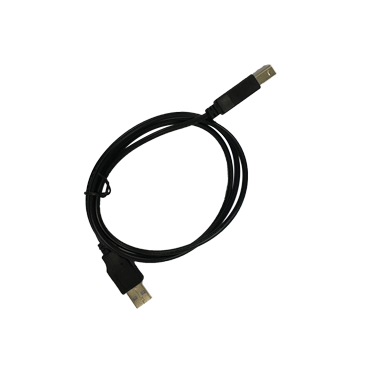

USB Type-A to Type-B for PC control

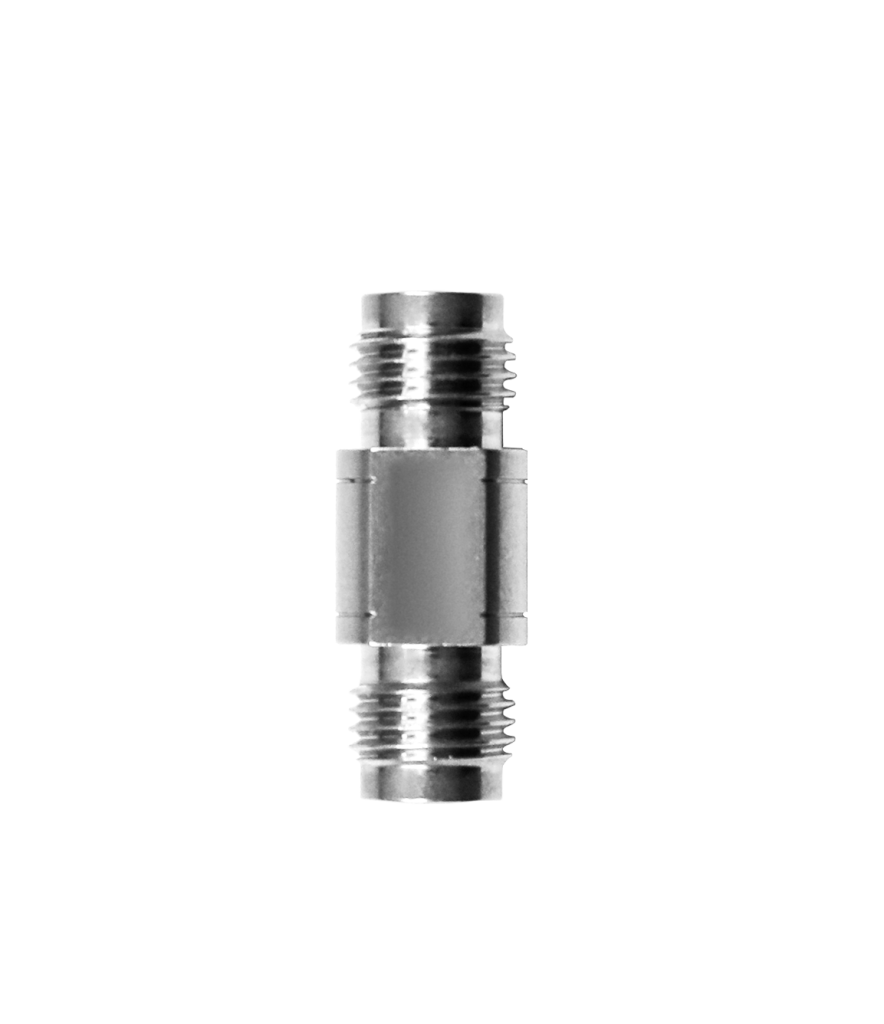

2.92 mm female-female through adapter, DC – 40 GHz

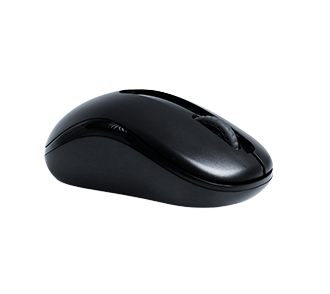

For fast on-screen setup & editing
Printed getting-started guide
Factory calibration certificate
Measurement options & upgrades
Extend the SSA5083A with real-time, modulation, Bluetooth, noise-figure, phase-noise and frequency-range options — most activated electronically. See the full SSA5000A licence page.
Lifts an SSA5083A to the full 26.5 GHz frequency range.
Activates 25 MHz real-time analysis — density, spectrogram, 3D and power-versus-time.
Widens the real-time analysis bandwidth from 25 MHz to 40 MHz.
CHP, ACPR, OBW, harmonic, TOI and spectrum-monitor measurements.
Bluetooth LE / BR / EDR signal measurement and analysis.
Y-factor noise-figure measurement (pairs with the NSD28 driver).
Dedicated phase-noise measurement mode for signal-purity work.
Drives an external calibrated noise source for noise figure (with SSA5000-NF).
High-stability 10 MHz OCXO reference — tighter frequency accuracy & locking.
Specifications
- Frequency range
- 9 kHz – 13.6 GHz
- RF input
- 2.92 mm male, 50 Ω
- Preamplifier
- 20 dB (nom.), standard, 100 kHz – 26.5 GHz
- Input attenuator
- 0 – 50 dB, 2 dB steps
- Reference level
- −170 dBm to +23 dBm, 1 dB steps
- Max. input
- +23 dBm CW · ±50 VDC
- Displayed average noise level
- −165 dBm/Hz (typ.)
- Phase noise
- −105 dBc/Hz @ 1 GHz, 10 kHz (typ.)
- Third-order intercept (TOI)
- +11 dBm (+15 dBm nom.)
- Resolution bandwidth (RBW)
- 1 Hz – 10 MHz, 1-3-10
- Real-time bandwidth (opt.)
- 25 MHz · 40 MHz (B40)
- 100% POI (real-time)
- 7.20 µs · 60 dB dynamic range
- Measurement modes
- Spectrum · real-time · modulation · phase noise · noise figure · pulse · EMC · advanced
- Modulation (opt.)
- AM/FM · ASK/FSK/PSK/MSK/QAM · Bluetooth LE/BR/EDR
- Sweep
- 1 µs – 6000 s · 201 – 10001 points · Swept & FFT
- Trigger / gating
- Free, video, external, periodic; gated LO/video/FFT
- Reference clock
- Internal; optional 10M-OCXO-L OCXO
- Detectors / traces
- Peak, sample, average, quasi-peak · multiple traces
- Display
- 12.1-inch TFT · 1200×800 · capacitive multi-touch · HDMI out
- Interfaces
- LAN · USB device · USB host · GPIB opt. · IF/audio out
- Remote control
- Built-in web server · SCPI (USB-TMC / VXI-11 / Socket)
- Power
- 100–240 VAC · 80 W max
- Dimensions (W×H×D)
- 378 × 284 × 126 mm
- Weight
- 7.4 kg
Specifications are guidance only — the official Siglent datasheet is the definitive reference. Software licences are delivered electronically and are excluded from the 14-day EU return right once the key has been issued.
Ready to order the SSA5083A?
In EU stock, shipped from the Netherlands with full warranty and expert support. Compare both models on the series page.
The SIGLENT SSA5083A has a real-time spectrum analysis capability,the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern R spectrum challenges, like channel power measurement, hopping frequency conflict channel, spectrum interference. Applications include broadcast monitoring/evaluation, cellular site, IoT, wlan and Bluetooth surveying, research and development, education, production, and maintenance.
Real Time Analysis Mode Multi-view and dimensions to monitor complex signals
Bluetooth Analysis
Bluetooth is widely used in various devices and application scenarios as a wireless communication technology. The measurement application follows the Bluetooth® RF test specification issued by Bluetooth SIG to calculate the measurement results, and automatically detects the protocol version of the signal for Bluetooth BR/EDR/LE with one-click measurements to help you design, evaluate and manufacture Bluetooth devices with confidence. Together with the new SigIQPro signal generation software and a SSG5000X-V generator, it forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, accelerating the process from signal generation to data to evaluation. The SSA5000A is helpful for users to troubleshoot flexibly in the laboratory and optimize RF design easily and quickly.
Phase Noise Measurement
A stable frequency source is a common need for many electronic devices and most RF equipment. Phase noise can be used to characterize the short-term frequency stability of these frequency sources. Siglent’s SSA5000A Spectrum analyzers now provide a one-button phase noise measurement. The SSA5000A features lower Display Average Noise Level (DANL) and phase noise ensuring the accuracy of your tests. The smaller resolution bandwidth avoids measuring both carrier power and noise power together, and the measurement results are automatically calculated and graphed. The use of a logarithmic scale for the horizontal coordinate gives both a wider frequency range and finer resolution when close to the carrier – smaller offsets tend to reflect the quality of the signal better than phase noise at larger frequency offsets.
SSA5083A Features :
- Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz
- 165dBm/Hz Displayed Average Noise Level(Typ.)
- -105dBc/Hz@1 GHz,10kHz offset SSB Phase Noise(Typ.)
- 25 MHz/40 MHz Analysis Bandwidth.
- 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT.
- Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
- Analog Modulation Analysis and Vector Digital Modulation Analysis.
- 12.1inch Multi-Touch Screen, HDMI output.
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
Noise Figure Measurement
Accurate measurement of noise figure is crucial in product development and manufacturing. In the field of research and development, high test accuracy can ensure high repeatability between design simulation and real measurement and help to find the noise sources that are not considered in the simulation process. In the field of production and manufacturing, higher test accuracy means that the index margin can be set smaller when setting and verifying the technical index of the device. The higher the technical index of the final product, the more competitive it will be in the market. Quantifying those unknowns depends on flexible tools that provide accurate, reliable results. The noise figure measurement function of SIGLENT SSA5000A provides engineers with a simple tool, which can quickly and effectively measure the noise figure with high accuracy. Engineers can characterize noise figure and gain of connectorized devices and system blocks with graph, meter, and table layouts, and support the measurement of noise factor, Y-factor, effective temperature, and hot/cold power density.
Standard Accessories
1 x USB cable
1 x Quick start
1 x Certificate of calibration
1 x Power cord
1 x 2.92mm Female to Female adapter ( 2.9F-2.9F-40A )
Optional Accessories / license keys:
Max Frequency update to 26.5 GHz Activation License
(SSA5000-F5)
40 MHz Real Time Bandwidth Activation License
(SSA5000-B40)
25 MHz Real Time Analysis Activation License
(SSA5000-RTA1)
SSA5000A Broadcast Measurement Kit Activation License (SSA5000-AMK)

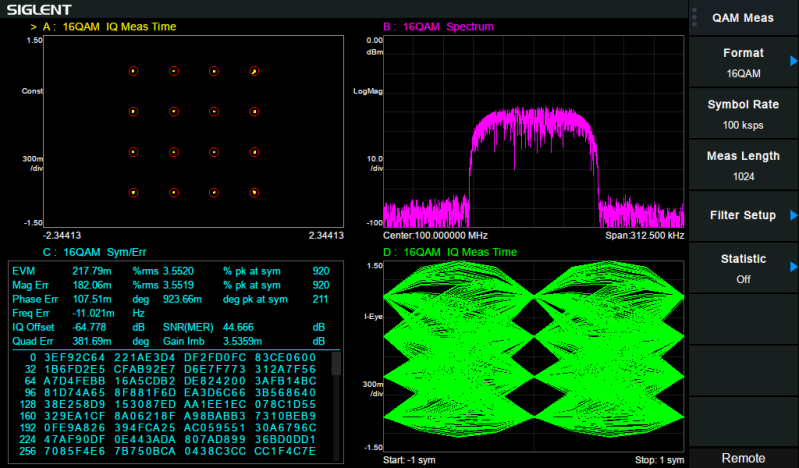

Analog modulation analysis (AM/FM) activation license (SSA5000A-AMA)
Digital modulation analysis activation license
(SSA5000A-DMA)
Pre-amplifier,
9 kHz ~ 13.6 GHz
Pre-amplifier,
9 kHz ~ 26.5 GHz
High accuracy clock source
NSD28 Noise source driver(hardware)
