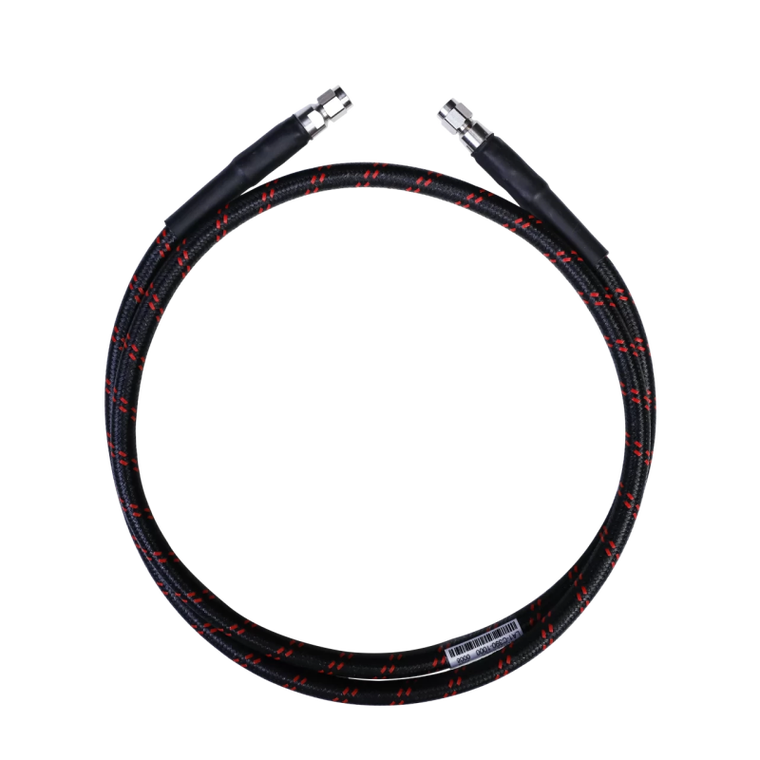

Siglent SMA-SMA-18L 100cm, 18 GHz SMA(M)-SMA(M) cable
The SMA-SMA-18L is a 1000 mm 50 Ω microwave test cable with an SMA male connector at both ends, specified from DC to 18 GHz.
SMA male to SMA male, specified to 18 GHz
The SMA-SMA-18L is a 1000 mm 50 Ω microwave test cable with an SMA male connector at both ends, specified from DC to 18 GHz.
SMA at both ends is the device-to-device cable: filter into amplifier, board into mixer, one stage of a chain into the next. It is also what you need when the instrument itself is SMA-ported rather than N-ported. Eighteen gigahertz is the standard ceiling for an SMA interface, so this cable runs the connector to its normal limit.
At a glance
- Connector 1SMA male
- Connector 2SMA male
- FrequencyDC – 18 GHz
- Impedance50 Ω
- Length1 m
Order code SMA-SMA-18L · supplied by SIGLENT
What it is for
Chaining components together
Filter to amplifier, amplifier to mixer — the connections that happen between devices rather than at the instrument.
SMA-ported instruments and boards
Where both ends of the path are already SMA, this avoids adaptors entirely.
The full SMA range
18 GHz is where a standard SMA connector tops out. Beyond it, move to the 26 GHz cable.
Specifications
| Parameter | Value |
|---|---|
| Connector 1 | SMA male |
| Connector 2 | SMA male |
| Frequency range | DC – 18 GHz |
| Impedance | 50 Ω |
| Length | 1 m |
Siglent publishes connector, bandwidth and length for this part. Detailed figures such as VSWR and insertion loss are not published for it — if your application depends on them, ask us and we will request them from the factory.
Instruments it connects to
The SMA male end mates with the RF port on these Siglent instruments — each port taken from that instrument’s own datasheet.
- SSA3000X
- SSA3000X Plus
- SSA3000X-R
- SVA1000X
- SSG3000X
- SSG5000X
- SNA5002A / 5012A / 5004A / 5014A
Not sure which port your instrument has? The RF cables and adaptors page carries the full table.
Other cables in the range
Is this the right cable for your setup?
Tell us the instrument and the device you are connecting, and we will confirm the interface and the bandwidth you need before you order. We are the official Siglent distributor for the European Union, and we also build assemblies to length and connector on request.
