Siglent SDG1032X 30MHz Function / Arbitrary Waveform Generator

€289.00

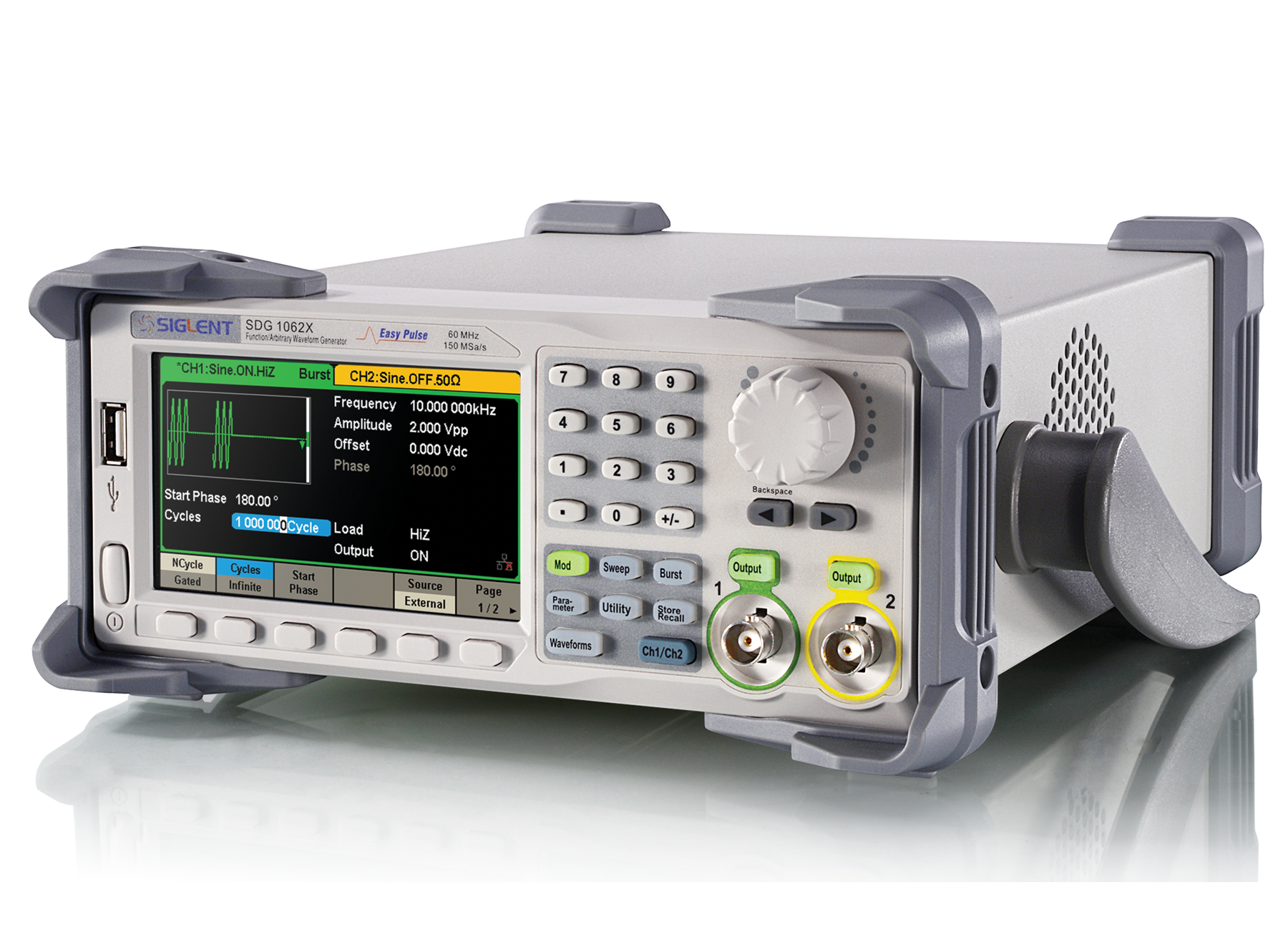

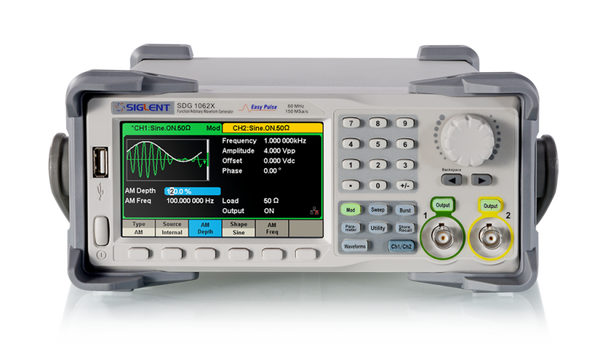

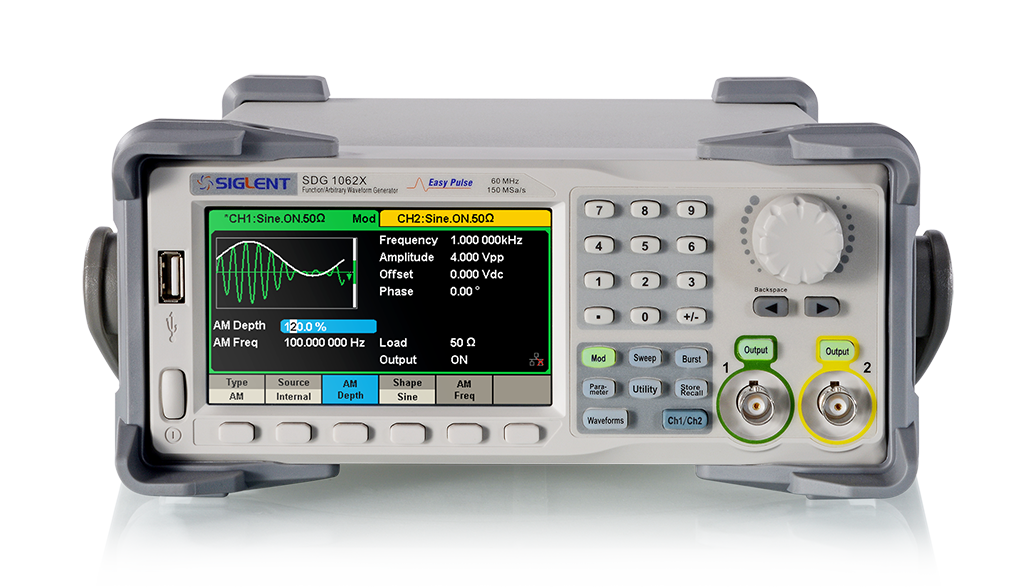

SIGLENT’s SDG1032X is a series of dual-channel function/arbitrary waveform generator with specifications that include up to 30 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution.

TrueArb Technology Architecture

With SIGLENT’s TrueArb technology, the generator retains the advantages of DDS technology while overcoming the serious weaknesses of DDS jitter and distortion. Because TrueArb technology generates arbitrary waveform in a point-by-point fashion, every data point is used to generate the output signal which has been stored in memory. Date points will not missed or repeated and arbitrary waveforms possess very low jitter (< 150ps).

Key Features:

  • Special circuit for Square wave function, can generate Square waves up to 30 MHz with jitter less than 300 ps+0.05 ppm of period
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonics Generator function
  • Waveform Combining function
  • High precision Frequency Counter
  • Standard interfaces: USB Host, USB Device (USBTMC), LAN  (VXI-11)
  • Optional interface: GPIB
  • 4.3” TFT-LCD display



Identical dual output-channels with high performance

Capable of outputting large signals at high frequencies. dual-channels, 20 Vpp amplitude can be guaranteed at up to 10 MHz.

Innovative EasyPulse Technology

When a Pulse waveform is generated by a common DDS generator, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Pulse waveforms.

Innovative TrueArb Technology

For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.

The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 30 MHz in frequency with low jitter. With these advantages, the SDG1032X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.

Accessoires Included:

1 x Siglent SDG1032X Arbitrary Function Generator
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

SDG1000X User Manual
PDF – 1,8 MB 4929 downloads
SDG Programming Guide
PDF – 3,3 MB 2624 downloads
SDG1000X Service Manual
PDF – 1,7 MB 2484 downloads
SDG1000X Data Sheet
PDF – 1,9 MB 4500 downloads
Easy Wave Software V 1 01 01 38 R 1
Archive – 4,5 MB 2213 downloads
