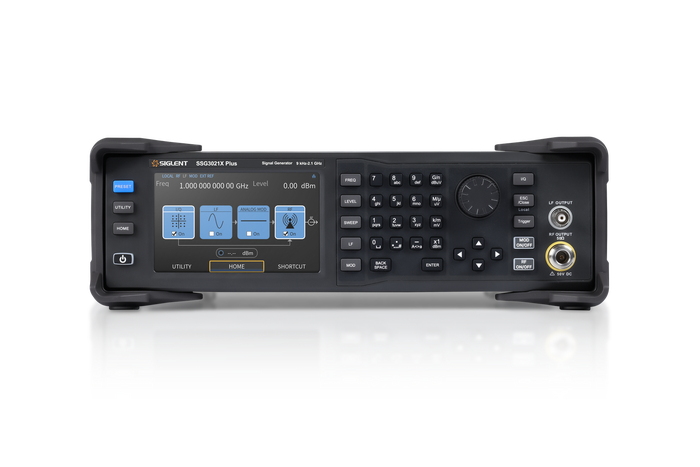

Siglent SSG3021X 9 kHz ~ 2.1 GHz Signal Generator

The Siglent SSG3021X is a powerful and versatile RF signal generator tailored to meet the demands of modern research, education, and manufacturing. Designed with precision and usability in mind, this state-of-the-art instrument offers a comprehensive suite of features, including a broad frequency range, excellent output purity, and extensive modulation capabilities. Whether you're conducting advanced R&D, developing wireless communication systems, or performing high-precision manufacturing tests, the SSG3021X provides the performance and flexibility you need to achieve accurate and repeatable results.

Engineered with cutting-edge technology, the SSG3021X is equipped with a sleek 5-inch capacitive touchscreen for intuitive operation, robust connectivity options, and seamless integration with external devices for extended functionality. From generating clean and stable RF signals to supporting sophisticated testing protocols like IQ modulation and pulse generation, this signal generator sets the standard for reliability and innovation in its class.

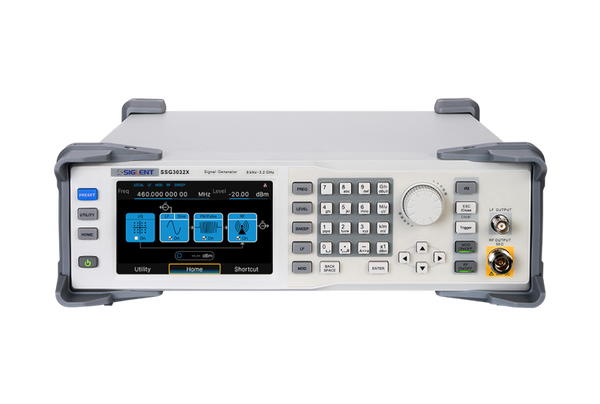

5 inch touch screen, keyboard and mouse support

The Siglent SSG3021X features a 5-inch capacitive touch screen for intuitive and efficient operation, providing a clear and responsive interface for setting parameters and navigating menus. Additionally, it supports keyboard and mouse input, allowing users to control the device with ease and flexibility, ensuring a seamless experience in both lab and field environments.

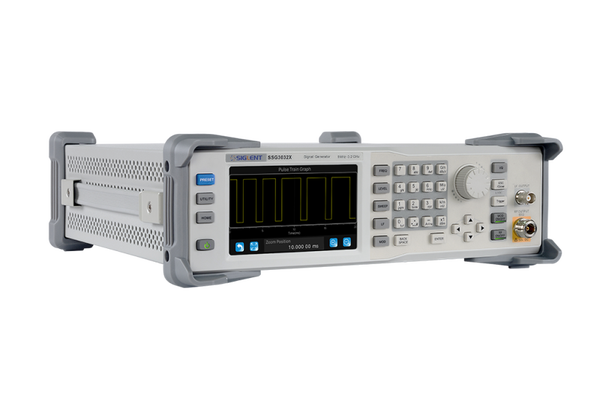

Double pulse modulation

The Siglent SSG3021X comes equipped with double pulse modulation capabilities, providing users with the ability to generate precise and repeatable dual-pulse signals. This advanced feature is especially valuable for applications requiring detailed timing and modulation control, such as radar system testing, communication device evaluation, and other RF equipment diagnostics. The double pulse modulation allows for precise adjustment of parameters like pulse width, delay, and repetition rate, ensuring high accuracy and flexibility in testing scenarios. With its enhanced functionality, this feature significantly broadens the range of applications where the SSG3021X can excel, making it an indispensable tool for engineers and researchers tackling complex testing and development projects.

Key Features

Frequency up to 2.1 GHz/3.2 GHz
0.01 Hz frequency setting resolution
Level output from -110 dBm to +13 dBm
Maximum level up to +20 dBm (typ.)
Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
Level accuracy ≤0.7 dB (typ.)
Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
Pulse modulation, on/off ratio ≥70 dBc
Pulse train Generator (option)
SSG3000X IQE: External IQ modulation with SDG6000X as the baseband IQ signal
USB-power meter measurement kit
5 inch TFT capacitive touch screen, Mouse and keyboard supported
Web Browser Remote Control on PC and mobile Terminals
Standard interface include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Advanced Capabilities:

External IQ Modulation: When paired with the Siglent SDG6000X series as the baseband generator, the SSG3021X can generate IQ modulated signals.
Pulse Train Generator Option: Enables precise pulse signal creation for specialized testing.

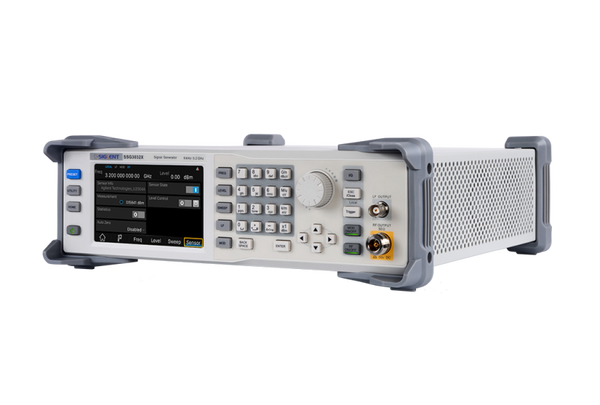

USB Power Meter Integration: Simplifies power measurements for enhanced usability.

Maximum output level up to +20 dBm

The Siglent SSG3021X offers a maximum output level of up to +20 dBm, delivering robust signal strength for demanding applications. This capability ensures precise and stable RF signal generation, making it ideal for testing high-power devices and systems. With fine amplitude resolution down to 0.01 dB, users can achieve accurate and repeatable signal levels across a wide range of testing scenarios.
