Siglent SNA6000-MT Material Measurement option
The Siglent SNA6000-MT Material Measurement license option for the SNA6000A series Vector Network Analyzer.

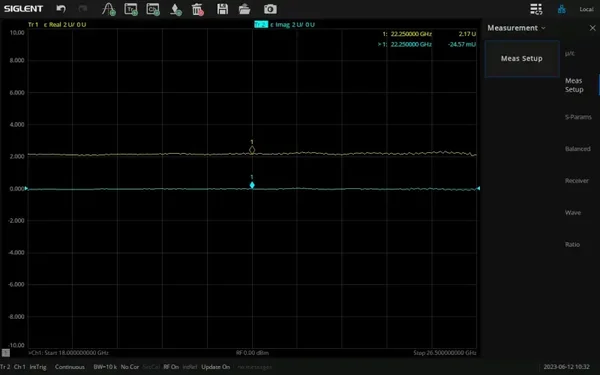

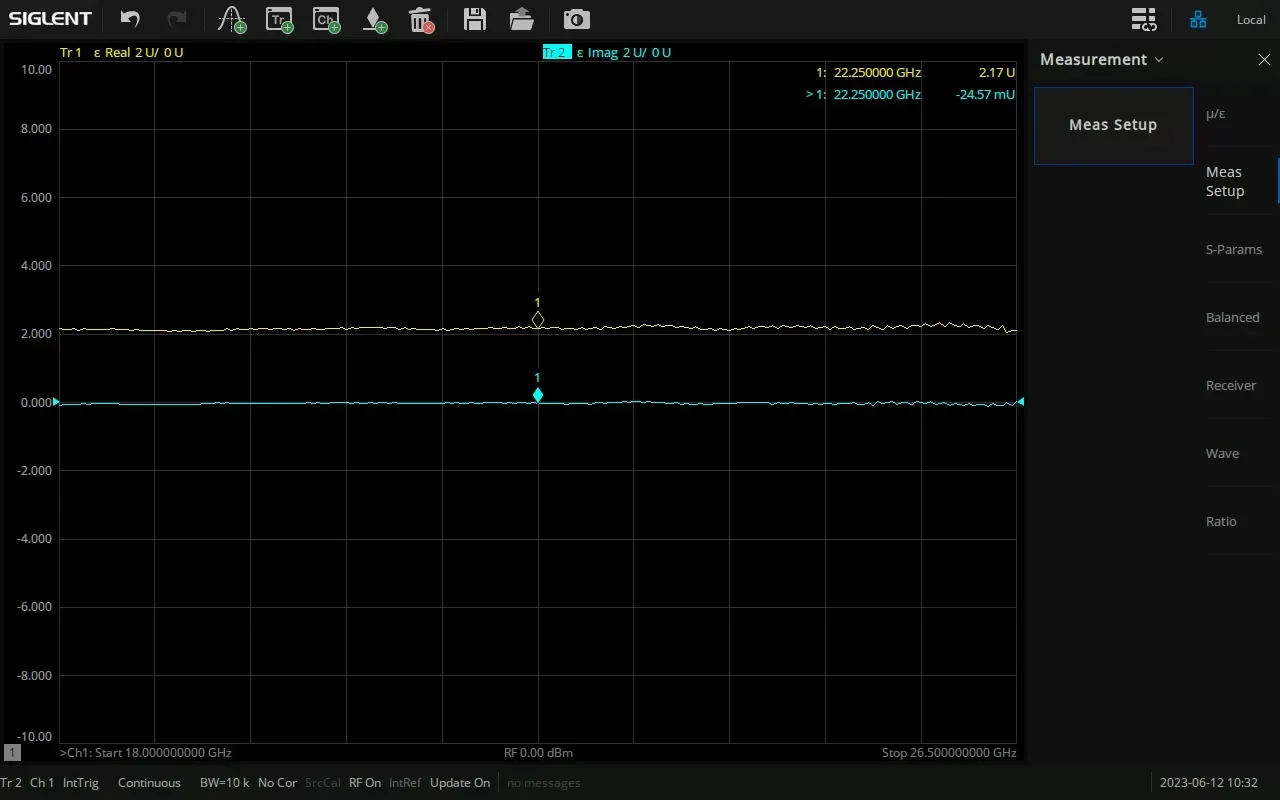

The SNA6000-MT Material Measurement option is designed to measure the electromagnetic properties of various materials, specifically focusing on parameters like permittivity and permeability. The process typically involves placing a material sample in a defined sample holder and using the network analyzer to transmit signals through it. The reflected and transmitted signals are analyzed to extract material parameters.
Key features of the MT option include:
1. Waveguide TRL Calibration: Ensures accurate measurements by applying calibration techniques specific to waveguides.
2. Sample Holder Configuration: Allows customization of the sample holder based on the material being measured.
3. Electromagnetic Parameter Measurement: Supports the measurement of both permittivity and permeability for a variety of material samples.
This option is particularly useful in research and development for characterizing material properties for applications in RF and microwave technologie.
