Siglent SNA6124A 4CH 100kHz-13.5GHz Vector Network Analyzer

CHOOSE A FREE OPTION
€55,585.00

The SIGLENT SNA6124A series Vector Network Analyzers (VNAs) offers a frequency range of 100k~13.5GHz, 4 ports VNA with direct receiver access; stanadard setting range of output level: -55 ~ +10 dBm; dynamic range 135 dB; 12.1'' touch screen

Purchase a new SNA6000A instrument and select one free analysis option for your application.

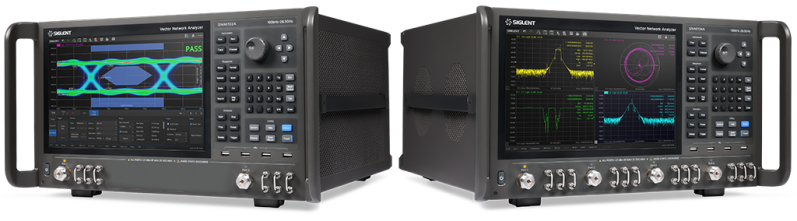

The SIGLENT SNA6000A series Vector Network Analyzers (VNAs) offer a frequency range of 100 kHz to 26.5 GHz, with 4-port S-parameter, differential, and time-domain measurements. It is Ideal for assessing Q-factor, bandwidth, and insertion loss in filters, these VNA include features like impedance conversion, limit testing, ripple tests, and fixture simulation. It supports five sweep modes: Linear, Log-Frequency, Power, CW-Time, and Segment-Sweep. Additionally, they offer S-parameter correction (SOLT, SOLR, TRL, Response, Enhanced Response) for flexible R&D and manufacturing applications. The quick evolution of RF technologies has heightened the demand for advanced measurement tools.

The Siglent SNA6000A series addresses this need with exceptional performance, a wide range of powerful features, and impressive technical specifications. It offers a flexible, high-performance, and intuitive solution tailored to the measurement and analysis requirements of modern electronics. This series includes eight models, available in bandwidths of 13.5 GHz and 26.5 GHz, with options for both 2-port and 4-port configurations. Each model is offered in a standard version or an extended version that includes Direct Receiver Access (DRA). The SNA6000A series is built on a modular and integrated architecture that not only delivers superior performance but also ensures scalability and adaptability for future advancements.

High Dynamic Range and Precision

High dynamics enable more precise and reliable measurements, which is of great importance in research, development and production. The SNA6000A impresses with a dynamic range of over 135 dB, which makes it ideal for the detailed analysis of weak signals, even when they occur alongside stronger signals. This makes the analyzer ideal for measuring filters with low insertion loss and high stopband attenuation. In addition, high dynamics help to minimize signal distortion, which improves signal integrity. It also increases calibration accuracy, especially in scenarios where external influences such as cables or adapters must be minimized.

Advanced Calibration

Calibrating network analyzers is critical for high accuracy measurements. The SNA family supports a broad range of mechanical and electronic calibration kits with the frequency up to 26.5 GHz for both general purpose and precision-level requirements and offers advanced calibration methods to enhance ease-of-use while providing best-in-class accuracy. SIGLENT protects your investment by supporting the import of calibration kits from other manufacturers and customer-defined calibration kits.

Siglent SNA6034A Features

  • Frequency range: 100 kHz - 13.5 GHz
  • Frequency resolution: 1 Hz
  • Level resolution: 0.05 dB
  • Range of IFBW: 1 Hz~10 MHz
  • Setting range of output level: -55 dBm ~ +10 dBm
  • Dynamic range: 135 dB
  • Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
  • Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement, Material Measurement
  • Internal Bias-Tee connections
  • Interface: LAN, USB Device, USB Host (USB-GPIB)
  • Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
  • 12.1-inch touch screen
  • Video output: HDMI/DVI-D/DP

Extend the Power to Multiport Devices

SSM single unit can expand the output ports to 24 and can be easily integrated, greatly adapt to the automatic test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include design, verification and production of antenna, data converter interfaces, automatic test of RF components and other devices, etc.

Responsive Table
Model SNA6034A
SNA6134A
SNA6032A
SNA6132A
SNA6024A
SNA6124A
SNA6022A
SNA6122A
Frequency range 100kHz-26.5GHz 100kHz-26.5GHz 100kHz-13.5GHz 100kHz-13.5GHz
Ports 4 2 4 2
Frequency resolution 1 Hz
Level resolution 0.05 dB
Range of IFBW 1 Hz~10 MHz
Number of points 2 to 100,001
Setting range of output level -55 dBm ~ +10 dBm
Dynamic range 135 dB
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Types of measurement Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, Material Measurement
Bias-Tees Support
Interface LAN, USB Device, USB Host(USB-GPIB)
Remote control SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer
Display 12.1-inch touch screen
Video output HDMI/DVI-D/DP

Standard Accessories:

1 x SNA6034A

1 x Calibration certificate

1 x Quickstart guide

1 x USB Cable

1 x Power cord

1 x Wireless mouse

Optional Accessories / license keys
