Siglent SDG1032X PLUS 30MHz 1 GSa/s Arbitrary / Waveform Generator
Siglent SDG1032X Plus is the new 30 MHz, 2CH Arbitrary / Waveform Generato with 1 GSa/s sampling, 16-bit resolution, 8 Mpts memory, and ±10 V output.
Product overview
The SDG1032X Plus is a value dual-channel function / arbitrary waveform generator that punches well above its price. Siglent's TrueArb and EasyPulse engines drive a 1 GSa/s DAC with 16-bit vertical resolution, so both channels deliver clean, faithful signals up to 30 MHz — from precise arbitrary waveforms to low-jitter pulses with independently adjustable edges.
Beyond standard waveforms it adds PRBS with selectable logic levels and differential output, dual and multi-pulse generation, a full modulation suite, sweep and burst, harmonics, a 200 MHz frequency counter and 8 Mpts of arbitrary memory per channel — a genuinely versatile signal source on a compact bench footprint.
A built-in web server lets you drive the SDG1032X Plus from any browser on the network — no software to install — while USB and LAN provide a full SCPI command set for automated test, and the free EasyWaveX editor builds custom waveforms on your PC. With a bright 4.3-inch display, 10 MHz reference in/out for multi-instrument locking and an optional GPIB adapter, it slots neatly into education, R&D and production environments alike.
Key highlights
Up to 30 MHz
Dual-channel output to 30 MHz with 1 GSa/s sampling for clean, detailed signals.
1 GSa/s · 16-bit
A 1 GSa/s DAC with 16-bit vertical resolution for high signal fidelity.
TrueArb & EasyPulse
Point-by-point arbitrary playback plus low-jitter pulse with adjustable edges.
8 Mpts per channel
Deep arbitrary memory with sequence playback (continuous / step / burst).
PRBS & multi-pulse
PRBS3–32 to 40 Mbps with differential output, plus up to 30-pulse bursts.
Web control & counter
Built-in web server for browser control and a 200 MHz frequency counter.
Core capabilities
TrueArb & EasyPulse
Point-by-point arbitrary playback (24 pts–8 Mpts, 1 µSa/s–250 MSa/s) that never skips a point, plus low-jitter square/pulse output with widths down to 19.4 ns and independently adjustable rise/fall edges from 10 ns.
Sequence & multi-pulse
Sequence playback with up to 8 Mpts/ch and continuous, step and burst run modes, plus dual/multi-pulse output (up to 30 pulses) for measuring the switching parameters of power devices.
PRBS, modulation & sweep
PRBS3–PRBS32 patterns to 40 Mbps with TTL/LVCMOS/LVPECL/LVDS presets and differential output, AM/DSB-AM/FM/PM/ASK/FSK/PSK/PWM modulation, waveform combining, harmonics to the 16th order, plus sweep and burst.
Frequency counter & web control
A built-in 0.1 Hz–200 MHz frequency counter (frequency, period, pulse width, duty cycle), plus a built-in web server for full remote control from any browser.
Technology & features in detail
The SDG1032X Plus brings the same signal-generation engines and connectivity as the rest of the SDG1000X Plus platform.

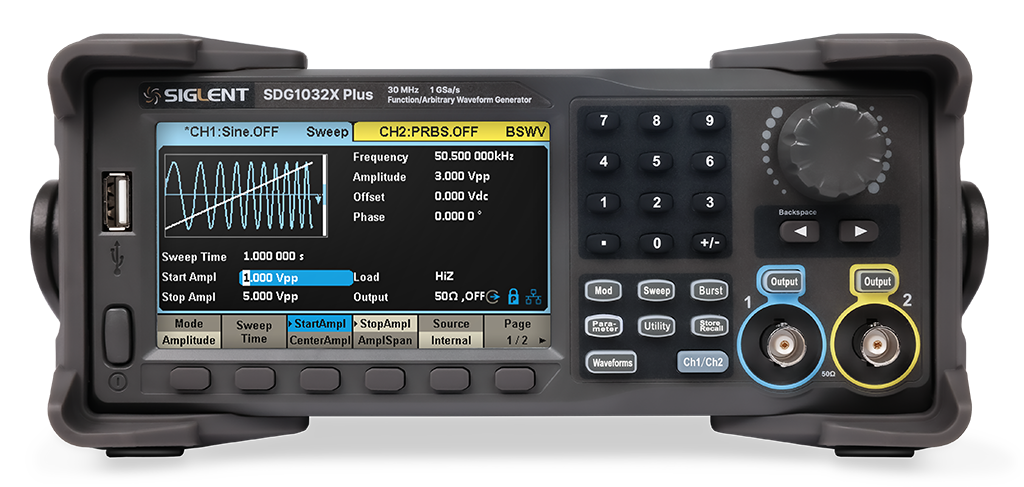

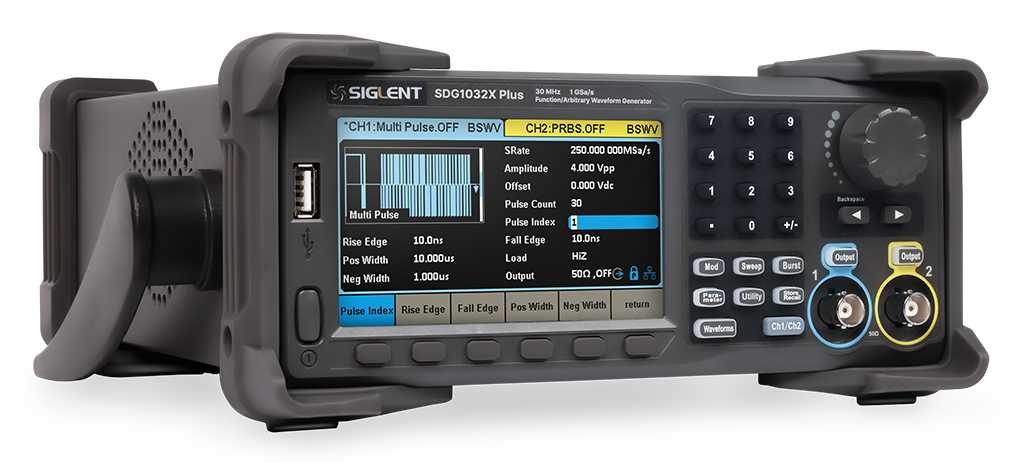

Front & rear panel
A bright 4.3-inch display, rotary knob and numeric keypad up front; clock, trigger, counter and control I/O for PC control and multi-instrument synchronization.
Connectivity
- CH1 & CH2 signal outputs — BNC, 50 Ω
- Aux in / out — external trigger, modulation & sync
- 10 MHz reference clock in / out (±1 ppm)
- Counter input — 0.1 Hz to 200 MHz
- USB Host (front) — save / recall to a USB stick
- USB Device (rear, USBTMC) — PC control & SCPI
- LAN — built-in web server & SCPI (VXI-11)
- GPIB (IEEE-488) via the optional USB-GPIB adapter
Where it is used
Education & training
A capable dual-channel source for electronics teaching labs and student benches.
R&D & design
Everyday arbitrary, modulation, sweep and burst generation for design and validation.
Power-device testing
Dual and multi-pulse output for MOSFET / IGBT switching-parameter measurement.
Digital & serial
PRBS3–32 patterns with logic-level presets and differential output for serial-link stimulus.
Modulation & comms
AM/FM/PM/ASK/FSK/PSK/PWM modulation for communications and general signal simulation.
Service & production
A compact, connected generator for field service, maintenance and production test.
In the box
Every SDG1032X Plus ships with the standard accessories below. Manuals and software are in the Downloads section.
Region-specific mains lead (IEC C13)
USB Type-A to Type-B for PC control
Printed getting-started guide
Factory calibration certificate

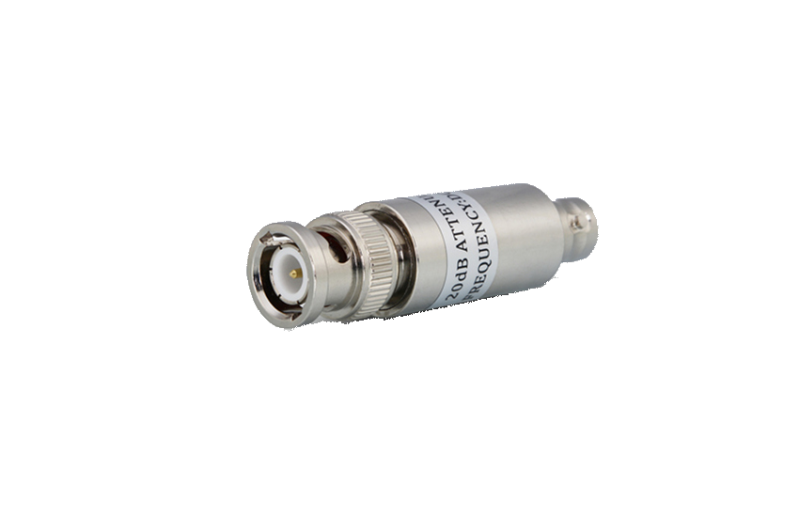

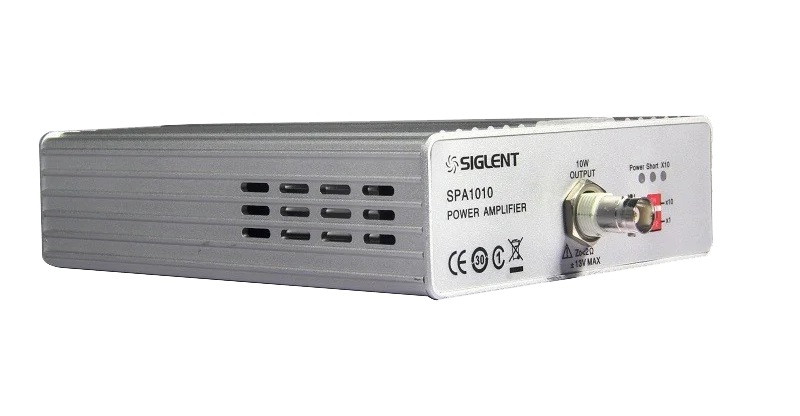

Optional accessories
Amplifier, attenuator, cables and add-ons for the SDG1032X Plus — order alongside the instrument or later.
Specifications
- Max sine frequency
- 30 MHz
- Channels
- 2
- Frequency resolution
- 1 µHz
- Square / pulse max
- 20 MHz / 20 MHz
- Max output amplitude
- 20 Vpp (HiZ) · ±10 V offset
- Output impedance
- 50 Ω
- DAC sample rate
- 1 GSa/s (4× interpolation)
- TrueArb rate
- 1 µSa/s – 250 MSa/s
- Vertical resolution
- 16-bit
- Arbitrary memory
- 8 Mpts/ch
- Arb waveform length
- 24 pts – 8 Mpts
- Sequence run modes
- Continuous · step · burst
- Standard
- Sine, Square, Pulse, Ramp, Noise, DC, Arb
- Built-in arbitrary
- 196 waveforms
- Pulse min width / edge
- 19.4 ns / 10 ns
- Pulse / square jitter
- 200 ps
- Sine THD
- 0.075%
- Harmonics
- up to 16th order
- PRBS
- PRBS3–32 · to 40 Mbps · differential
- Multi-pulse
- up to 30 pulses
- Analog / digital mod.
- AM, DSB-AM, FM, PM, ASK, FSK, PSK, PWM
- Sweep / burst
- Freq & ampl · linear/log · N-cycle/gated
- Frequency counter
- 0.1 Hz – 200 MHz
- Interfaces
- USB host · USB device · LAN · GPIB opt.
- Remote control
- Built-in web server · SCPI
- Display
- 4.3-inch · 480×272
- Reference clock
- 10 MHz in/out · ±1 ppm
- Power
- 100–240 V · up to 50 W
- Dimensions (W×H×D)
- 260 × 107 × 296 mm · 3.48 kg
Amplitude figures are into a HiZ load (halved into 50 Ω). Specifications are guidance only — the official Siglent datasheet is the definitive reference.
