Siglent SDG3162X – 160 MHz Dual-Channel Arbitrary Waveform
The SDG3162X is a two-channel arbitrary waveform generator offering 160 MHz bandwidth, 1.2 GSa/s sampling, 16-bit resolution and up to 20 Vpp output. Double-pulse output characterises MOSFET and IGBT switching, sequence playback and up to 40 Mpts memory handle long records, and AM/FM/PM/ASK/FSK/PSK/PWM, PRBS and optional IQ/vector cover communications and digital test — all on a 7-inch touchscreen.
Product overview
The SDG3162X is a high-performance dual-channel arbitrary waveform generator with up to 160 MHz bandwidth, a 1.2 GSa/s sample rate and 16-bit vertical resolution. TrueArb and EasyPulse technologies overcome the limitations of DDS designs, producing high-fidelity arbitrary waveforms and low-jitter pulses — ideal for power-device testing, digital development and signal-integrity work.
Two channels deliver up to 20 Vpp, with sequence playback, dual/multi-pulse output, AM/FM/PM/ASK/FSK/PSK/PWM modulation, sweep, burst and PRBS to 120 Mbps. Optional IQ/vector, Multi-Tone, Chirp and 40 Mpts memory extend it further. A large 7-inch capacitive touchscreen, a built-in frequency counter and USB/LAN with a web server make the SDG3162X equally at home in R&D, education and production.
Key highlights
160 MHz · dual-channel
Two fully independent channels to 160 MHz with a 1.2 GSa/s sample rate and 16-bit resolution.
TrueArb & EasyPulse
Point-by-point arbitrary playback and low-jitter square/pulse output — free of DDS artefacts.
Dual / multi-pulse
Two to thirty precisely timed pulses for double-pulse MOSFET/IGBT switching characterisation.
Sequence & up to 40 Mpts
Up to 1024-segment sequence playback and up to 40 Mpts (optional) waveform memory per channel.
Modulation, PRBS & IQ
AM/FM/PM/ASK/FSK/PSK/PWM, PRBS to 120 Mbps and optional IQ/vector, Multi-Tone and Chirp.
7-inch touchscreen
A large 7-inch capacitive touchscreen with USB/LAN and a built-in web server for remote control.
Core capabilities
Dual-channel, 20 Vpp output
Two channels with up to 20 Vpp amplitude for clean, high-fidelity, low-noise signals across the band.
TrueArb & EasyPulse
Point-by-point arbitrary playback (10 mSa/s–600 MSa/s) with several interpolation modes, plus low-jitter square/pulse output with fine width and edge control.
Sequence & multi-pulse
Sequence playback with up to 1024 segments and five run modes, plus dual/multi-pulse output (to 30 pulses) for power-device switching characterisation.

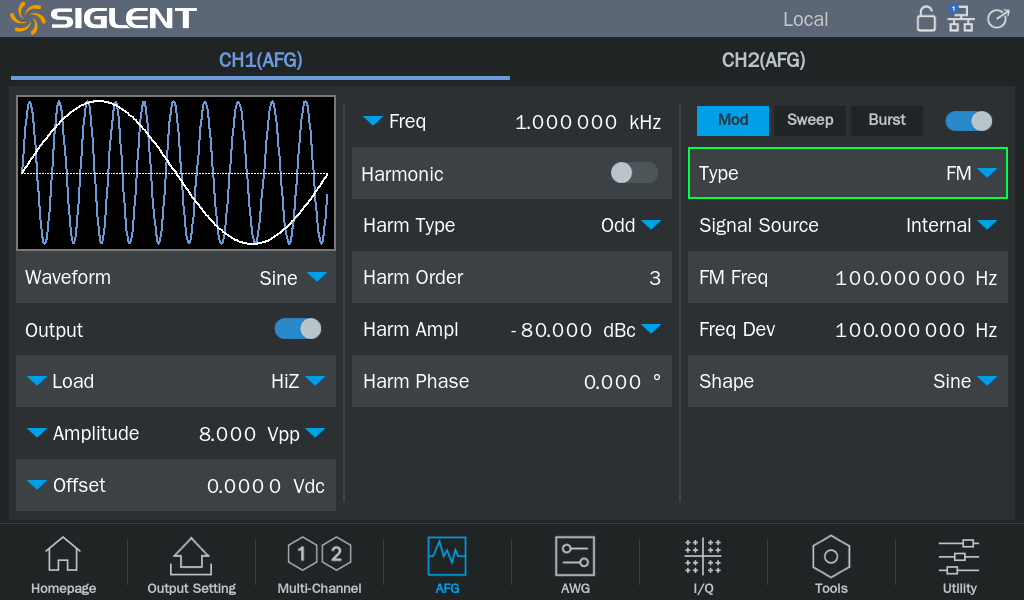

Modulation, sweep & PRBS

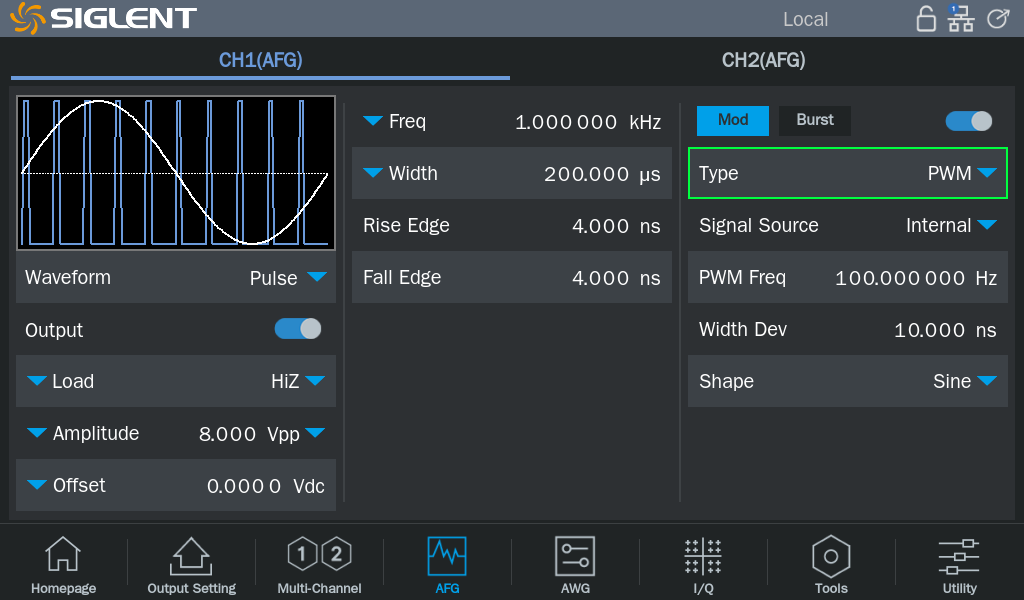

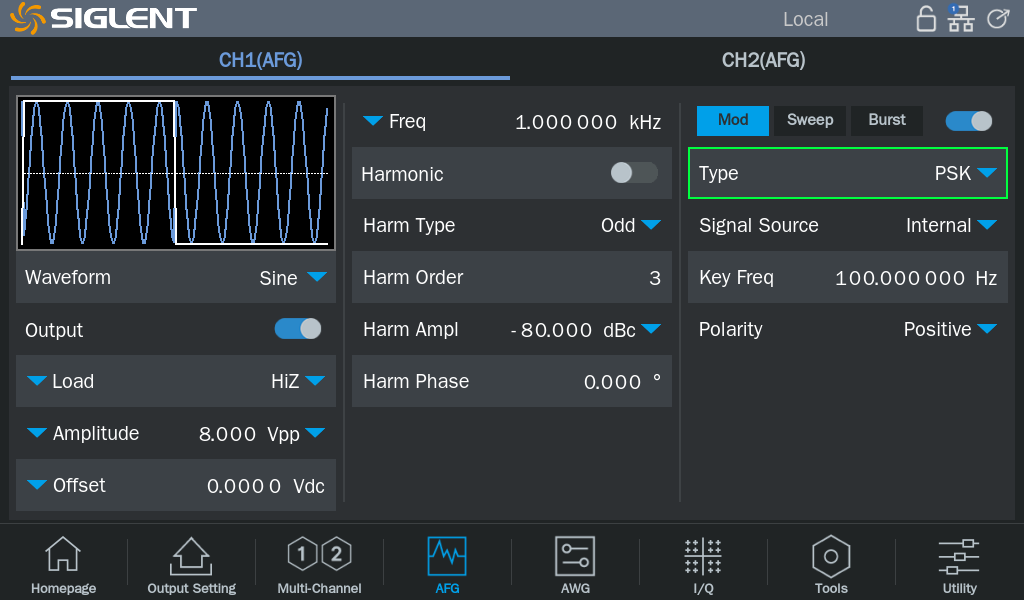

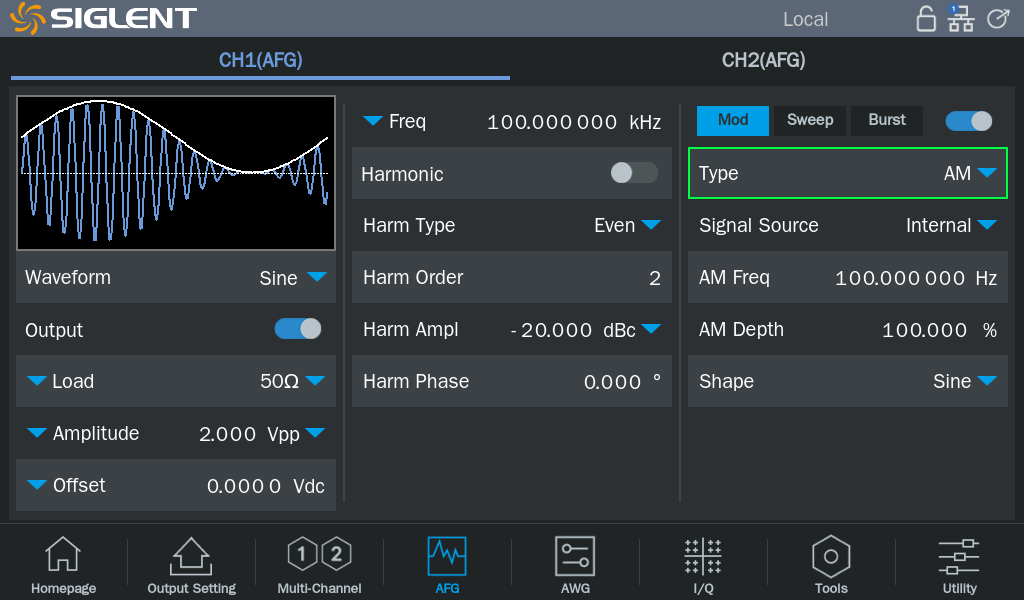

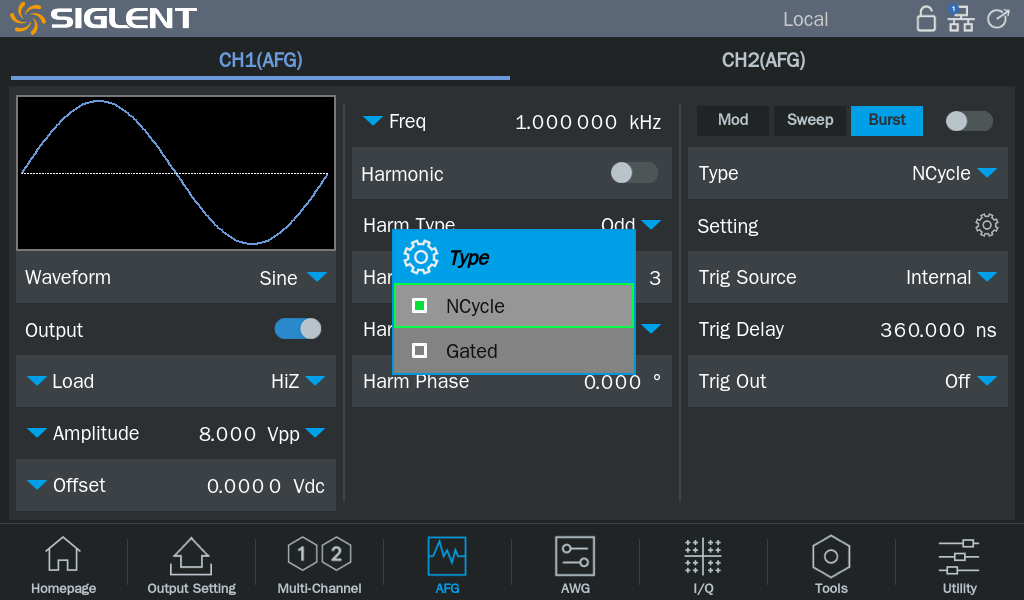

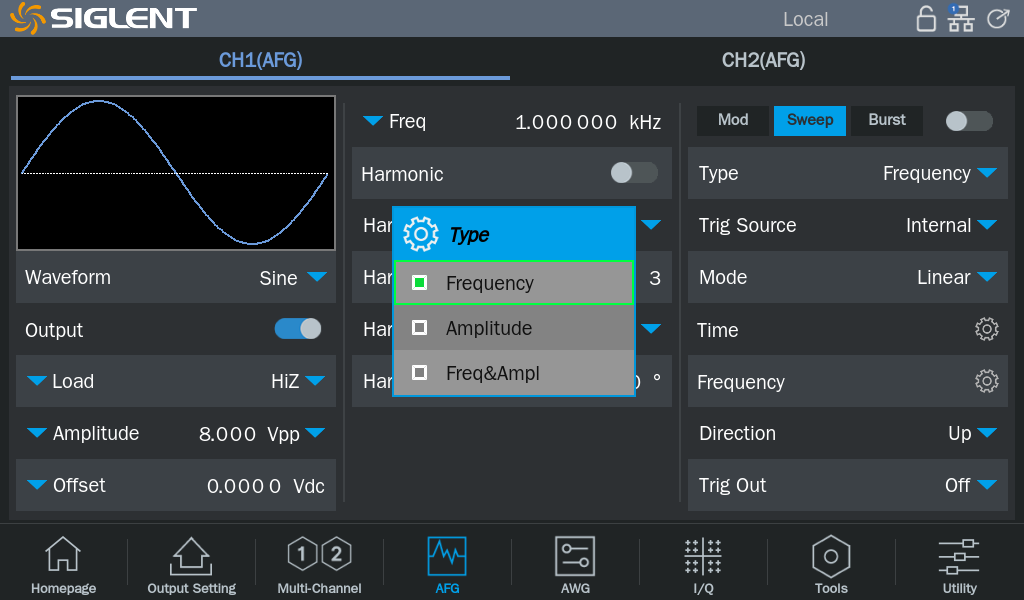

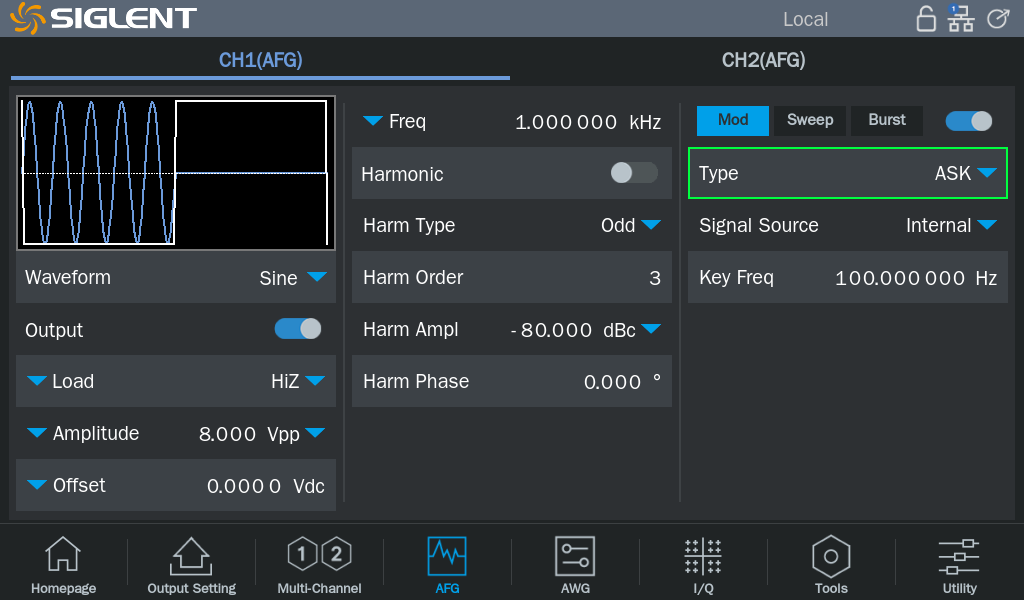

AM, DSB-SC, FM, PM, ASK, FSK, PSK and PWM, plus sweep, burst, harmonics to the 20th order and PRBS3–PRBS32 to 120 Mbps.
IQ, Multi-Tone & Chirp
Optional EasyIQ vector generation (ASK/FSK/PSK/QAM, symbol rate to 50 MSymb/s, carrier to 200 MHz), plus optional Multi-Tone and Chirp.
Counter & connectivity

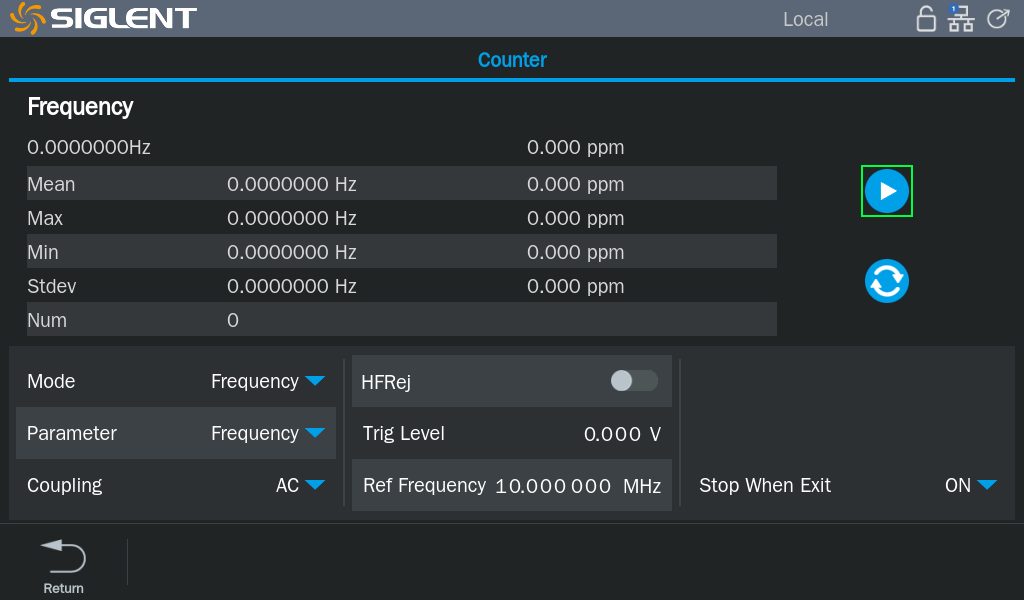

A built-in frequency counter with USB Host/Device, LAN and a web server for remote control (optional USB-GPIB).
Features in depth
Dual-pulse for power-device testing
The SDG3000X’s dual-pulse feature is designed for advanced power-electronics testing. It generates two precisely timed pulses with adjustable width, interval and edges, so you can evaluate the switching parameters, dynamic characteristics and safe operating area of devices such as MOSFETs and IGBTs. Combined with a digital oscilloscope, double-pulse testing becomes a powerful method for analysing switching losses, measuring reverse-recovery times and optimising power converters and inverters. Multi-pulse output extends this to sequences of up to 30 pulses for more complex switching scenarios.

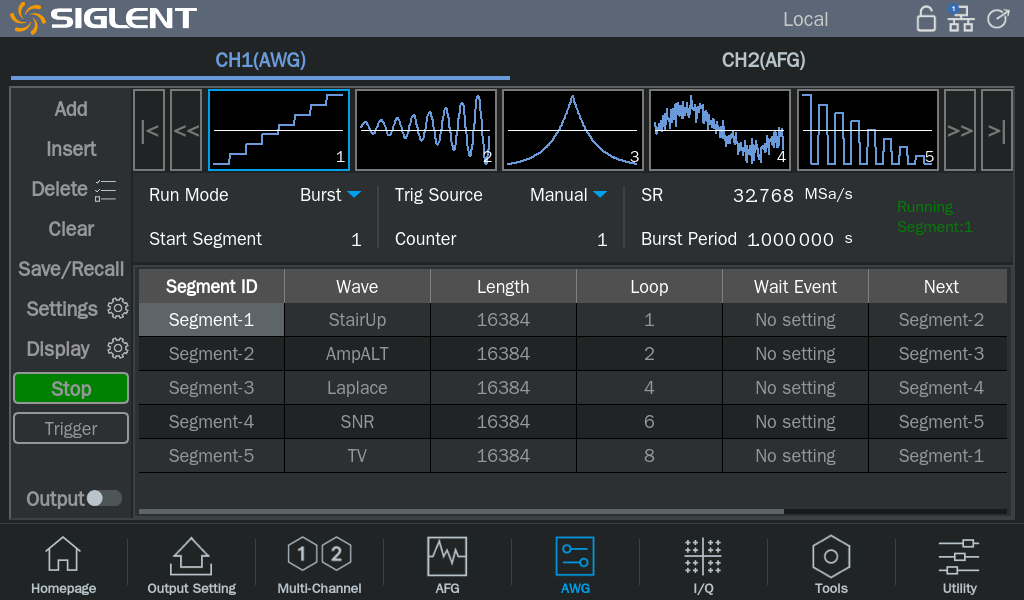

Sequence playback & TrueArb
TrueArb generates arbitrary waveforms point-by-point so no data point is skipped or repeated, preserving fine detail across a wide frequency range, while EasyPulse keeps square and pulse edges low-jitter. On top of this, powerful sequence playback strings together up to 1024 waveform segments with five run modes and per-segment repeat, wait and jump control — ideal for replaying long, real-world or protocol-like stimulus without exhausting memory. Up to 40 Mpts of waveform memory per channel (optional) keeps even very long records intact.
IQ / vector signal generation

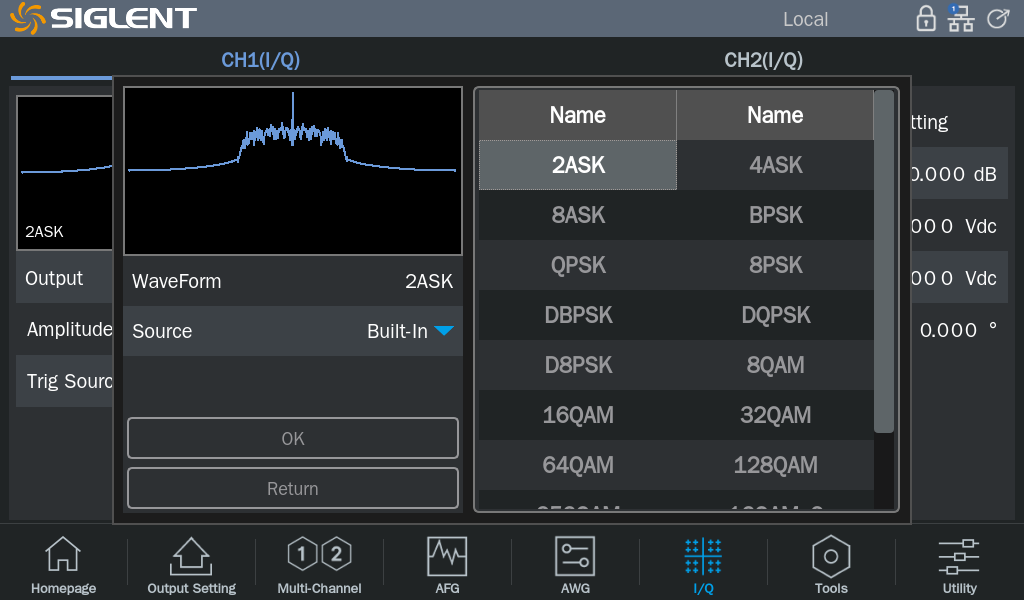

With the optional EasyIQ upgrade the SDG3000X becomes a compact vector signal source, generating ASK, FSK, PSK and QAM formats with symbol rates up to 50 MSymb/s and carriers up to 200 MHz. Built-in and custom I/Q data make it well suited to receiver and transmitter testing, data-communication analysis and teaching digital modulation. Combined with PRBS3–PRBS32 patterns to 120 Mbps and optional Multi-Tone and Chirp generation, one instrument covers a wide span of communication and high-speed digital test needs.
Functions & modulation at a glance
Panels & connectivity
Two BNC + I/Q outputs, trigger, dual USB and a 7-inch touchscreen up front; LAN, USB and 10 MHz reference at the rear.
Connectivity
- 2 × BNC output + I/Q (front, 50 Ω)
- Trig/Sync In & Out (front)
- 2× USB Host (front) — storage & mouse
- USB Device (rear, USBTMC) — PC/SCPI
- LAN — remote control & web server
- Optional USB-GPIB adapter
- 10 MHz reference & counter (rear)
- 7-inch capacitive touchscreen
Where it is used
Electronics design & R&D
Simulate sensor signals, create custom test waveforms and generate jitter-free clocks for digital development.
Power electronics
Double-pulse testing of MOSFETs and IGBTs, switching-parameter measurement and inverter/converter evaluation.
Telecommunications & RF
Modulated AM/FM/PSK/QAM signals for receiver/transmitter test, plus PRBS and IQ for data-comms analysis.
Automotive & industrial
ECU development, motor-drive testing and PWM/sensor-signal simulation for automotive and industrial systems.
Education & training
Teaching modulation, signal generation and digital communication principles in university and technical labs.
Medical & scientific
Simulate bio-signals, generate ultrasound test patterns and provide precise stimulus for research.
In the box
Every SDG3162X ships with the accessories below, plus a BNC-to-BNC test cable.
Software options & licences
The SDG3162X ships with the full standard feature set. These licences activate by key and expand it further. See the SDG3000X series.
Turns the SDG3000X into a vector signal source — ASK/FSK/PSK/QAM to 50 MSymb/s and carriers to 200 MHz via EasyIQ.
Extends the arbitrary-waveform memory to 40 Mpts per channel for very long records and sequences.
Optional accessories
In-line 20 dB attenuator to protect sensitive inputs and extend the usable amplitude range.
50 Ω BNC-to-BNC test cable, 1 m — connect the outputs to your device under test or scope.
BNC T-piece for splitting a signal to two instruments or adding a scope tap.
19-inch rack-mount kit for the SDG series, for ATE and lab installations.
Specifications
- Channels
- 2 (independent)
- Max. bandwidth
- 160 MHz
- Sample rate
- 1.2 GSa/s
- Vertical resolution
- 16-bit
- Max. amplitude
- ±10 V (20 Vpp)
- Waveform memory
- 20 Mpts (40 Mpts optional)
- Arb playback rate
- 10 mSa/s – 600 MSa/s
- Sequence
- up to 1024 segments · 5 run modes
- Dual / multi-pulse
- up to 30 pulses
- Modulation
- AM · DSB-SC · FM · PM · ASK · FSK · PSK · PWM
- Sweep / burst / harmonic
- linear/log/step · N-cycle/gated · to 20th order
- PRBS
- PRBS3–PRBS32, up to 120 Mbps
- Display
- 7-inch capacitive touchscreen
- Interfaces
- USB Host · USB Device (USBTMC) · LAN · web server
- Optional interface
- GPIB (via USB-GPIB adapter)
- Frequency counter
- Built-in
- Options
- IQ / vector (EasyIQ) · Multi-Tone · Chirp · 40 Mpts memory
- Power
- 100–240 V, 50/60 Hz
Specifications are guidance only — the official Siglent datasheet is the definitive reference. Software licences are delivered electronically and excluded from the 14-day EU return right once the key has been issued.
Compare the SDG3000X series
Three dual-channel models — choose by bandwidth. All share the 1.2 GSa/s, 16-bit engine, sequence, dual-pulse, PRBS and 7-inch touchscreen.
Ready to order the SDG3162X?
In EU stock, shipped from the Netherlands with full warranty and expert support. Need a different bandwidth? Compare the other SDG3000X models above.
