Siglent SNA5003X-E 2 ports, 3 GHz Vector Network Analyzer

Siglent SNA5003X-E Vector Network Analyzer – Accurate RF Analysis up to 3 GHz

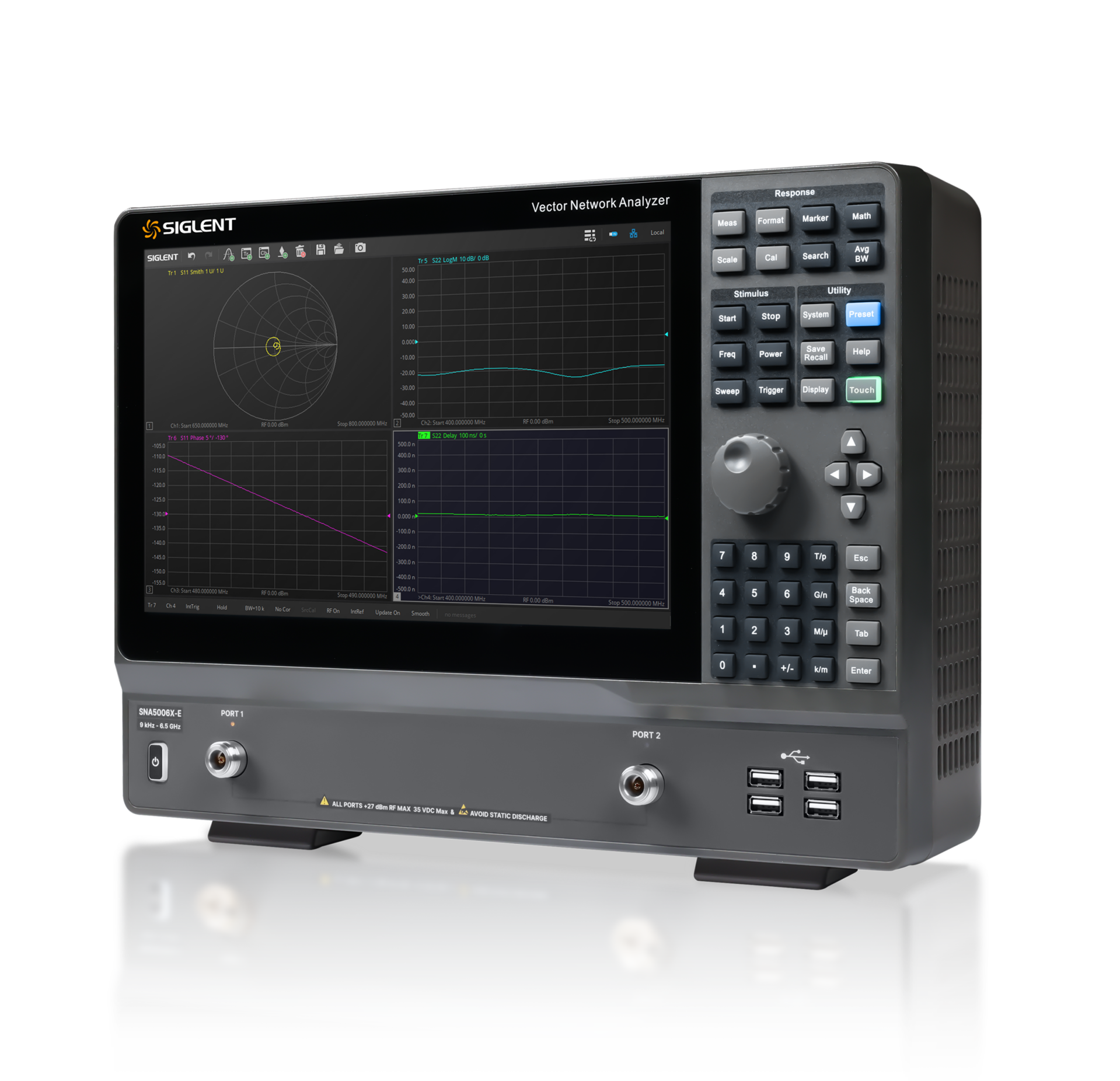

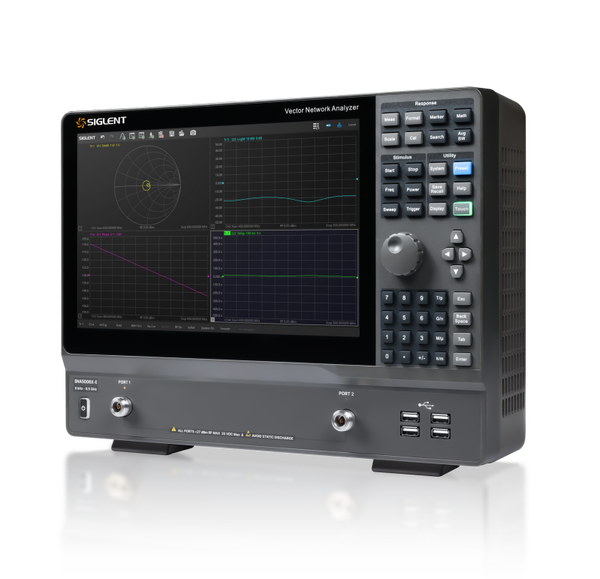

The Siglent SNA5003X-E is a modern 2-port vector network analyzer designed to deliver high accuracy and flexibility for RF component characterization up to 3 GHz. It is specifically developed for engineers working in RF design, validation, and production environments who require reliable S-parameter measurements without the cost of high-end laboratory VNAs.

One of the key strengths of the SNA5003X-E is its excellent dynamic range of up to 125 dB, allowing precise measurement of both low-loss and high-isolation devices such as filters, amplifiers, and RF modules. Combined with fine frequency resolution down to 1 Hz and a wide IF bandwidth range from 1 Hz to 10 MHz, the instrument offers both detailed analysis and fast measurement capability, making it suitable for everything from in-depth R&D to high-throughput production testing .

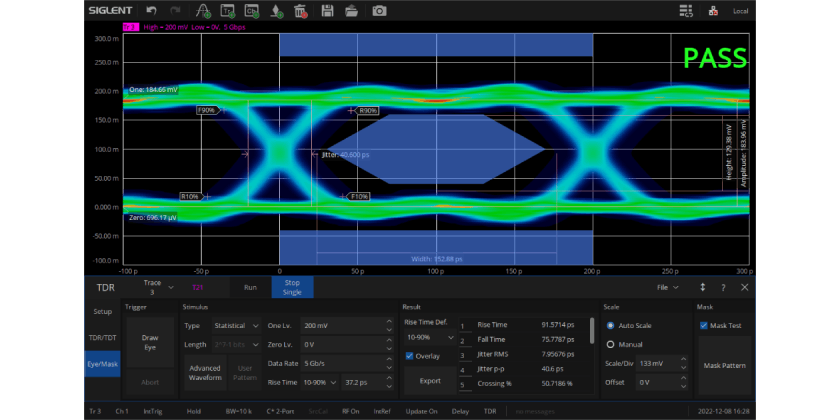

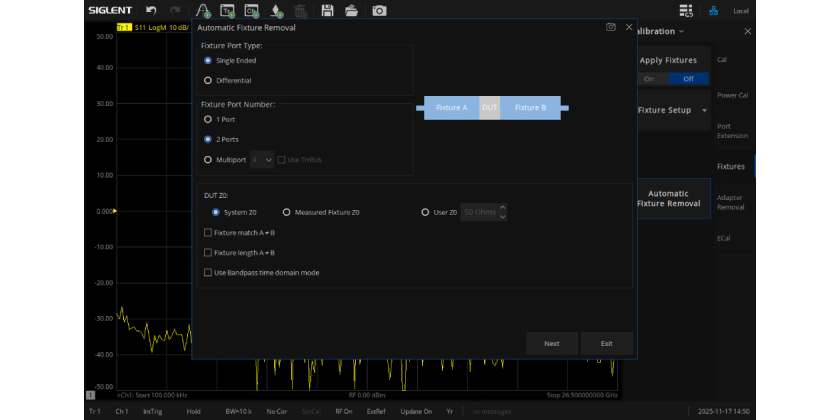

The analyzer supports a comprehensive set of measurement and calibration functions, including full 2-port calibration (SOLT, TRL), impedance conversion, fixture simulation, and time-domain analysis. These features enable accurate de-embedding and realistic DUT characterization, even in complex measurement setups .

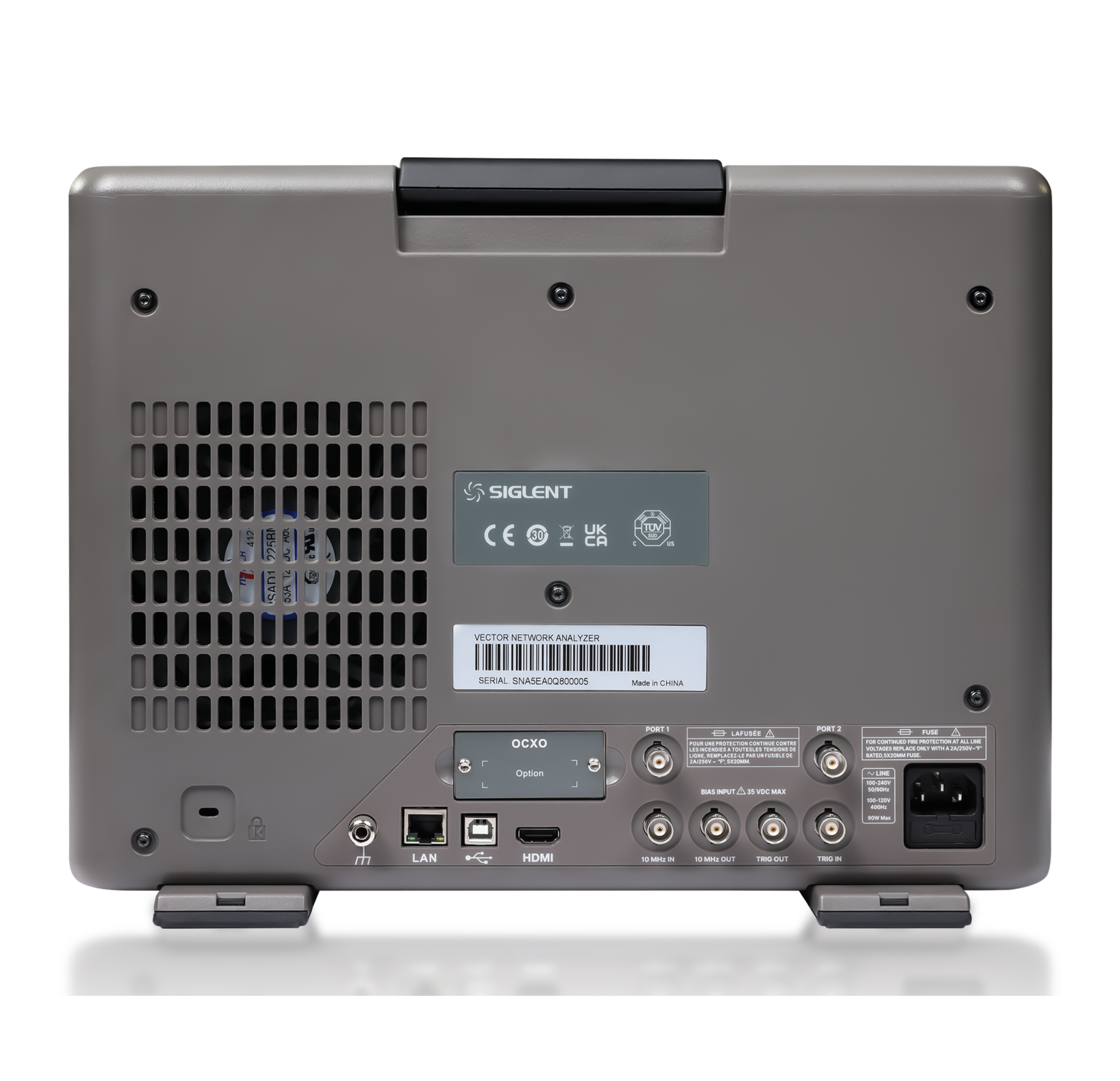

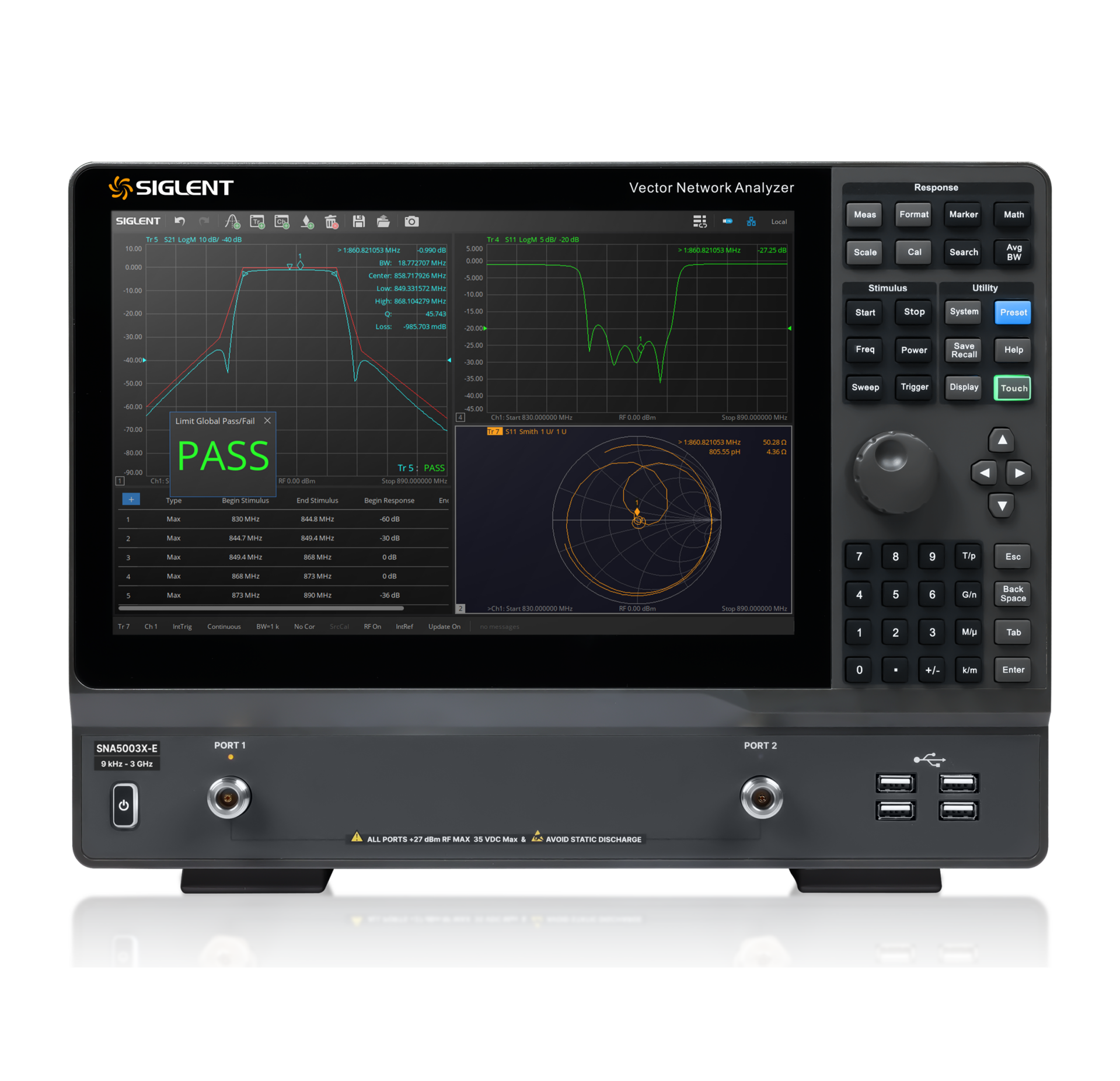

With its intuitive 12.1-inch touchscreen interface, multi-trace display modes, and advanced analysis tools, the SNA5003X-E is easy to operate while still offering powerful functionality for experienced users. Integrated LAN, USB, and remote control support ensure seamless integration into automated test systems and modern laboratories.

The SNA5003X-E is ideally suited for applications such as filter design and tuning, antenna matching, cable and connector testing, and general RF component validation. It is also an excellent choice for educational institutions and service environments where a balance between performance, usability, and cost is essential.

By combining strong measurement performance, advanced features, and excellent value, the Siglent SNA5003X-E stands out as a highly capable solution for everyday RF network analysis.
