SAP-PT Pogo Tips for Siglent Active Probes
Siglent SAP-PT pogo tips, 5 per box, for SAP1000, SAP2500 and SAP2500D. Sprung Z-axis compliance for sockets, vias and IC legs.

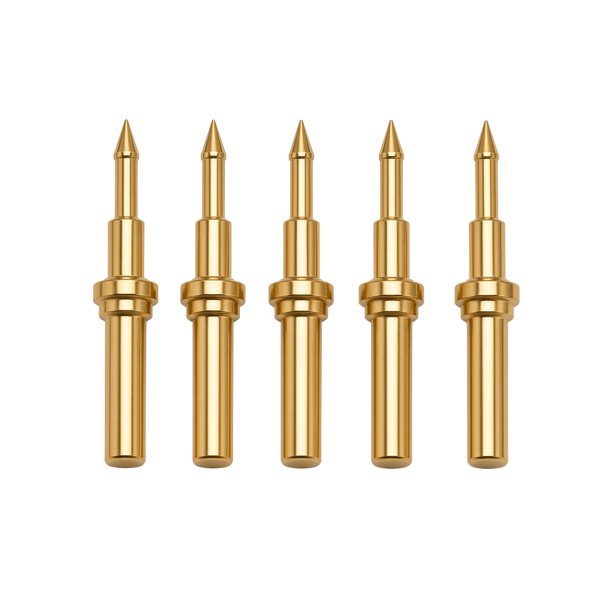

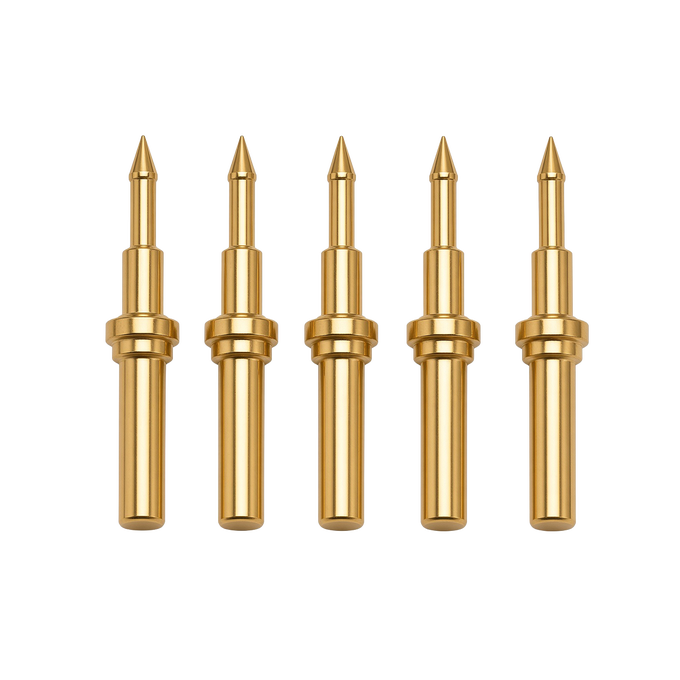

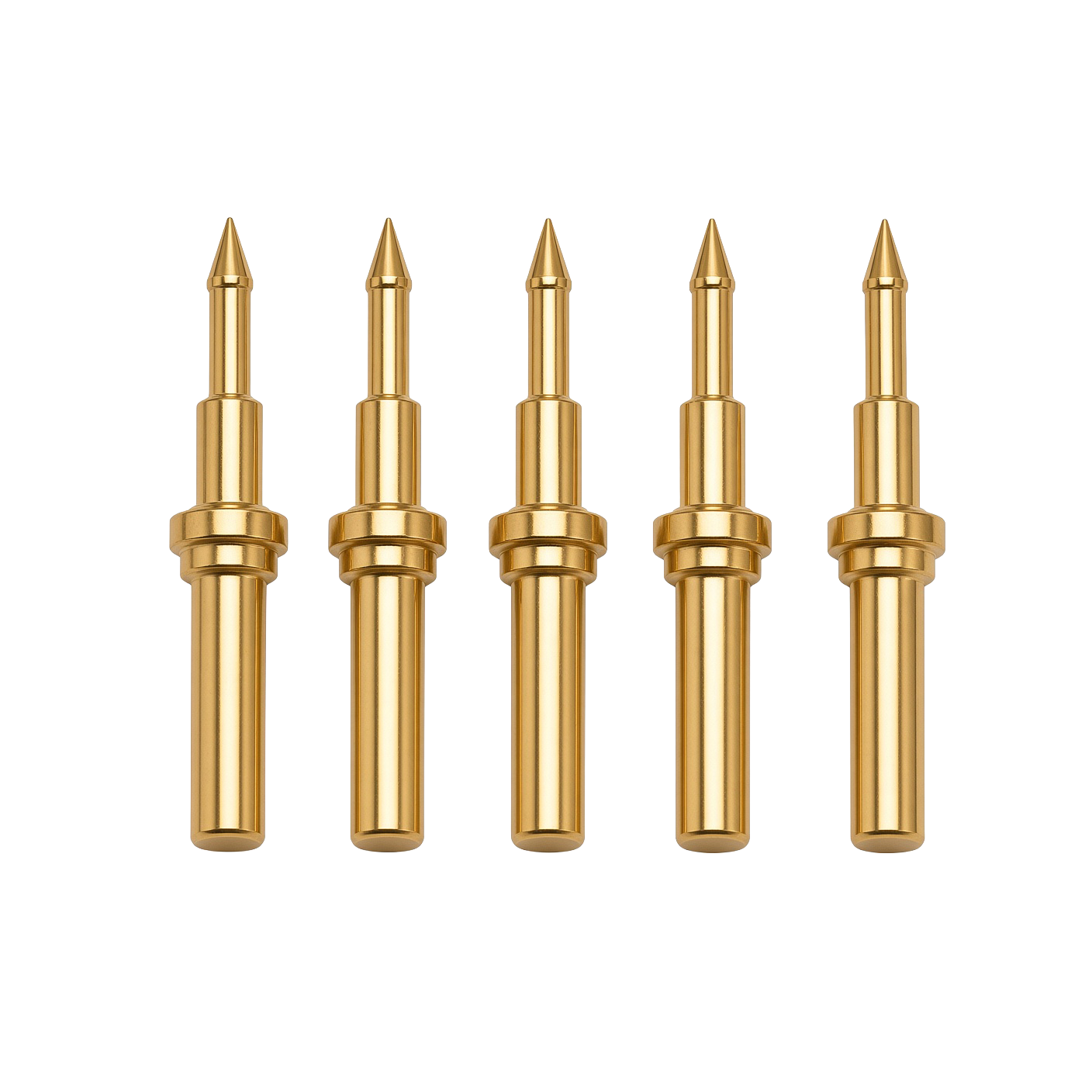

Five sprung pogo tips for active probes

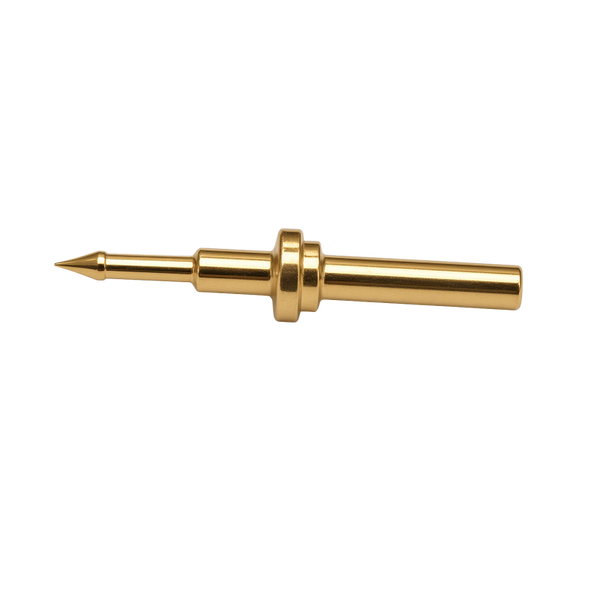

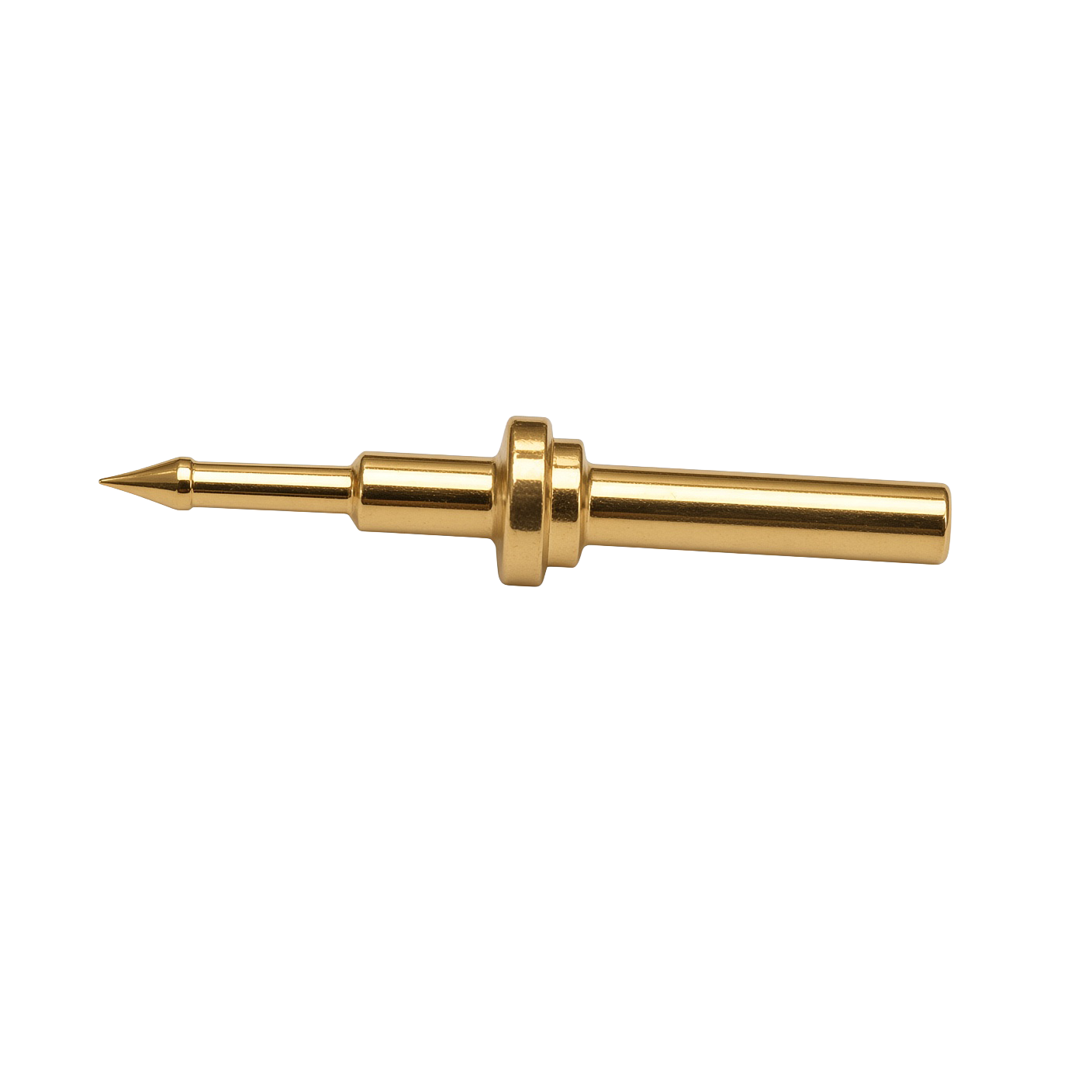

A pogo tip is spring-loaded, so it takes up the height difference when the probe is not perfectly perpendicular to the board and keeps contact pressure constant as you move.
That Z-axis compliance is what makes it the right tip for repeated probing of the same point — sockets, vias and IC legs, where a rigid straight tip either slips off or bends the lead you are trying to measure.
Package contents
- 5 × Pogo Tip
Order code SAP-PT · supplied by SIGLENT
When you need it
Probing vias and sockets
The sprung tip seats itself and stays seated, which a rigid tip will not do in a hole.
Probing IC legs
Constant contact pressure without pushing hard enough to bend the leg or lift the pad.

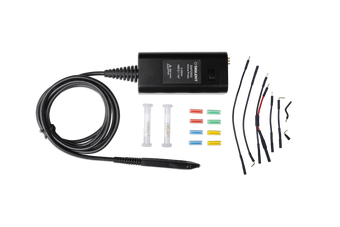

Fits these probes
Check the model before ordering — probe accessories are rarely interchangeable between families, and a head or tip that does not fit is of no use at all. If your probe is not listed here, ask us and we will find the right part.
Other probe accessories
Not sure this is the right part?
Tell us the probe model and what you are trying to reach on the board. Probe accessories are not interchangeable between families, and it takes us a minute to confirm the right one — which is a minute better spent than a return.
