SAP5-KIT Accessory Kit for Siglent SAP5000D
Siglent SAP5-KIT for SAP5000D and SAP8000D: 20 lead resistors, ground wire, silver wire, swivel tips and straight tips.
Working accessory kit for the 5 GHz and 8 GHz probes
The working kit for the 5 GHz and 8 GHz differential probes — tips, wire and, most importantly, the lead resistors.
The lead resistors are the important part. At these frequencies a bare wire from probe to node is a transmission line with a mismatch at both ends; a series resistor at the tip damps the resulting reflection and stops it appearing on your trace as ringing the circuit is not actually producing.

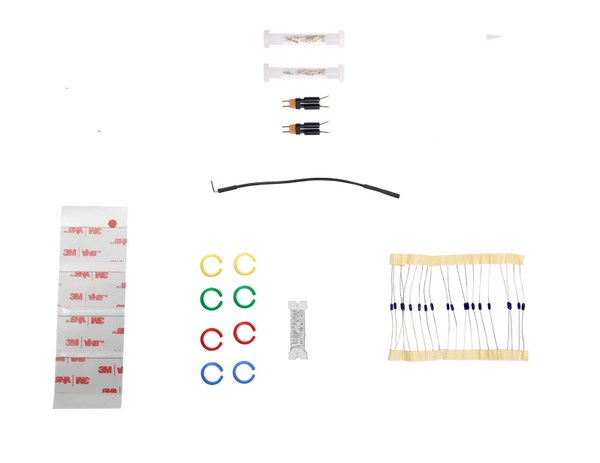

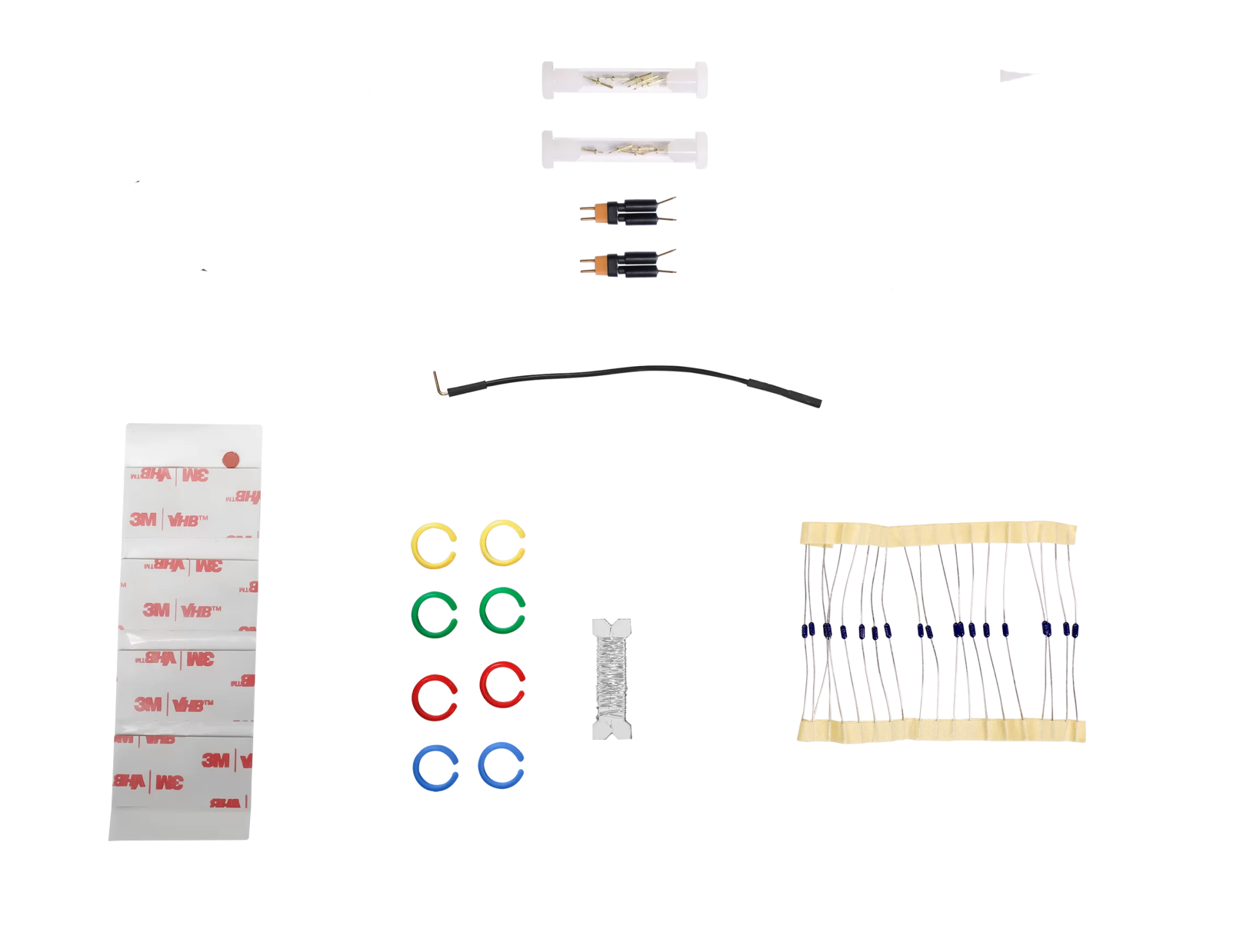

Package contents
- 20 × Lead resistor
- 1 × Ground wire, 10 cm
- 1 × Silver wire, 1 m
- 2 × Swivel Tip
- 5 × Straight Tip
Order code SAP5-KIT · supplied by SIGLENT
When you need it
Any measurement above about 2 GHz
Where an undamped lead turns into an antenna and a resonator, and the trace shows you the probe rather than the board.
Solder-in work with silver wire
Short, controlled connections to nodes too small or too crowded for a tip.

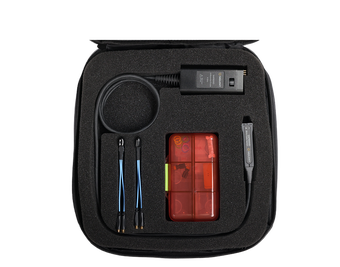

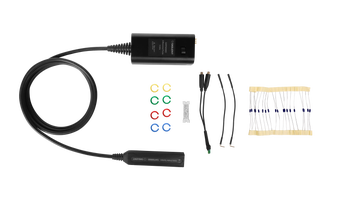

Fits these probes
Check the model before ordering — probe accessories are rarely interchangeable between families, and a head or tip that does not fit is of no use at all. If your probe is not listed here, ask us and we will find the right part.
Other probe accessories
Not sure this is the right part?
Tell us the probe model and what you are trying to reach on the board. Probe accessories are not interchangeable between families, and it takes us a minute to confirm the right one — which is a minute better spent than a return.
