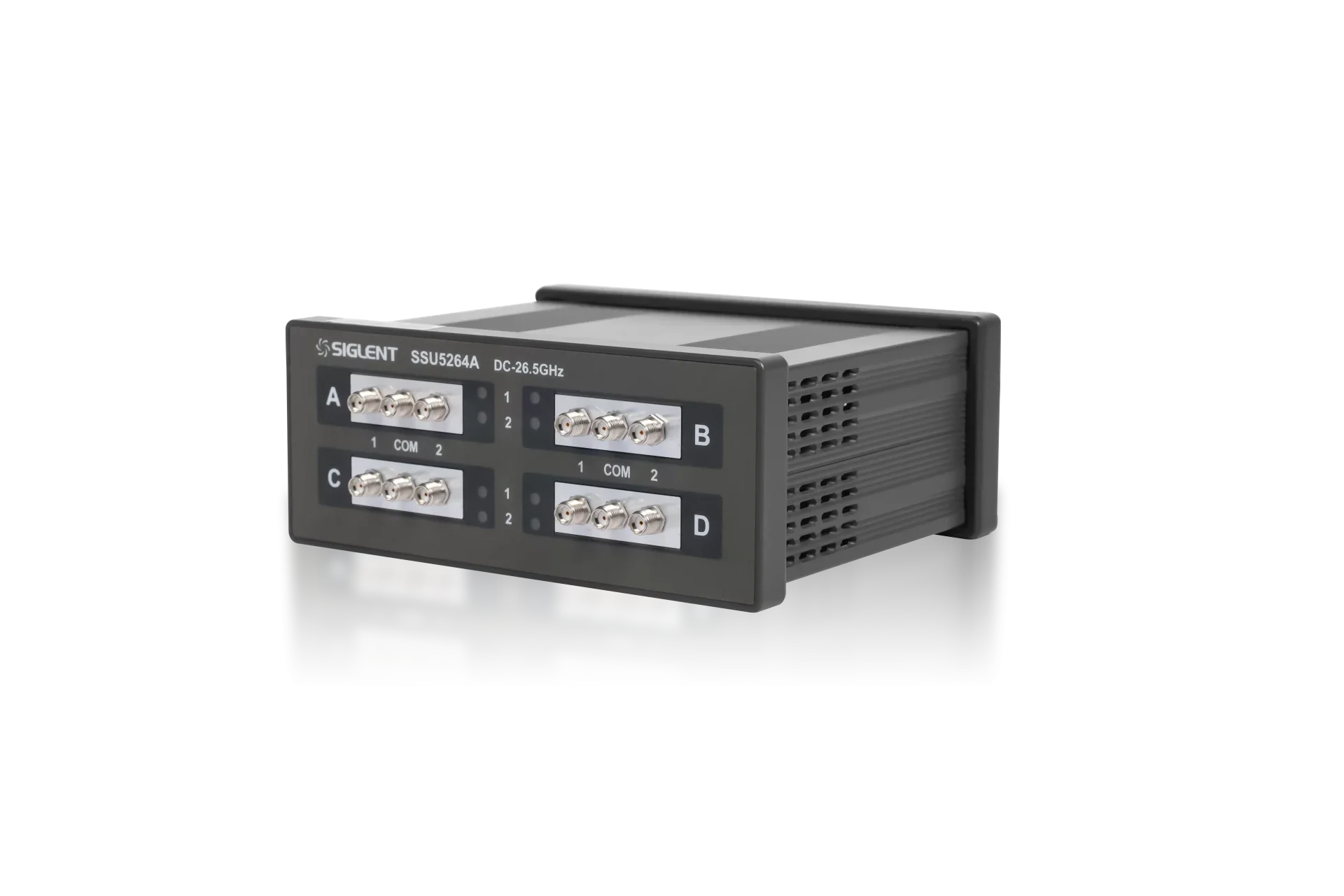

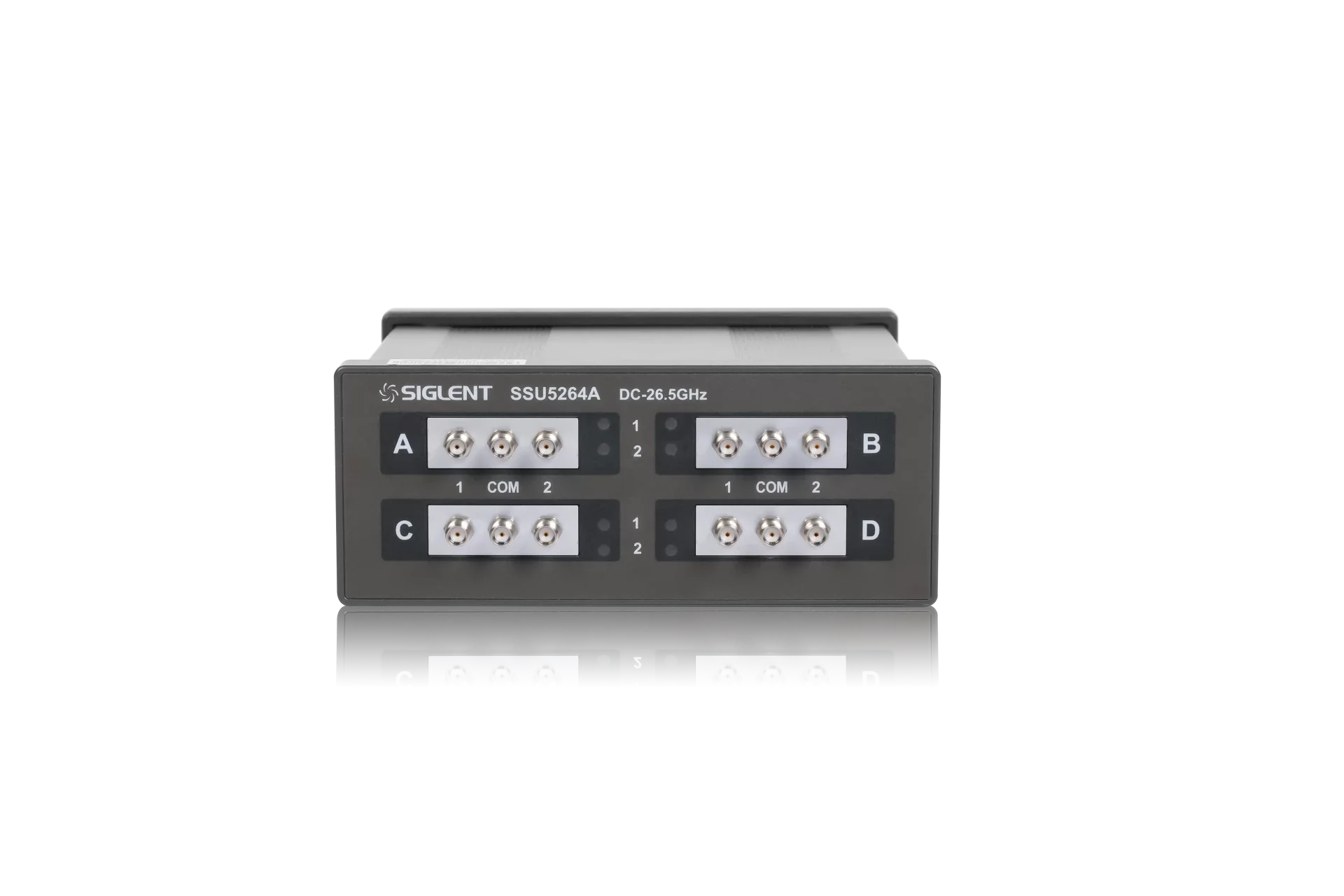

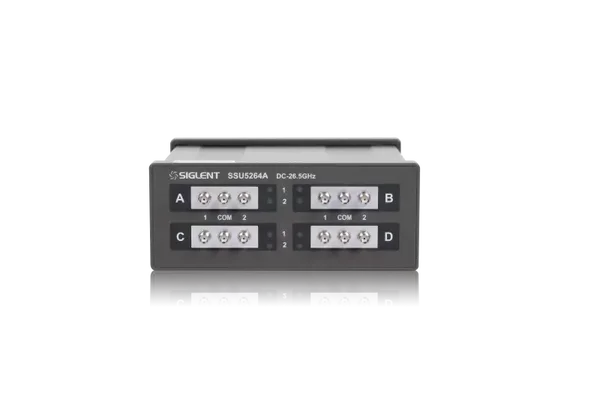

Siglent SSU5264A DC-26.5 GHZ including four SPDT Mechanical Switches
Siglent's new SSU5264A mechanical switch has a frequency range up to 18 GHz. The SSU5264A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 4 independent single-pole double-throw mechanical switches with SMA connectors.
In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.
Compact Design, Fast Measurement
Siglent SSU5264A Key Features
- Maximum frequency: 26.5 GHz.
- 4 SPDT switches
- SCPI Controllable via VISA and EasySSU software

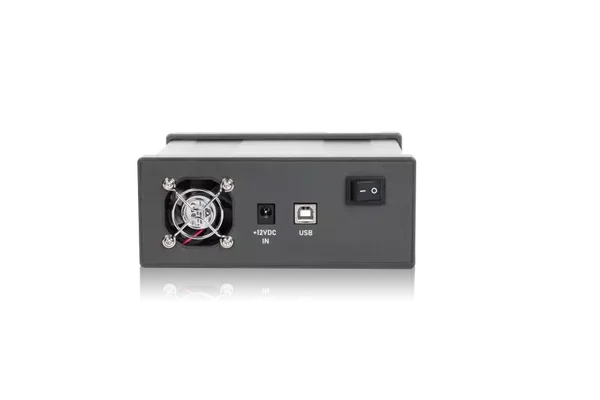

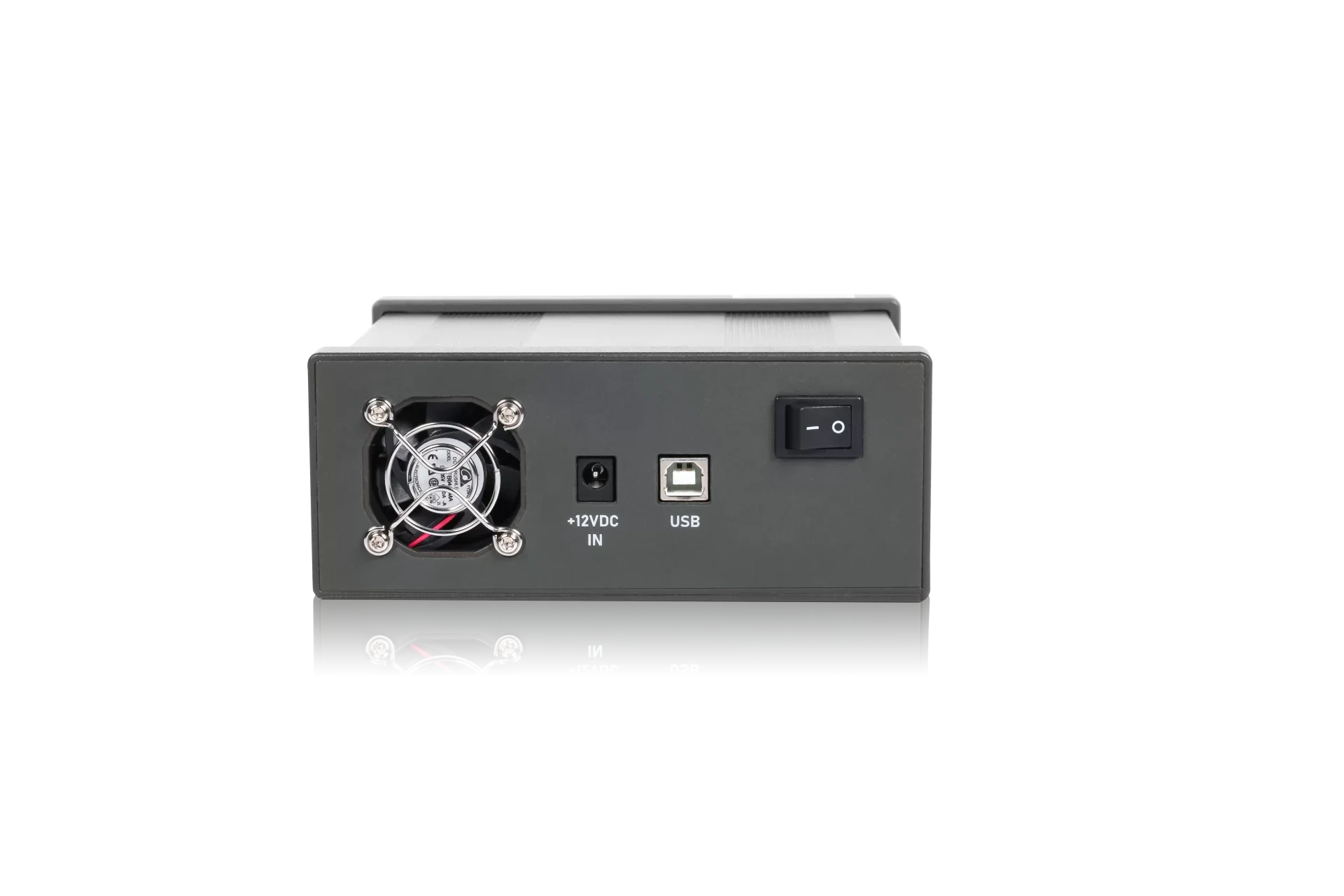

- USB Connectivity
- Size: W×H×D=153×62.4×137.5mm
- RF connector: SMA female
- SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals.
Standard Accessories:
1 x User manual
1 x Power cord
1 x USB Cable
