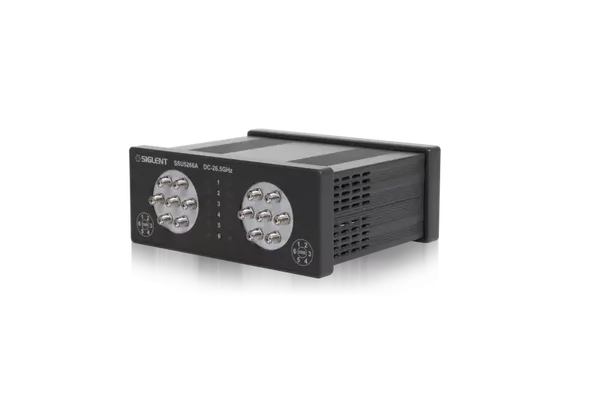

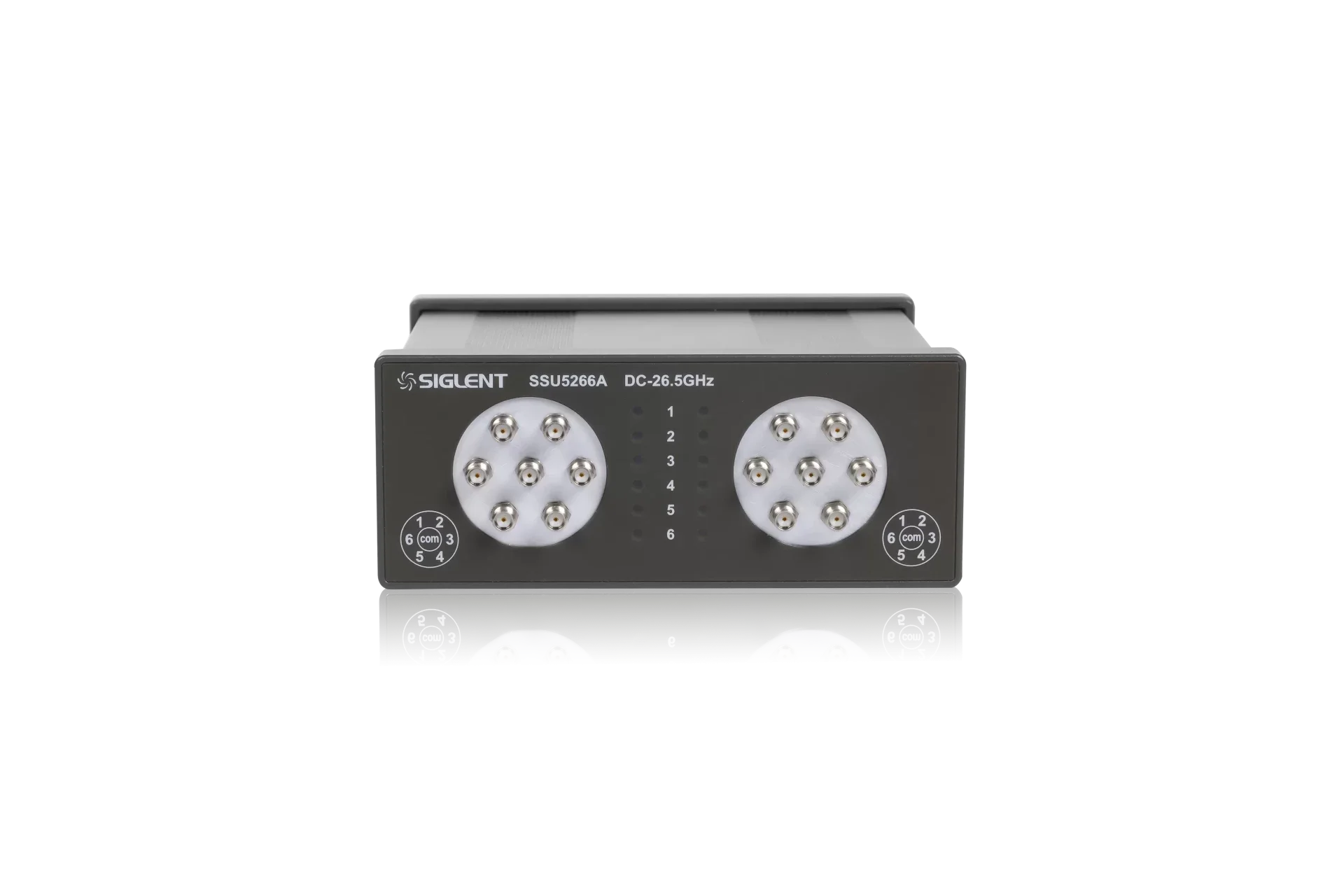

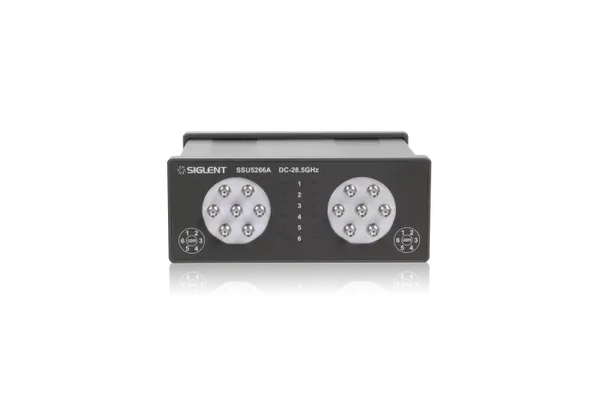

Siglent SSU5265A DC-26.5 GHZ including one SP6T Mechanical Switch

NEW
€2,823.36

Siglent's new SSU5265A mechanical switch has a frequency range up to 18 GHz. The SSU5265A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1 independent single-pole double-throw mechanical switches with SMA connectors.

In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.

Compact Design, Fast Measurement

Siglent SSU5265A Key Features

    • Maximum frequency: 26.5 GHz.
    • 1 SP6T switches
    • SCPI Controllable via VISA and EasySSU software

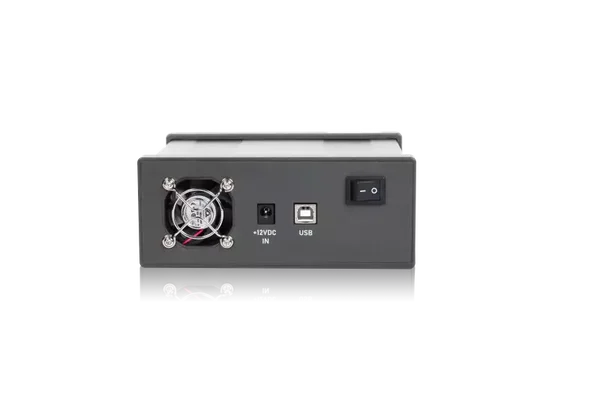

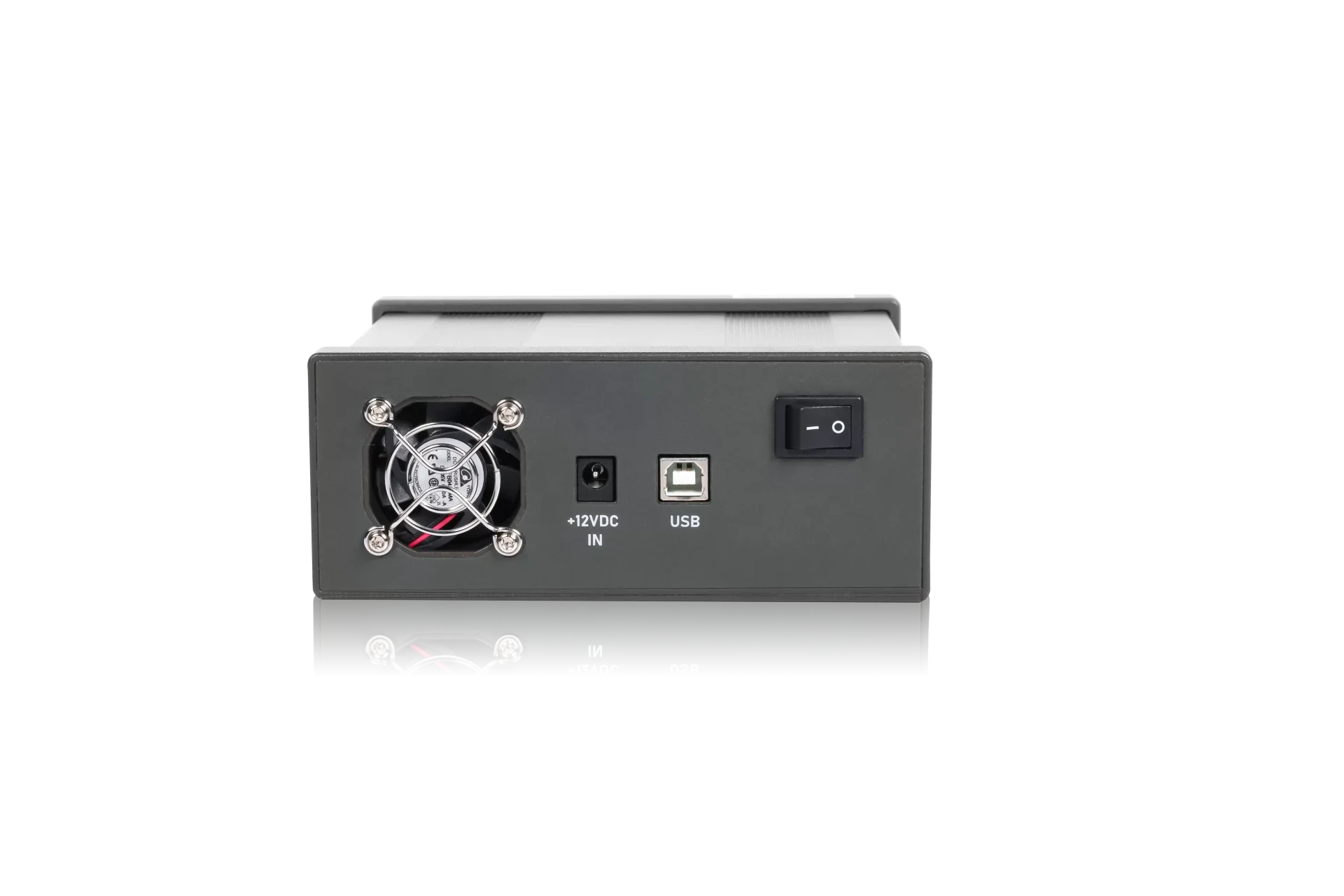

    • USB Connectivity
    • Size: W×H×D=153×62.4×137.5mm
    • RF connector: SMA female
    • SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals.

    Standard Accessories:

    1 x User manual

    1 x Power cord

    1 x USB Cable

    Optional Accessoires:

    Siglent SSU5000A Series User Manual
    PDF – 1,5 MB 100 downloads
    Siglent SSU5000A Series Datasheet
    PDF – 1,2 MB 101 downloads
    Siglent All Products Selection Guide 2023
    PDF – 10,8 MB 95 downloads
    Siglent RF Products Catalog 2023
    PDF – 22,0 MB 100 downloads
