Siglent SDS5000X-PA power analysis option ( license )

Siglent SDS5000X-PA Power Analysis Option

The Siglent SDS5000X-PA Power Analysis option transforms your SDS5000X series oscilloscope into a comprehensive power measurement and analysis platform, ideal for engineers designing, testing, and optimizing modern power electronic systems.

With the SDS5000X-PA installed, the oscilloscope gains a full suite of automated power analysis tools that simplify complex measurements and help you quickly identify inefficiencies or performance issues in switching power supplies and converter circuits.

Key Features

• Comprehensive Power Analysis: Automatically measures and displays key parameters including
  Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off behavior, Transient Response, PSRR, and Efficiency.

• Automated Measurements: Simplifies advanced analysis with guided test menus and clear graphical results, reducing setup time and improving repeatability.

• Wide Probe Compatibility: Designed for use with Siglent DPB series differential probes, CP series current probes, and the DF2001A deskew fixture for accurate timing alignment between voltage and current waveforms.

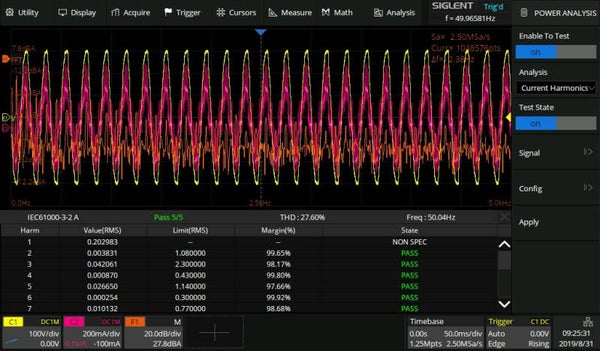

• Permanent Software Activation: Enables the Power Analysis menu directly from Analysis → Power Analysis after installation and license activation.

• Precision and Insight: Delivers both numerical and graphical representations of performance, allowing detailed insight into power conversion efficiency, switching transitions, and harmonic distortion.

Applications

• Switch-Mode Power Supply (SMPS) Design and Debugging
  Evaluate power quality, ripple, and efficiency under various load conditions.

• Motor Drive and Inverter Development
  Analyze switching losses, transient response, and output modulation in variable-frequency drives.

• Power Electronics R&D
  Measure PSRR, efficiency, and dynamic performance of converters, regulators, and amplifiers.

• Compliance and Quality Verification
  Check harmonics and inrush current behavior to ensure designs meet IEC and EN standards.

Technical Requirements

• Compatible with Siglent SDS5000X series oscilloscopes

• Requires firmware version 0.8.7R1B1 or higher

• Recommended accessories:

  • DPB Series differential voltage probes

  • CP Series current probes

  • DF2001A deskew fixture

Ordering Information

• Part Number: SDS5000X-PA

• Type: Software license (permanent activation)

• Function: Enables Power Analysis on Siglent SDS5000X oscilloscopes
