Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer
Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
SVA1032X — 3.2 GHz spectrum & vector network analyzer
The SVA1032X extends coverage to 3.2 GHz and tightens the numbers where it counts: −161 dBm/Hz DANL and total amplitude accuracy under 0.7 dB, with the same integrated VNA, tracking generator and preamplifier. The mid-range choice for RF design and service.
The base instrument is more capable than most: a real vector network analyser (S11/S21, 90 dB dynamic range), a tracking generator and a 20 dB preamplifier are all standard. Grow it with licence options — distance-to-fault, EMI, and analog or digital modulation analysis — on a 10.1″ multi-touch screen you can also drive from a mouse, keyboard or web browser.
Three instruments, one screen
Spectrum analysis, vector network analysis and a tracking generator — then options that reach into EMI and the field.

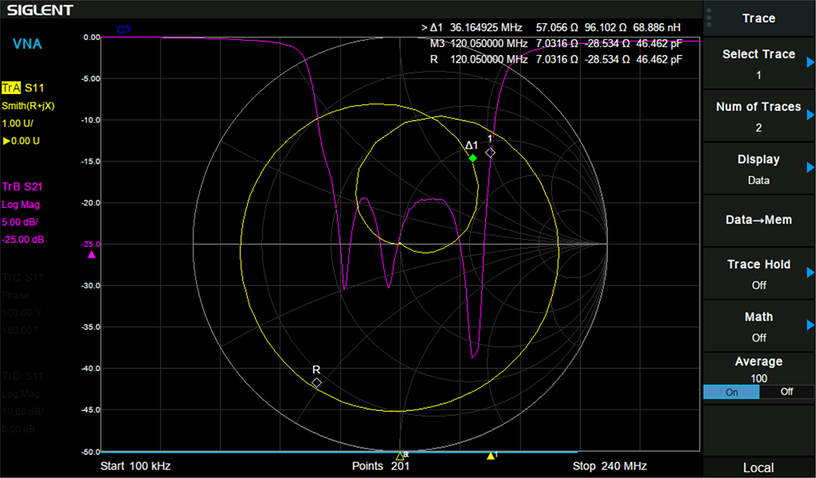

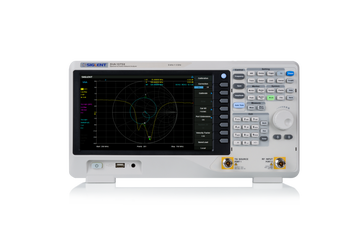

Built-in vector network analyser
This is what sets the SVA1000X apart from an ordinary analyser: a real VNA measuring vector S11 and S21 with 90 dB of dynamic range, up to 3.2 GHz, displayed on a Smith chart or in log-mag. Sweep a filter, match an antenna or measure return loss without a second instrument — and it is standard, not an add-on.

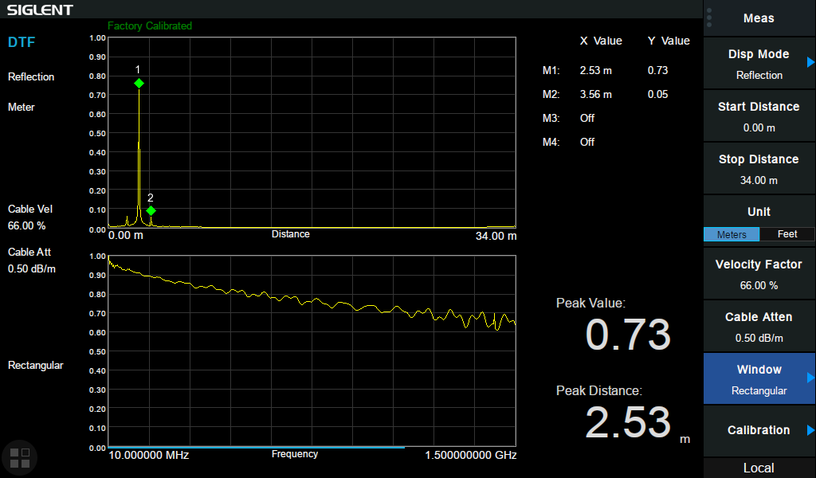

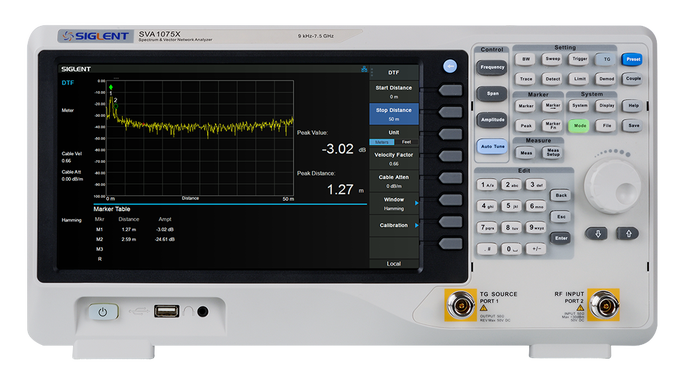

Distance-to-Fault — find the break by metres
With the DTF licence the analyser locates a fault in a cable or feeder by distance using time-domain reflectometry — the peak on the trace is the metres to the problem. The measurement that turns a bench instrument into a field tool for base-station and antenna maintenance.

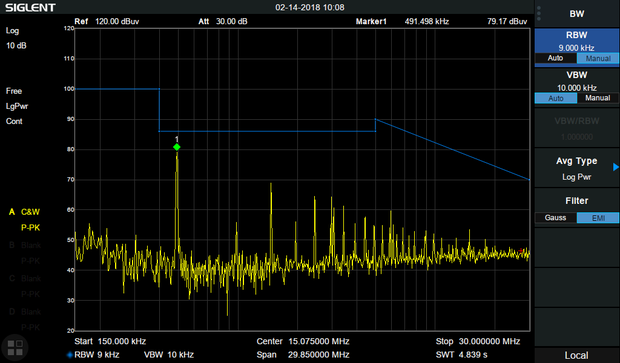

Pre-compliance EMI
The EMI licence adds CISPR 16-1-1 filter bandwidths and a quasi-peak detector — find and fix emission problems on your own bench before the test house does.

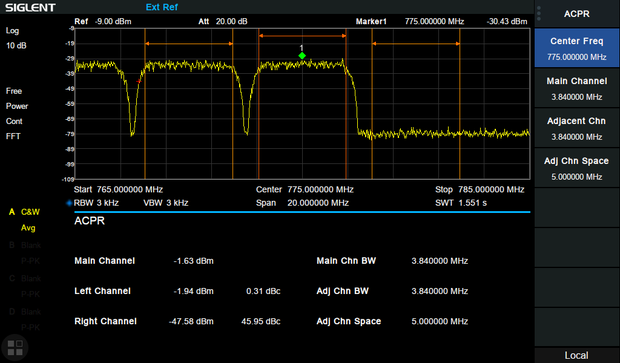

Advanced measurement kit
ACPR, channel power, occupied bandwidth and spectrum monitoring — plus advanced broadcast measurements — through the AMK licence, for transmitter and broadcast work.

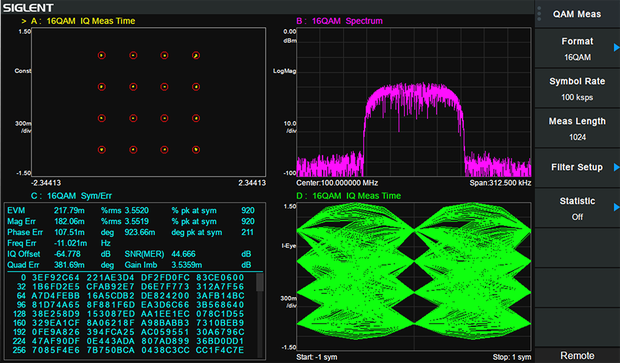

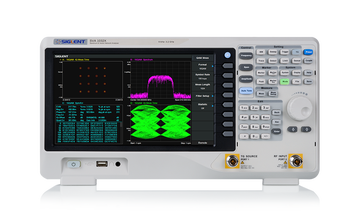

Modulation analysis
Analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) modulation analysis as licensed options — demodulate, view the constellation and read EVM and error metrics.
Key features
- Spectrum analyser 9 kHz – 3.2 GHz with a built-in vector network analyser (100 kHz – 3.2 GHz, S11/S21)
- Tracking generator and 20 dB preamplifier standard — no extra licences to source or improve sensitivity
- DANL −161 dBm/Hz (typ.) · phase noise < −98 dBc/Hz · total amplitude accuracy < 0.7 dB
- RBW 1 Hz – 1 MHz in a 1-3-10 sequence · sweep 1 ms – 3200 s
- 90 dB VNA dynamic range for reflection and transmission measurement
- 10.1″ multi-touch screen — and mouse, keyboard and web-browser remote control
- Reflection, cable and antenna work in the field with the optional Distance-to-Fault licence
- Pre-compliance EMI with the optional CISPR 16-1-1 filters and quasi-peak detector
- Analog and digital modulation analysis (AM/FM, ASK/FSK/PSK/MSK/QAM) as licensed options
- USB, LAN and web-browser control — drive it from a PC or a phone
Application examples
Spectrum analysis and signal hunting
A 3.2 GHz analyser with −161 dBm/Hz DANL and RBW to 1 Hz resolves low-level and closely-spaced signals — the everyday job an SVA1000X does before you reach for any option.
Filter, amplifier and component test
The tracking generator and integrated VNA turn the same box into a scalar and vector measurement set — sweep a filter's response, measure return loss and gain, and see S11/S21 on a Smith chart without a second instrument.
Cable and antenna field service
Add the Distance-to-Fault licence and the SVA1000X becomes a field tool that locates the fault in a feeder by distance — the measurement that gets a base station back on air.
Pre-compliance EMI
The EMI licence brings CISPR 16-1-1 filter bandwidths and a quasi-peak detector, so you can find and fix emission problems on the bench long before the test house.
Modulation and broadcast measurement
Analog and digital modulation analysis and the Advanced Measurement Kit (ACPR, channel power, monitoring) cover transmitter and broadcast work as your needs grow.

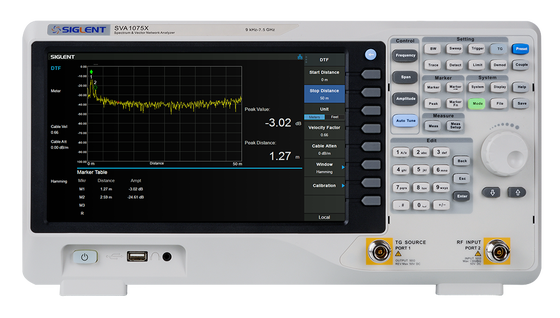

Every angle

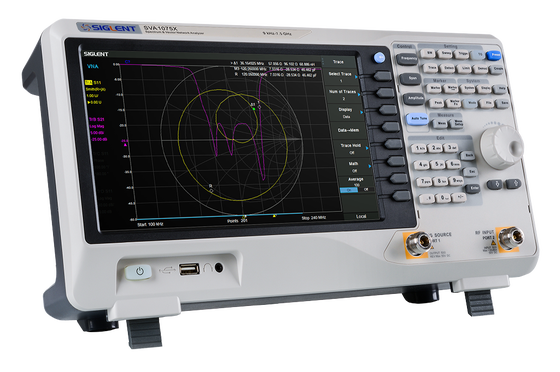

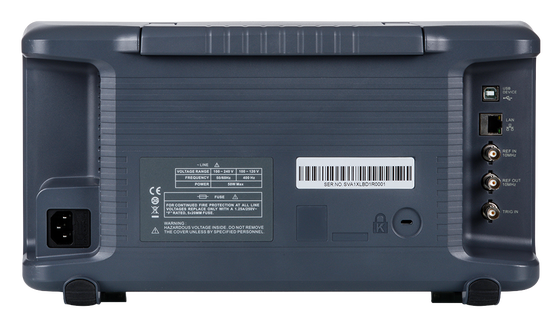

The SVA1032X up close — note the N-type RF input and tracking-generator source.
Specifications
| Spectrum analyzer frequency | 9 kHz – 3.2 GHz |
| Vector network analyzer frequency | 100 kHz – 3.2 GHz — vector S11 & S21, 90 dB dynamic range |
| Tracking generator | 100 kHz – 3.2 GHz (standard) |
| DANL (typ., normalised to 1 Hz) | −161 dBm/Hz |
| Phase noise (1 GHz, 10 kHz offset, typ.) | < −98 dBc/Hz |
| Total amplitude accuracy | < 0.7 dB |
| Resolution bandwidth (RBW) | 1 Hz – 1 MHz, 1-3-10 sequence |
| Sweep time | 1 ms – 3200 s |
| Preamplifier | 20 dB (nom.) — standard |
| Reference level | −200 dBm to +30 dBm, 1 dB steps |
| Display | 10.1″ multi-touch screen — mouse and keyboard supported |
| Standard modes | Spectrum analysis · vector network analysis (S11/S21) · tracking generator |
| Optional modes (licence) | Distance-to-Fault · EMI (CISPR 16-1-1 + quasi-peak) · advanced measurement kit · analog & digital modulation analysis |
| Connectivity | USB · LAN · web-browser remote control (PC and mobile) · USB-GPIB optional |
From the official SVA1000X series data sheet (DS0701X E05C); subject to change, errors & omissions excepted.
Licence options
Software licences that unlock extra measurement modes on the SVA1032X — buy only what you need, add more later.
| Order code | Unlocks | Price | |
|---|---|---|---|
| SVA1000X-DTF | Distance-to-Fault Locate cable and antenna faults by distance using time-domain reflectometry — the field engineer's option. | €249.00 | View |
| SVA1000X-EMI | EMI measurement Adds the CISPR 16-1-1 EMI filter bandwidths and a quasi-peak detector for pre-compliance EMI testing. | €389.00 | View |
| SVA1000X-AMK | Advanced Measurement Kit ACPR, channel power, occupied bandwidth, spectrum monitoring and advanced broadcast measurements. | €364.00 | View |
| SVA1000X-DMA | Digital modulation analysis Vector analysis of ASK, FSK, PSK, MSK and QAM signals — constellation, EVM and error metrics. | €469.00 | View |
| SVA1000X-AMA | Analog modulation analysis AM and FM modulation analysis with the demodulated waveform and modulation metrics. | €286.00 | View |
| SVA1000X-VNA | Vector network analysis Enables vector S11 / S21 network analysis on units that shipped in a spectrum-only configuration. | €529.00 | View |
Spectrum analysis, the vector network analyser (S11/S21), the tracking generator and the preamplifier are standard on the SVA1032X. The VNA licence applies only to units supplied in a spectrum-only configuration — tell us your serial number and we will confirm what is already enabled before you order.
Accessories
In the box: USB cable, power cord, quick-start guide and calibration certificate. Below are the accessories most often ordered with the SVA1032X.
N-SMA and N-N cables, adapters and a 10 dB attenuator — the everyday kit for connecting the analyser to a DUT.

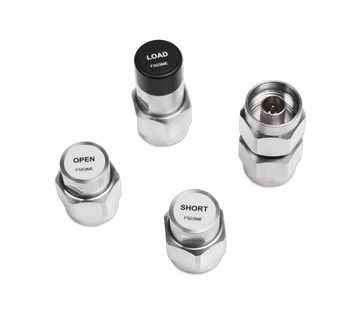

N-male mechanical VNA calibration kit to 4.5 GHz — open, short and load for accurate S-parameter measurement.

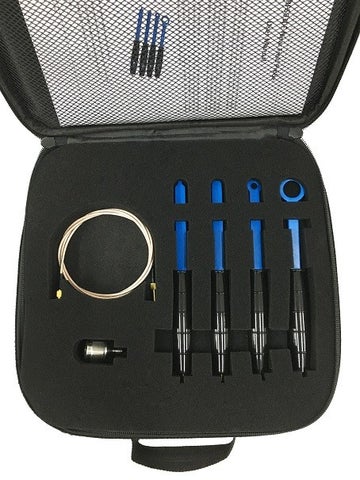

300 kHz–3 GHz near-field probe set — locate emission hotspots on a board during EMI debug.

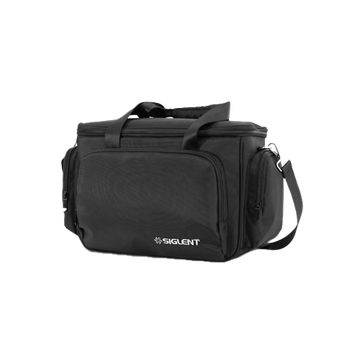

Padded soft case for taking the SVA1000X into the field.

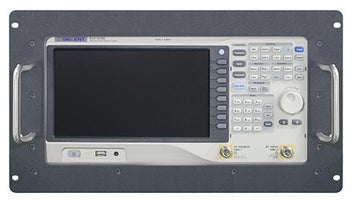

6U rack mount kit for building the analyser into a test rack.
Adds GPIB alongside the standard USB and LAN interfaces.
RF cables (N-SMA / N-N / SMA-SMA to 18 GHz), further N-type and 3.5 mm calibration kits and the SEM5000A electronic calibration module are also available — ask us for the right set for your connectors.
The other models
Same platform and software — choose by frequency reach and RF performance.
Which SVA1000X, and which licences?
Tell us your frequency range and what you measure — spectrum, VNA, DTF, EMI or modulation — and we will put together the right model and licence bundle, with EU stock and support.
Downloads
These documents cover the whole SVA1000X series, including the SVA1032X.
