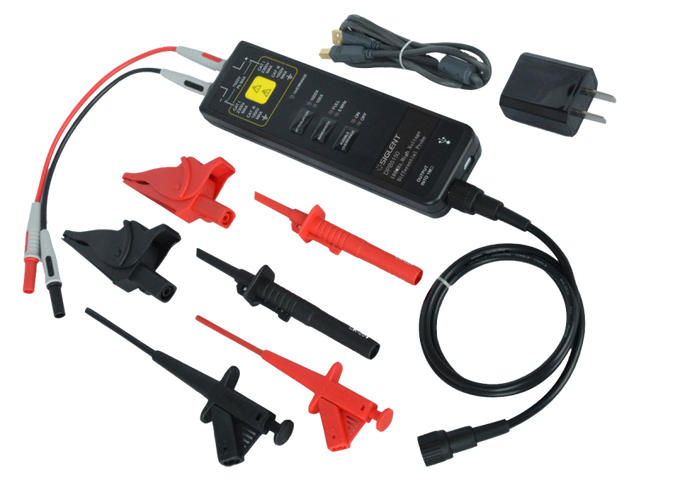

Siglent DPB5150 70MHz Differential High-Voltage Probe
Siglent DPB5150 70MHz Differential High-Voltage Probe with a maximum input differential voltage: 1500 V (DC + AC)
70 MHz differential high-voltage probe, ±1,500 V
The DPB5150 measures up to ±1,500 V between its two tips with 70 MHz of bandwidth, a ≤5 ns rise time and ±2% DC accuracy. It adds a switchable 5 MHz bandwidth limit, an offset setting and USB power over the entry-level DPB1300.
Neither tip is referenced to earth, which is the entire point: you can put it across a floating rail, a high-side gate-source or a mains-referenced switch node without connecting that point to earth through the instrument. Two attenuation ratios — 50X up to ±150 V for the lowest noise, 500X for the full range. A switchable bandwidth limit cleans up a noisy trace when you only want the envelope.
Before you order
Compare the DPB6150A before you order. It measures the same ±1,500 V between the tips, reaches 100 MHz rather than 70, and costs €750 against €825. It also tolerates more common-mode voltage — how far the probe pair may float above earth — at 1000 V CAT III / 600 V CAT IV against this probe’s 600 V CAT III / 1000 V CAT II. Those are two different limits and both apply at once: the differential rating is what you may measure, the common-mode rating is where you may measure it. On both, the newer probe is ahead — we would rather tell you that than sell you the wrong one.
What it does well
The things that decide whether a high-voltage measurement is both accurate and safe.
No earth reference at the tips
A passive probe’s ground clip is wired to the oscilloscope chassis and therefore to mains earth. This one measures the difference between two floating points and sends only that difference to the scope, so the circuit never sees an earth connection.
70 MHz bandwidth, ≤5 ns rise time
The rise time is the number that matters on a switching edge — it decides whether you see the real overshoot and ringing or a rounded approximation of them.
Switchable 5 MHz bandwidth limit
High-frequency noise on a power measurement is often not the signal you came for. One switch removes it without changing probe or setup.
Rated 600 V CAT III · 1000 V CAT II
The measurement category describes the transient energy the installation can deliver, not just the voltage it sits at. Match the category to where you are probing first.
Over-range indicator and alarm
A red indicator and an audible alarm the moment the input exceeds the selected range, so a clipped trace gets noticed on the bench. The alarm can be silenced when it becomes a nuisance.
CMRR better than 80 dB at DC
>80 dB at DC, >60 dB at 100 kHz and >50 dB at 1 MHz. Common-mode rejection is what stops a large floating voltage swamping the small differential signal you actually want.
Key specifications
- Bandwidth 70 MHz (−3 dB), rise time ≤5 ns
- Maximum differential input ±1,500 V
- Attenuation 50X and 500X
- ±2% DC accuracy
- Common mode to earth: 600 V CAT III · 1000 V CAT II
- Input impedance 5 MΩ single-ended / 10 MΩ across the inputs
- Input capacitance <4 pF / <2 pF
- Noise <50 mV at 50X, <300 mV at 500X
Application examples
Half-bridge and gate-drive measurement
High-side gate-source voltage on a bridge floats by definition. This is the measurement that destroys probes and oscilloscope front ends when it is attempted with a passive probe and a ground clip.
Motor drives and inverters
Phase-to-phase and DC-link voltage on a drive, where nothing in the measurement sits at earth potential and the common-mode swing is large.
Switch-mode power supply design
Switch-node voltage, snubber behaviour and rectifier stress — the measurements that decide component ratings, efficiency and how long the supply lasts.
Mains and power-line work
Directly across a live conductor, safely, with the measurement category matched to where you are probing rather than just the voltage.
Power electronics development
Half-bridge and inverter nodes at up to 1,500 V, with enough bandwidth for the switching edge and a filter for when you want only the envelope.
Specifications
| Bandwidth (−3 dB) | 70 MHz |
|---|---|
| Rise time | ≤5 ns |
| DC accuracy | ±2% |
| Attenuation ratios | 50X and 500X |
| Maximum differential test voltage (DC + peak AC) | ±150 V at 50X · ±1,500 V at 500X |
| Maximum common-mode voltage to earth | 600 V CAT III · 1000 V CAT II |
| Input impedance | 5 MΩ single-ended to ground · 10 MΩ across the two inputs |
| Input capacitance | <4 pF single-ended · <2 pF across the two inputs |
| CMRR | >80 dB at DC · >60 dB at 100 kHz · >50 dB at 1 MHz |
| Noise (Vrms) | <50 mV at 50X · <300 mV at 500X |
| Propagation delay | Probe ≈9 ns · BNC lead (1 m) ≈5 ns |
| Bandwidth limit | ≥−3 dB at 5 MHz — switchable |
| Differential overvoltage detection | ≥150 V at 50X · ≥1,500 V at 500X |
| Over-range indication | Red indicator and audible alarm (can be silenced), with automatic save |
| Offset setting | Yes — set in test mode |
| Terminating load | ≥100 kΩ |
| Power | USB 5 V / 1 A adapter |
From the SIGLENT Probe Data Sheet. Differential voltage is measured between the two tips; the common-mode rating is how far the pair may float above earth. Both limits apply at the same time. Errors and omissions excepted.
