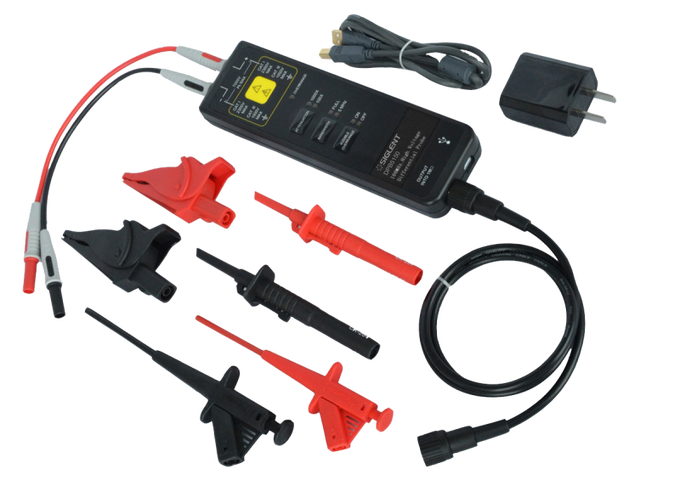

Siglent DPB5700A 100MHz Differential High-Voltage Probe
Siglent DPB5700A 100MHz Differential High-Voltage Probe with a maximum input differential voltage: 7000 V (DC + AC)
100 MHz differential high-voltage probe, ±7,000 V
The DPB5700A measures up to ±7,000 V between its two tips with 100 MHz of bandwidth, a ≤3.5 ns rise time and ±2% DC accuracy. It is the highest-voltage and the fastest probe in the DPB5000 range at once: ±7,000 V with a 3.5 ns rise time.
Neither tip is referenced to earth, which is the entire point: you can put it across a floating rail, a high-side gate-source or a mains-referenced switch node without connecting that point to earth through the instrument. Two attenuation ratios — 100X up to ±700 V for the lowest noise, 1000X for the full range. Nothing else here combines that voltage with that speed.
What it does well
The things that decide whether a high-voltage measurement is both accurate and safe.
No earth reference at the tips
A passive probe’s ground clip is wired to the oscilloscope chassis and therefore to mains earth. This one measures the difference between two floating points and sends only that difference to the scope, so the circuit never sees an earth connection.
100 MHz bandwidth, ≤3.5 ns rise time
The rise time is the number that matters on a switching edge — it decides whether you see the real overshoot and ringing or a rounded approximation of them.
7,000 V and 3.5 ns together
The DPB5700 gives you the voltage at 5 ns; this gives you the same voltage at 3.5 ns. On a fast traction inverter edge that is the difference between measuring the overshoot and estimating it.
Rated 1000 V CAT III · 2300 V CAT I
The measurement category describes the transient energy the installation can deliver, not just the voltage it sits at. Match the category to where you are probing first.
Over-range indicator and alarm
A red indicator and an audible alarm the moment the input exceeds the selected range, so a clipped trace gets noticed on the bench. The alarm can be silenced when it becomes a nuisance.
CMRR better than 80 dB at DC
>80 dB at DC, >60 dB at 100 kHz and >50 dB at 1 MHz. Common-mode rejection is what stops a large floating voltage swamping the small differential signal you actually want.
Key specifications
- Bandwidth 100 MHz (−3 dB), rise time ≤3.5 ns
- Maximum differential input ±7,000 V
- Attenuation 100X and 1000X
- ±2% DC accuracy
- Common mode to earth: 1000 V CAT III · 2300 V CAT I
- Input impedance 20 MΩ single-ended / 40 MΩ across the inputs
- Input capacitance <5 pF / <2.5 pF
- Noise <200 mV at 100X, <1.2 V at 1000X
Application examples
Half-bridge and gate-drive measurement
High-side gate-source voltage on a bridge floats by definition. This is the measurement that destroys probes and oscilloscope front ends when it is attempted with a passive probe and a ground clip.
Motor drives and inverters
Phase-to-phase and DC-link voltage on a drive, where nothing in the measurement sits at earth potential and the common-mode swing is large.
Switch-mode power supply design
Switch-node voltage, snubber behaviour and rectifier stress — the measurements that decide component ratings, efficiency and how long the supply lasts.
Mains and power-line work
Directly across a live conductor, safely, with the measurement category matched to where you are probing rather than just the voltage.
High-voltage wide-bandgap converters
SiC traction and grid inverters where both the voltage and the edge speed are at the top of what a differential probe can follow.
Specifications
| Bandwidth (−3 dB) | 100 MHz |
|---|---|
| Rise time | ≤3.5 ns |
| DC accuracy | ±2% |
| Attenuation ratios | 100X and 1000X |
| Maximum differential test voltage (DC + peak AC) | ±700 V at 100X · ±7,000 V at 1000X |
| Maximum common-mode voltage to earth | 1000 V CAT III · 2300 V CAT I |
| Input impedance | 20 MΩ single-ended to ground · 40 MΩ across the two inputs |
| Input capacitance | <5 pF single-ended · <2.5 pF across the two inputs |
| CMRR | >80 dB at DC · >60 dB at 100 kHz · >50 dB at 1 MHz |
| Noise (Vrms) | <200 mV at 100X · <1.2 V at 1000X |
| Propagation delay | Probe ≈9 ns · BNC lead (1 m) ≈5 ns |
| Bandwidth limit | ≥−3 dB at 5 MHz — switchable |
| Differential overvoltage detection | ≥700 V at 100X · ≥7,000 V at 1000X |
| Over-range indication | Red indicator and audible alarm (can be silenced), with automatic save |
| Offset setting | Yes — set in test mode |
| Terminating load | ≥100 kΩ |
| Power | USB 5 V / 1 A adapter |
From the SIGLENT Probe Data Sheet. Maximum differential test voltage is what you may measure between the two tips. Maximum common-mode voltage to earth is how far the pair may float above earth. They are different numbers and both apply at the same time. Errors and omissions excepted.
