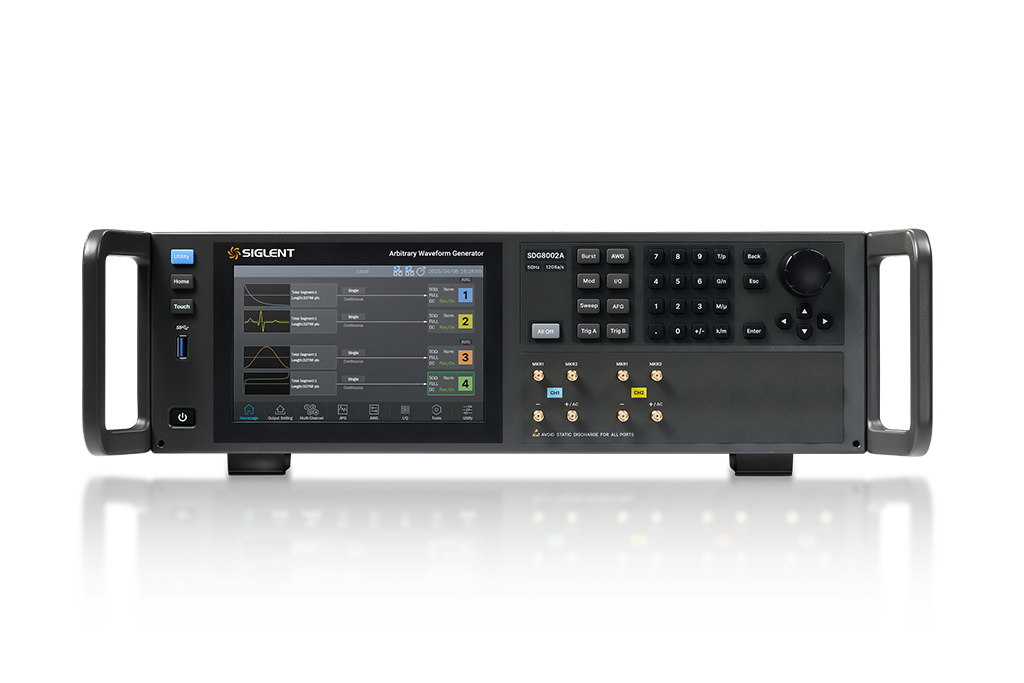

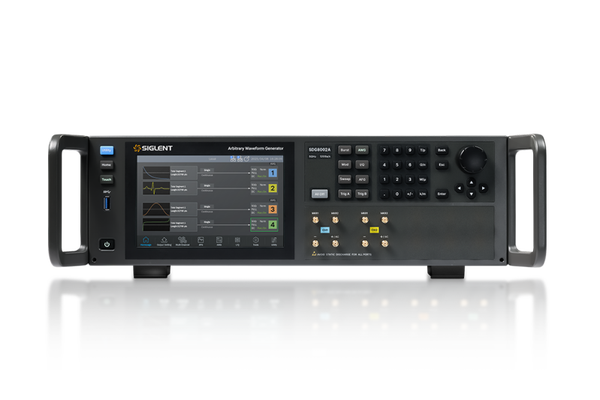

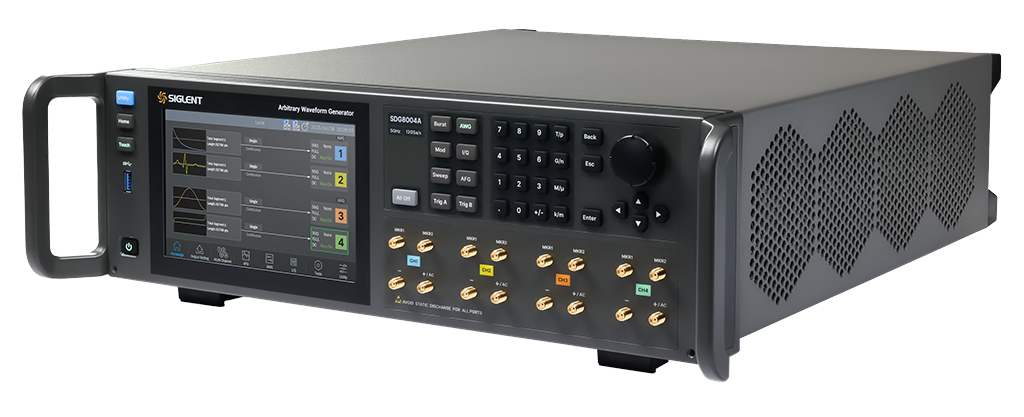

Siglent SDG8002A 2CH AWG up to 5 GHz and 12 GSa/s sampling rate.
The SIGLENT SDG8002A is a high-performance 2-channel arbitrary waveform generator with up to 5 GHz output frequency at 12 GSa/s sampling rate and 16-bit vertical resolution. It features advanced TrueArb and EasyPulse technology for low-jitter waveforms and precise pulse control, with up to 4 Gpts memory per channel.
The instrument supports multi-pulse, multi-tone, chirp, PRBS up to 1.25 Gbps, rich modulation, and full IQ capability. Ideal for 5G/6G development, high-speed serial testing, radar, and semiconductor validation.
Product overview
The SDG8002A brings five distinct signal-generation engines together in one 2-channel chassis — a function generator, a true arbitrary waveform generator, an I/Q vector-signal generator, an analog & digital modulation generator and a protocol-signal generator. Moving between them is a single menu selection: there is no hardware to add and no re-cabling, so one instrument covers work that traditionally demanded a separate high-end AWG and a standalone vector signal generator side by side on the bench.
Waveforms are synthesised with DAC interpolation, which pushes image spectra far from the carrier and lets a simple, low-distortion reconstruction filter clean up the output. The pay-off is high fidelity with flat group delay, low quantisation noise and a stable, repeatable signal — held together by a standard high-precision 10 MHz OCXO timebase and a low phase-noise synthesis chain that stays clean from baseband right up to the top of the range.
This makes the SDG8002A a cost-effective route to wideband I/Q generation — up to 2 GHz of modulation bandwidth — for 5G NR, Wi-Fi, LTE, Bluetooth and IoT development, while its deep memory, PRBS patterns and multi-pulse, multi-tone and chirp functions extend it to high-speed serial, radar & LiDAR and power-semiconductor characterisation. It is designed for advanced R&D across communications, semiconductor, automotive and medical electronics, where signal speed, accuracy and flexibility matter more than a single fixed function.
Five instruments in one
A single mode selector reconfigures the SDG8002A between five signal-generation engines — no extra hardware, no re-cabling.
AFG — function generator
Standard waveforms, harmonics (to the 20th), Gaussian noise, PRBS and arbitrary waveforms, with frequency hopping. Sine to 2 GHz via DDS.

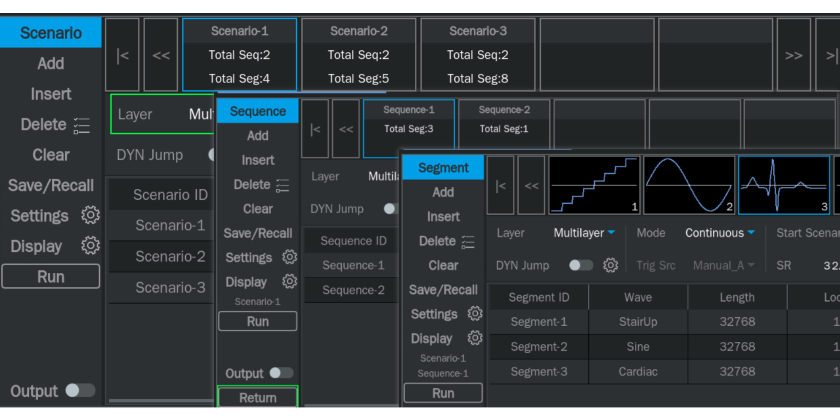

AWG — arbitrary generator
Point-by-point playback to 5 GSa/s with waveform recall (built-in, stored, EasyWaveX), segment editing, multi-tone and multi-pulse; up to 512 scenarios / 4096 sequences / 16 384 segments.
I/Q signal generator
Vector I/Q signals with ASK, PSK, QAM, FSK, MSK, OFDM and multi-tone modulation, at symbol rates from 500 Symb/s to 2 GSymb/s.
Modulated signal generator
Analog and digital modulation — AM, DSB-SC, FM, PM, ASK, FSK, PSK and PWM — plus frequency/amplitude sweep and pulse.
Protocol signal generator
Ready-made protocol signals for Bluetooth, IoT, LTE TDD/FDD, 5G NR and IEEE 802.11ax / 802.11be, generated with SigIQPro and EasyIQ.
Four output modes, one connector
Each channel drives an SMA output that can be configured for the best trade-off between amplitude, bandwidth and fidelity — from clean direct RF to amplified wideband pulses.
| Output mode | Coupling | Max amplitude | Analog BW (−3 dB) | Amplifier | Best for |
|---|---|---|---|---|---|
| DC-HBW DC High Bandwidth | DC | 750 mVpp | DC – 2 GHz | No | Wideband baseband & pulses — highest bandwidth |
| DC-AMP DC Amplified | DC | 1.5 Vpp | DC – 2 GHz | Yes | Large-amplitude signals with DC content |
| AC-DIR AC Direct | AC | ~158 mVpp | 10 MHz – 1.7 GHz | No | Clean RF — best signal fidelity |
| AC-AMP AC Amplified | AC | ~2 Vpp | 10 MHz – 2 GHz | Yes | RF signals needing higher amplitude |
The direct paths (DC-HBW, AC-DIR) are standard. The amplified paths DC-AMP and AC-AMP are enabled by the SDG8000A-DCAMP and SDG8000-ACAMP options — see Options & upgrades below.
Signal generation in depth
PRBS3 to PRBS32 patterns, 20 Mbps – 1.25 Gbps bit rate, 250 ps – 1 µs edge transition — for serial-link and jitter test.
Linearly swept frequency (100 Sa/s – 5 GSa/s), independent start/stop/duration — for radar, sonar and acoustic measurement.
Any number of non-harmonic tones from a start frequency and step — for OFDM, intermodulation and frequency-response testing.
Up to 30 pulses per burst, sample rate to 5 GSa/s — for power-device switching (MOSFET/IGBT turn-on/off) measurement.

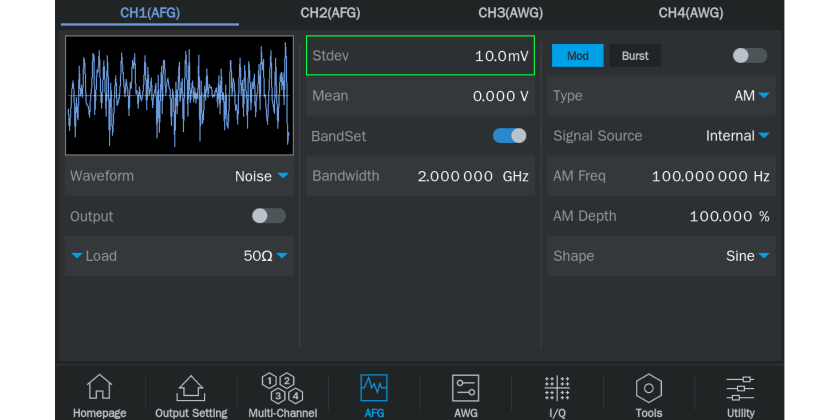

Gaussian white noise, adjustable 10 MHz – 2 GHz bandwidth, with configurable superposition & SNR for real-world simulation.
Linear/log frequency & amplitude sweep (up/down/up-down) and N-cycle or gated burst on any carrier.
Multiple markers per segment on an independent path, with adjustable level, amplitude and offset — precise scope triggering and multi-instrument sync.
Merging, duplication, coupling (frequency / amplitude / phase) and synchronized tracking across channels, with phase-lock modes.

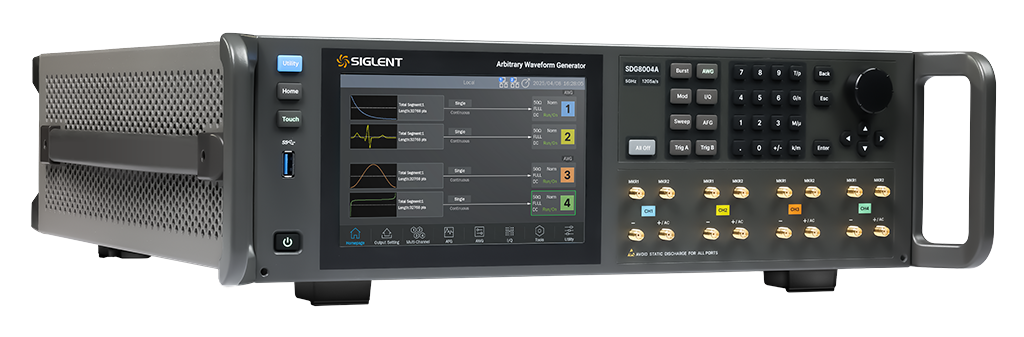

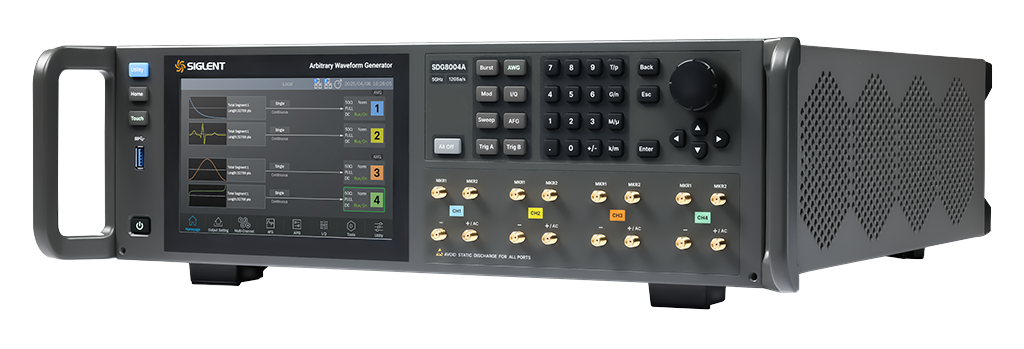

Front, rear & every angle

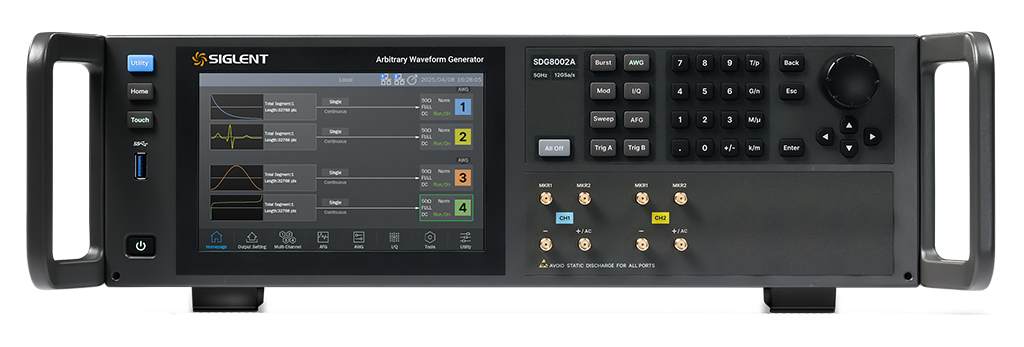

A 7-inch capacitive touchscreen and function shortcuts up front; a full complement of clock, trigger and control I/O at the rear for multi-instrument synchronization.

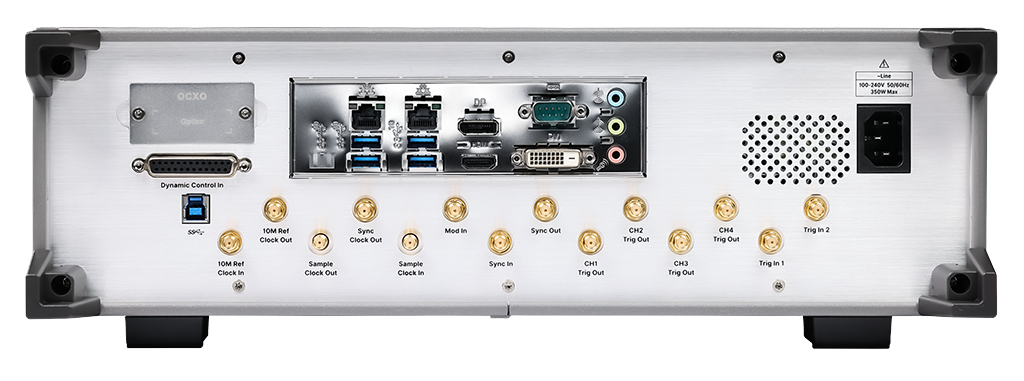

Rear-panel connectivity
- High-precision 10 MHz OCXO reference source
- 10 MHz reference clock input / output
- Sample-clock input / output
- Sync reference clock output (Sync In / Out for multi-device synchronization)
- Channel trigger outputs & external trigger inputs
- External modulation-signal input
- USB Host + USB Device (PC control / programming)
- LAN (remote & web control)
- Dynamic-control input connectors
- Audio I/O & microphone, video output
Low phase noise across the band
A standard high-precision 10 MHz OCXO (±100 ppb) and a low-noise synthesis chain keep the SDG8002A clean from baseband to 4 GHz — measured at a 10 kHz offset.
Where it is used
Communications
5G NR / LTE / Wi-Fi & Bluetooth signal validation, BER and interference testing, IoT protocol verification.
Semiconductor
MEMS-sensor actuation, RF / power / opto-electronic device excitation for linearity, harmonic and reliability tests.
Medical electronics
Physiological-signal simulation, multi-channel sync and sensor calibration for medical-device test.
Automotive
In-vehicle communication-bus signal generation, BER and interference simulation, sensor & actuator drive testing.
High-speed pulse / step
Ultra-fast rise-time pulses and steps for radar, LiDAR and semiconductor switching characterization.
High-speed serial
PCIe and other serial patterns for compliance, BER and eye-diagram analysis (with serial-data option).

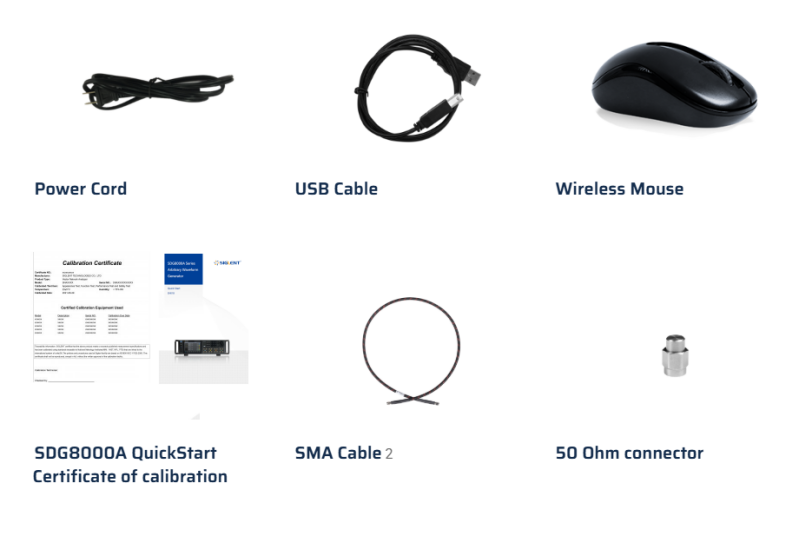

In the box
Every SDG8002A ships with the standard accessories below. Full user & programming manuals are available from the Downloads section.
Region-specific mains lead (IEC C13)
USB 2.0 Type-A to Type-B for PC control & programming

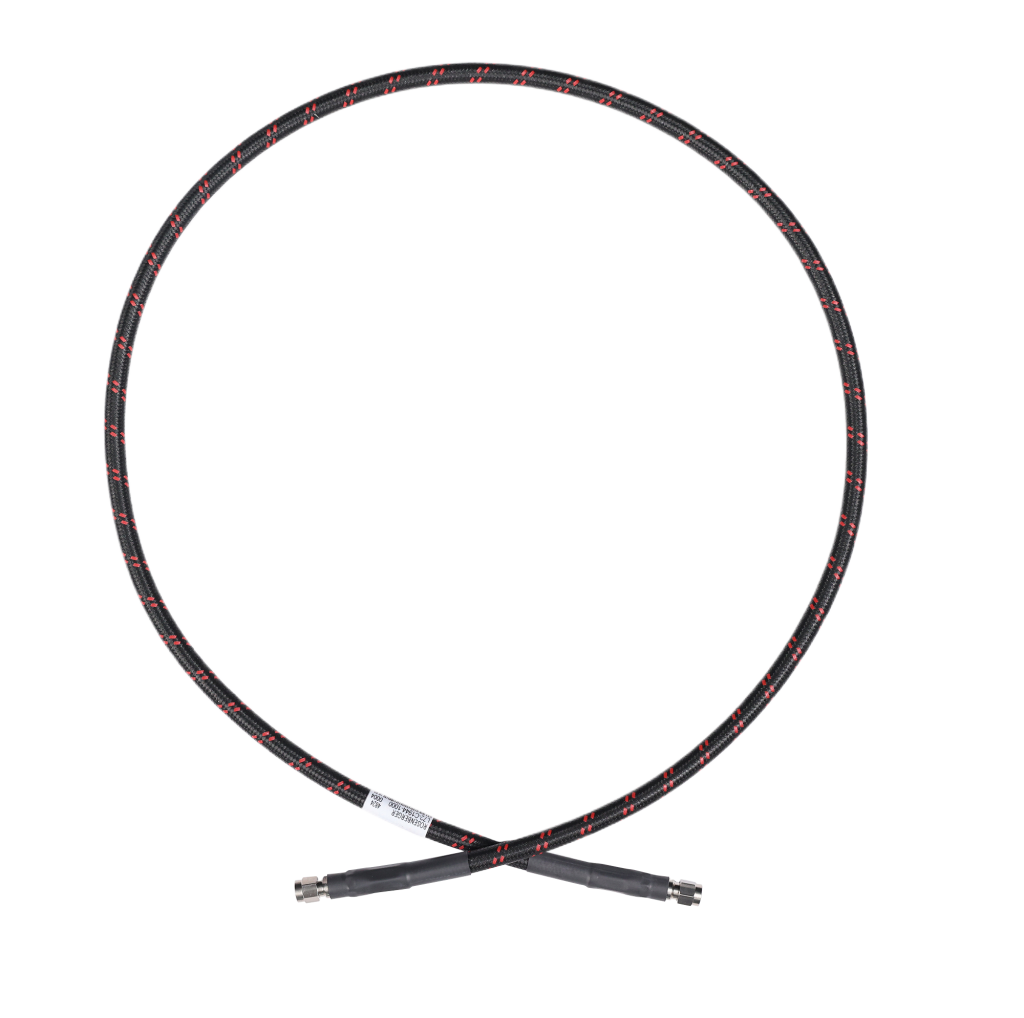

50 Ω SMA test cable

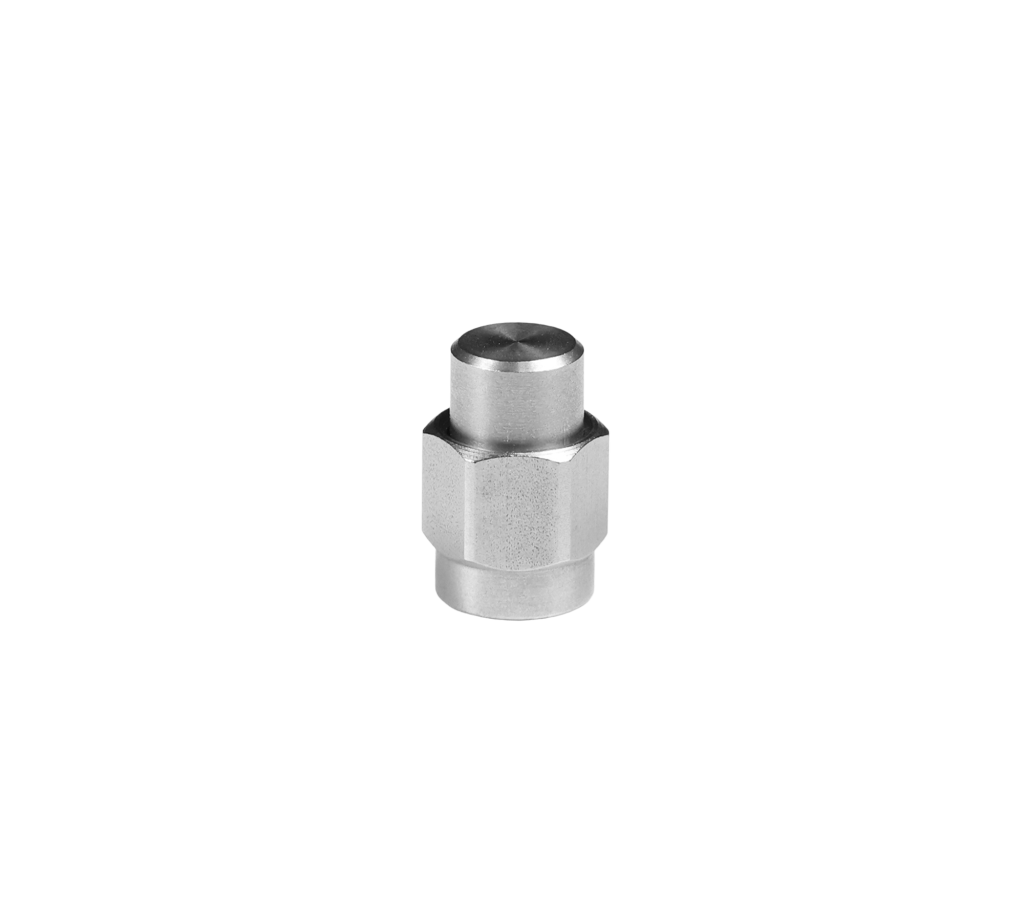

50 Ω SMA connector / feed-through
For fast on-screen setup & editing
Printed getting-started guide
Factory calibration certificate
Options & upgrades
Extend the SDG8002A with licensed functions and hardware options — add them at purchase or later. All options apply identically across the SDG8000A series.
Adds full I/Q vector signals — ASK, PSK, QAM, FSK, MSK, OFDM and multi-tone at up to 2 GSymb/s, driven by SigIQPro.

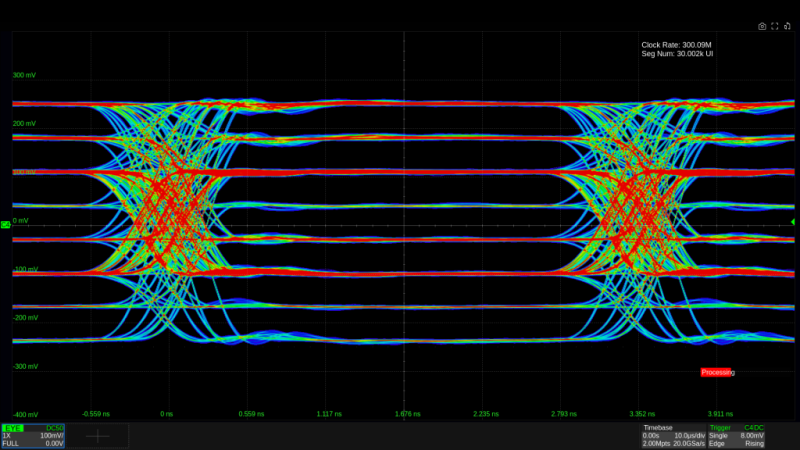

Generates PCIe and other high-speed serial data patterns for compliance, BER and eye-diagram testing.

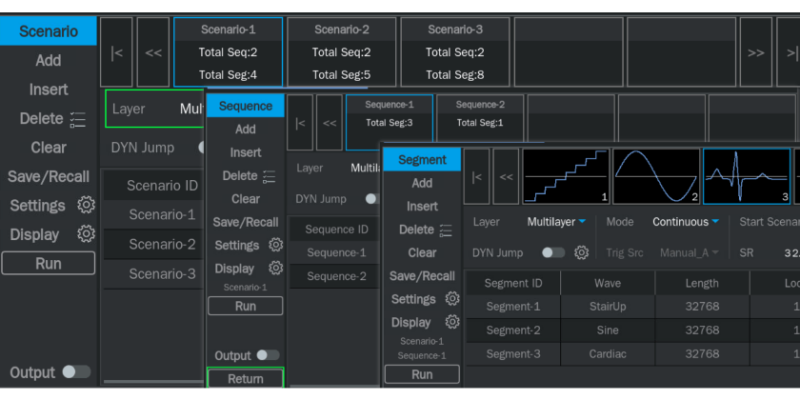

Flexible sequence playback — up to 512 scenarios / 4096 sequences / 16 384 segments with conditional control.

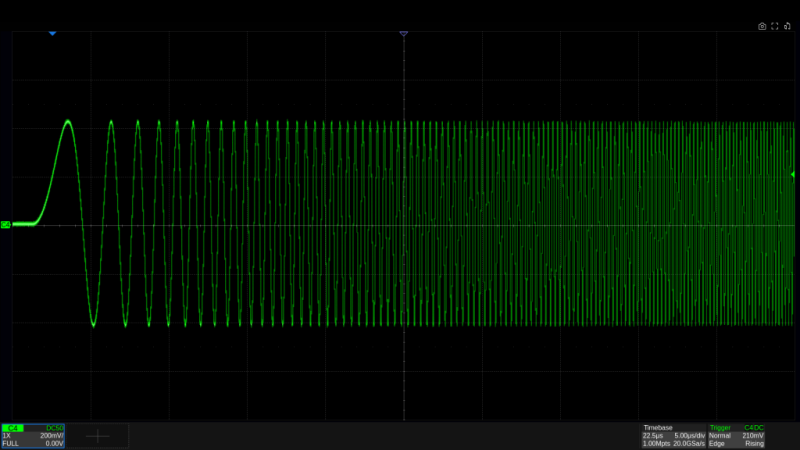

Adds multi-tone (OFDM, intermodulation) and linear-FM chirp generation for radar, sonar and frequency-response test.

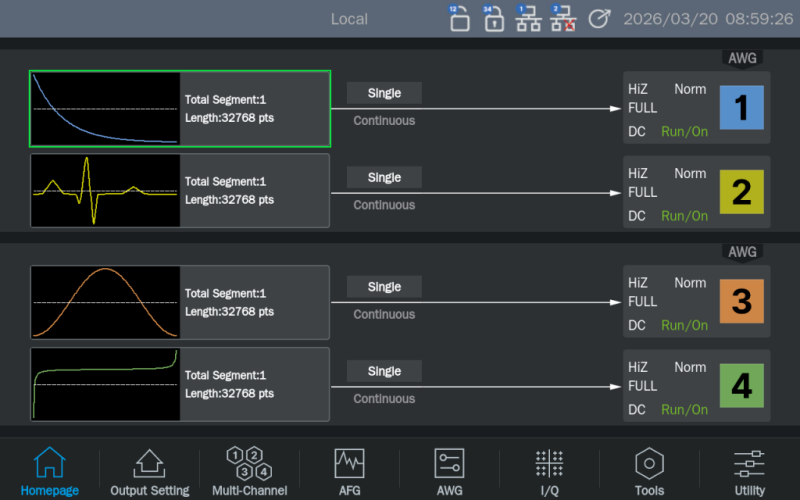

Expands arbitrary memory to the full 4 Gpts per channel for long sequences and complex protocol frames.

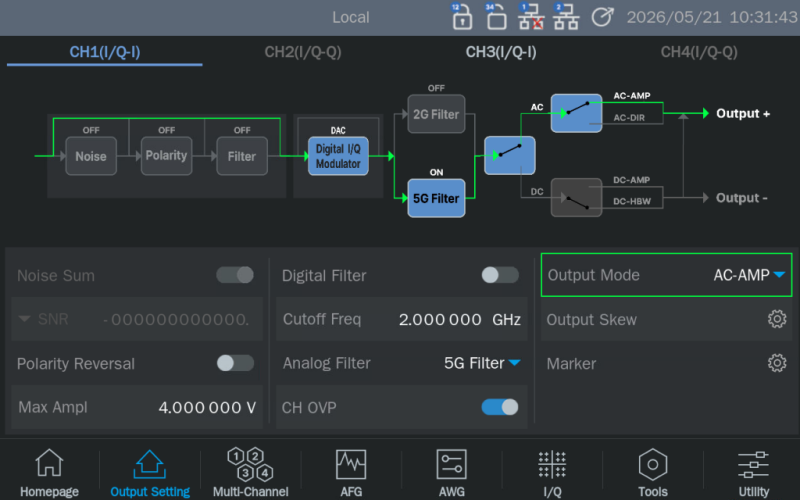

Enables the AC-AMP output path — up to ~2 Vpp, 10 MHz–2 GHz, for RF signals needing higher amplitude.

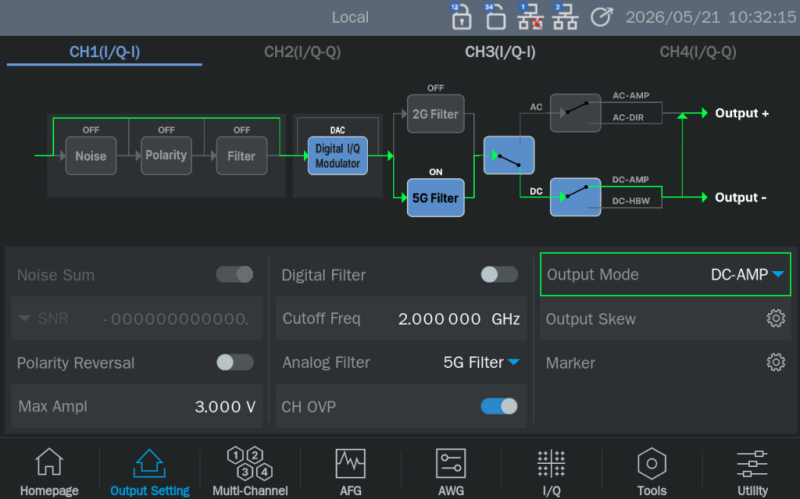

Enables the DC-AMP output path — up to 1.5 Vpp, DC–2 GHz, for large-amplitude signals with DC content.

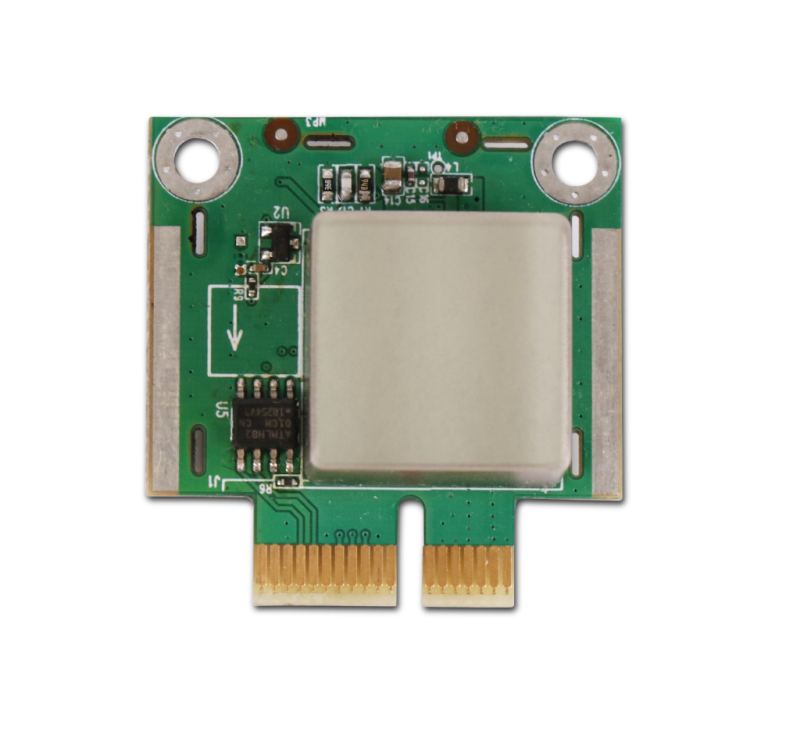

Higher-accuracy 10 MHz OCXO timebase module for tighter frequency accuracy and multi-instrument locking.

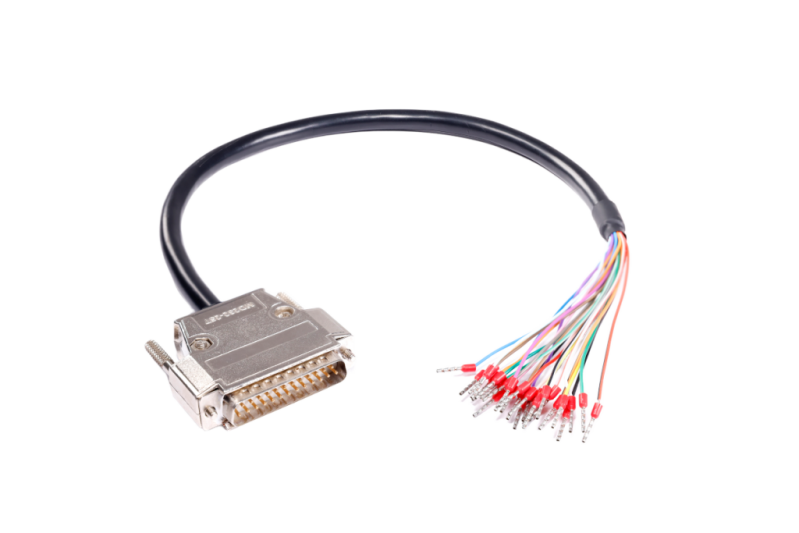

Connects the rear dynamic-control port for external, real-time control of signal parameters.
USB-to-GPIB (IEEE-488) interface adapter for programmatic control in automated test racks.
Specifications
- Max output frequency
- 5 GHz (IQ mode, 12 GSa/s) · 4 GHz (IQ, 10 GSa/s)
- Max sine (AFG / AWG)
- 2 GHz
- Output channels
- 2
- Output connector
- SMA, 50 Ω
- Output modes
- DC-HBW · DC-AMP · AC-DIR · AC-AMP
- Max amplitude
- ~2 Vpp (AC-AMP) · 1.5 Vpp (DC-AMP)
- Sample rate
- 10 GSa/s (AFG/AWG & IQ) · 12 GSa/s (IQ mode)
- AWG data rate
- 100 Sa/s – 5 GSa/s
- Vertical resolution
- 16-bit
- Arbitrary memory
- 2 Gpts/ch · up to 4 Gpts/ch (option)
- Sequencing
- 512 scenarios · 4096 sequences · 16 384 segments
- Markers
- 2 per channel (hardware, adjustable)
- IQ modulation bandwidth
- up to 2 GHz (10 GSa/s) · 1.6 GHz (12 GSa/s)
- Analog / digital mod.
- AM, DSB-SC, FM, PM, PWM, ASK, FSK, PSK
- IQ / vector
- ASK, PSK, QAM, FSK, MSK, OFDM, multi-tone
- Symbol rate
- 500 Symb/s – 2 GSymb/s
- Protocol libraries
- Bluetooth, IoT, LTE FDD/TDD, 5G NR, 802.11ax/be
- PRBS
- PRBS3–32 · 20 Mbps – 1.25 Gbps
- Reference clock
- 10 MHz OCXO, standard · ±100 ppb (±1 Hz) initial accuracy
- Phase noise @10 kHz
- −140 dBc/Hz @100 MHz · −108 dBc/Hz @4 GHz
- Display
- 7-inch capacitive touchscreen
- Interfaces
- USB Host · USB Device · LAN; USB-GPIB (optional)
- Dimensions (W×H×D)
- 426 × 132.5 × 468 mm
- Software
- SigIQPro · EasyIQ · EasyWaveX · web control
