SDS-5000X-CANFD Decode license key
Siglent SDS-5000X-CANFD is a CAN FD trigger and decode — nominal rate to 1 Mbps, data phase to 10 Mbps option for the SDS5000X
SDS-5000X-CANFD — CAN FD trigger & decode
CAN FD trigger and decode — nominal rate to 1 Mbps, data phase to 10 Mbps.
Supplied as a licence key issued against the instrument's serial number. There is no hardware to fit and nothing to return: the code is entered in the instrument's own menu and the function is available immediately, on the instrument you already own.
What this option does
What it does

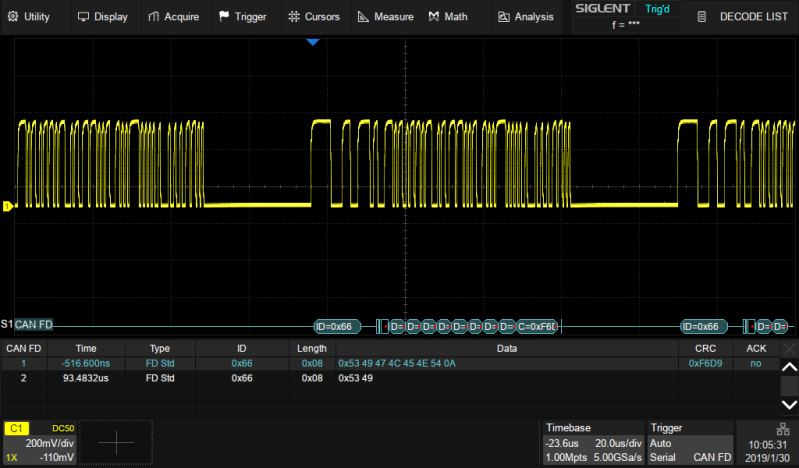

Triggers on frame start, remote frame, ID, ID plus data, or error, and decodes CAN FD with nominal bit rates from 10 kbps to 1 Mbps and data-phase rates from 500 kbps to 10 Mbps, or custom rates, from the analogue channels or the SPL2016’s digital channels.
What you use it for
Automotive and industrial networks, where a fault usually lives in the relationship between the bus traffic and the analogue behaviour of the network, not in either alone.
In practice
An ECU intermittently drops off the bus under load. Triggering on an error frame captures the moment it happens, with the supply rail on another channel sagging at the same instant — a power problem, not a protocol one.
Trigger and decode details
From the SDS5000X data sheet.
| Trigger types | Start, Remote, ID, ID + Data, Error |
| Nominal bit rate | 10 kbps to 1 Mbps, or custom |
| Data-phase bit rate | 500 kbps to 10 Mbps, or custom |
| Decode from | Analogue channels C1–C4 or SPL2016 digital channels D0–D15 |
| Decoders at once | 2, full duplex |
| Standard on every SDS5000X | I²C, SPI, UART, CAN, LIN — no key needed |
Compatibility
The option runs on every SDS5000X model, at every bandwidth and channel count.
| Channels | 350 MHz | 500 MHz | 1 GHz |
|---|---|---|---|
| 4-channel | Compatible | Compatible | Compatible |
| 2-channel | SDS5032X (no longer made) Compatible | SDS5052X (no longer made) Compatible | SDS5102X (no longer made) Compatible |
The 2-channel SDS5032X, SDS5052X and SDS5102X are no longer made; their keys remain available. The SDS5000X HD is a different series with its own option keys.
Related options and accessories
Questions about SDS-5000X-CANFD
Can I decode from the SPL2016 logic probe?
Yes. CAN FD decodes from the analogue channels or from the SPL2016’s 16 digital channels.
Which protocols are already included?
I²C, SPI, UART, CAN and LIN trigger and decode are standard on every SDS5000X. CAN FD, FlexRay, I²S, MIL-STD-1553B and SENT are trigger-and-decode keys; CAN XL, Manchester, ARINC 429 and SpaceWire are decode-only keys. Two decoders run at the same time.
How is the licence delivered?
Supplied as a licence key issued against the instrument's serial number. There is no hardware to fit and nothing to return: the code is entered in the instrument's own menu and the function is available immediately, on the instrument you already own. Add the instrument’s serial number to your order, or send it to us afterwards — the key is issued against it.
Can I return a licence?
Software licences and activation keys are delivered electronically and are excluded from the 14-day EU return right once the key has been issued. If you are unsure which key you need, ask us first — with your serial number we can confirm it.
Not sure this is the right key?
Send us your serial number and what you want to measure. We will confirm the exact option before you order.
