Siglent SNA5004A 9 kHz ~ 4.5 GHz Vector Network Analyzer

€12,700.00
Siglent SNA5004A 9 kHz ~ 4.5 GHz Vector Network Analyzer
NEW

The SIGLENT VNA5004A is the 9 kHz ~ 4.5 GHz Vector Network Analyzer with support for 4 ports scattering-parameter, differential-parameter, and time-domain parameter measurements.

The Siglent SNA5004A 9 kHz - 4.5 GHz VNA is a effective instrument for determining the Q-factor, bandwidth and insertion loss of a filter, It features impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal / insertion adjustments. The SNA5004A hase five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Model                        SNA5002A          SNA5012A          SNA5004A        SNA5014A

Frequency range       9 kHz- 4.5 GHz    9 kHz- 8.5 GHz     9 kHz- 4.5 GHz    9 kHz- 8.5 GHz


SNA Multi-window display:

Enhanced Time-Domain analysis(TDR)

Features

  • Frequency range: 9 kHz - 4.5 GHz
  • Frequency resolution: 1 Hz
  • Level resolution: 0.05 dB
  • Range of IFBW: 10 Hz~3 MHz
  • Setting range of output level: -55 dBm ~ +10 dBm
  • Dynamic range: 125 dB
  • Types of calibration: Response calibration, Enhanced Response calibration, Full-one port
    calibration, Full-two port calibration, Full-three port calibration, Full-four port
    calibration, TRL calibration
  • Types of measurement: Scattering-parameter measurement, differential-parameter measurement,
    receiver measurement, time-domain parameter analysis, limit test, ripple test,
    impedance conversion, fixture simulation, adapter removal/insertion
  • Support Bias-Tees
  • Interface: LAN, USB Device, USB Host(USB-GPIB)
  • Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-
  • 11/Socket/Telnet/WebServer
  • 12.1-inch touch screen
  • Video output: HDMI

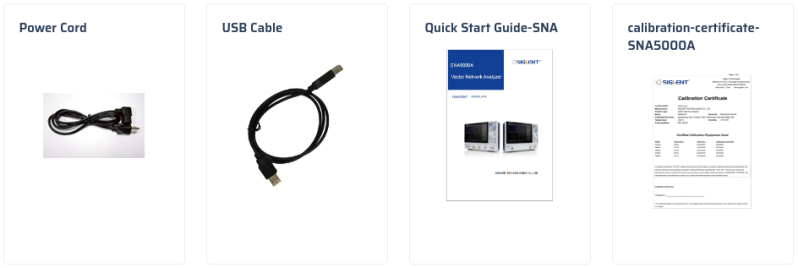

Standard Accessories

  • Quick-start
  • Power-cable
  • USB-cable
  • Calibration-certificate

Optional Accessories

SNA5000A Data Sheet
PDF – 2,0 MB 18 downloads
