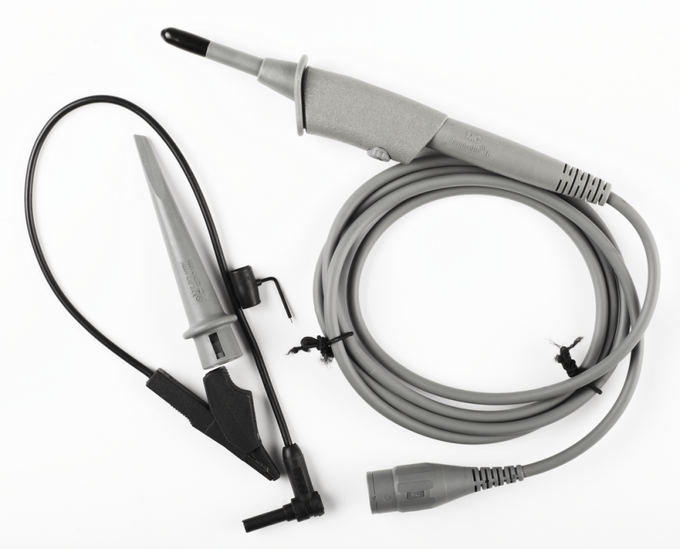

Siglent PB925 250 MHz Oscilloscope Probe
Siglent PB925 10X CAT II 1000V, CAT III 600V, 250M-bandwidth, SHS1000 handheld oscilloscope option
250 MHz passive probe, 600 V CAT III
The PB925 is the safety-rated probe of the passive range: 600 V CAT III and 1000 V CAT II, where every other passive probe here stops at 300 or 400 V CAT II. It is the probe supplied with the SHS1000 handheld oscilloscopes, and the one to take into a cabinet.
Bandwidth is 250 MHz at a fixed 10X with 16 pF at the tip. That capacitance is higher than the bench-oriented probes here, which is the trade the insulation and creepage distances demand — a CAT III probe is physically a different object from a CAT II one, not the same probe with a different label.
Worth knowing
The category matters as much as the voltage. CAT III describes distribution-level transient energy, not just a higher number of volts — a probe rated 1000 V CAT II is not safe on a 1000 V CAT III circuit. Match the category to where you are probing first. For floating or mains-referenced nodes, no passive probe is appropriate; use a differential probe.
Key specifications
- 600 V CAT III · 1000 V CAT II — the highest rating of any passive probe here
- Bandwidth 250 MHz
- Fixed 10X attenuation
- 10 MΩ input impedance
- 16 pF input capacitance
- Compensation range 10–35 pF
- Supplied with the SHS1000 handheld oscilloscopes
- 120 cm cable · 55 g
Application examples
Field service and installation work
Distribution boards, fixed installations and three-phase equipment, where the transient energy behind the voltage is what the category rating describes.
Handheld oscilloscope work
The matching probe for the SHS1000 series, and the sensible spare to carry with one.
Any bench measurement near mains
Where a 300 V CAT II probe is not the right tool and a differential probe is more than the job needs.
Specifications
| Attenuation rate | 10X (fixed) |
|---|---|
| Bandwidth | 250 MHz |
| Input impedance | 10 MΩ |
| Input capacitance | 16 pF |
| Compensation range | 10 pF – 35 pF |
| Input voltage | 600 V CAT III · 1000 V CAT II |
| Operating temperature | 0 °C to +50 °C |
| Cable length | 120 cm |
| Weight | 55 g |
| Supplied with | SHS1000 series handheld oscilloscopes |
From the SIGLENT Probe Data Sheet. Errors and omissions excepted.
